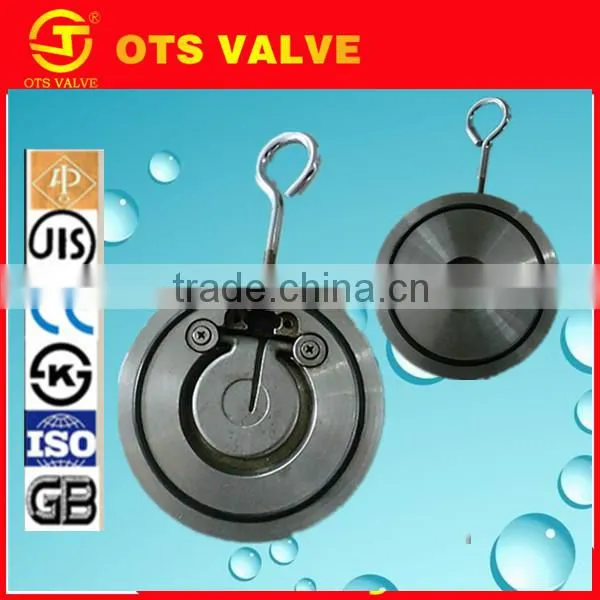

CV-DS004 Standard and Nonstandard 3 Inch Wafer Type Single Disc Swing Check Valve

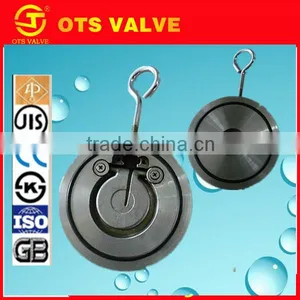

CV-DS004 Standard and Nonstandard 3 Inch Wafer Type Single Disc Swing Check Valve thumbnail-1
CV-DS004 Standard and Nonstandard 3 Inch Wafer Type Single Disc Swing Check Valve photo-1
US$ 0.65 - 1,500 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Tianjin OTS Valve Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Check
Pressure Low Pressure
Power Other, Automatic
Material Casting
Temperature of Media Medium Temperature
Media Other, Fresh water;Sewage;Sea Water;Air;Steam;Food;Medicine;Oils;Acids;etc.
Port Size DN50-DN600mm
Place of Origin Tianjin, China
Model Number DH77X
Brand Name OTS
:
Product Description



          standard and nonstandard 3 inch wafer type single disc swing check valve

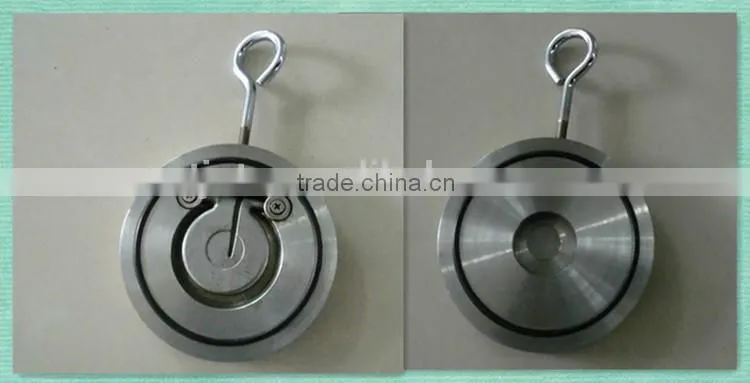

Description of wafer type single disc swing check valve:



The wafer type single disc swing check valve with circular clack which is one of ultrathin check valve. Compare with the traditional check valves,the new ones open/close angle is big,the circulation is fine,rotates is swiftly,structure is compact,external form is beautiful,weight is light,assembles conveniently. There are two type of this wafer check valve,spring type and without spring type.Without spring type only can be used in the stable working conditions.The valve can be used in the filed that assembling space is limited,such as petrochemical industry,water supply system and metallurgy industry etc.





CV-DS004 standard and nonstandard 3 inch wafer type single disc swing check valve

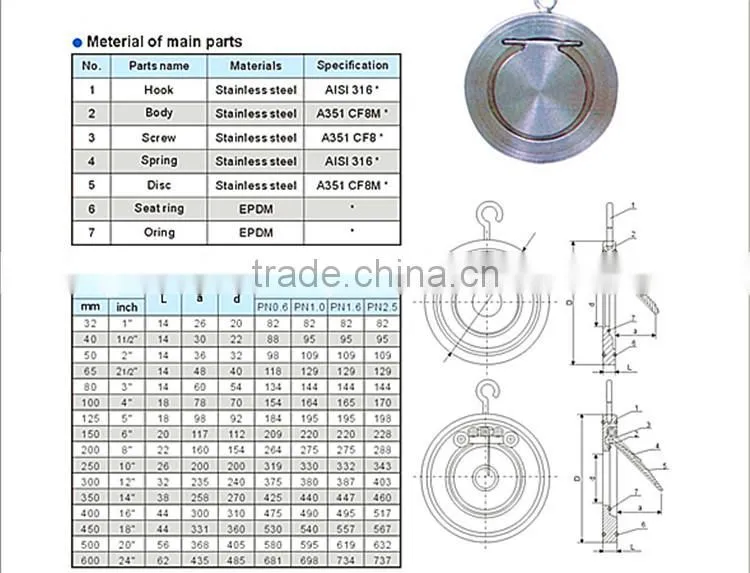

Technical data of   wafer type single disc swing check valve:



Nominal diameter DN(mm):32(1”)~600(24”)

Nominal pressure PN(MPa):0.6~2.5

Flange drilling:EN1092,PN6.10,16,25

Inspection and test:API598

Suitable mediums:Fresh water,sewage,sea water ,air,stem,food,medicine,oil,acids,etc.

Working temperature:-23~93°C



 CV-DS004 standard and nonstandard 3 inch wafer type single disc swing check valve







Features of wafer type single disc swing  check valve:



Our company’s wafer type duo check valves are small in size,light in weight,compact in structure,easy in maintenance. On the other hand,two torsion springs are used edcerting on each of the pair valve plates,which close the plates,which close the plates quickly and automaticall.





 CV-DS004 standard and nonstandard 3 inch wafer type single disc swing check valve













Packaging & Shipping



.



  Packaging of wafer type single disc swing    valve:

1.First,putting the valve into a plastic bag.

2.Second,putting the plastic bag into a wooden box.



 CV-DS004 standard and nonstandard 3 inch wafer type single disc swing check valve





 Company Information







Company Information



Tianjin OTS Valve Manufacturing Co., Ltd., established during the period of China’s reform specializes in all kinds of industrial butterfly valves with 13340 square meters including 8600 square meters work-shop. Fixed assets of RMB20 million as well as some advanced processing equipments, among all 120 staffs (including 15 technicians). As a professional pneumatic valve manufacturer, we can provide strong ability of design, processing, assembling and testing for all Butterfly Valves. Further,  as a professional pneumatic valve manufacturer, we are rich in the experience of producing butterfly valves over 10 years, all of the butterfly valves we produced keep up to the advanced standard home and aboard.





CV-DS004 standard and nonstandard 3 inch wafer type single disc swing check valve





 .






Our Services





Our service tips :

1. Customer always firs,customer satisfaction is our goal.

2.  18 months of quality assurance, let customers buy at ease.

3.  We are the real factory sales, we will provide you the best quality products with reasonable price .





If you have any inquiry or any problems about the products, please feel free to contact me, and I am pleased to supply service for you:



CV-DS004 standard and nonstandard 3 inch wafer type single disc swing check valve
