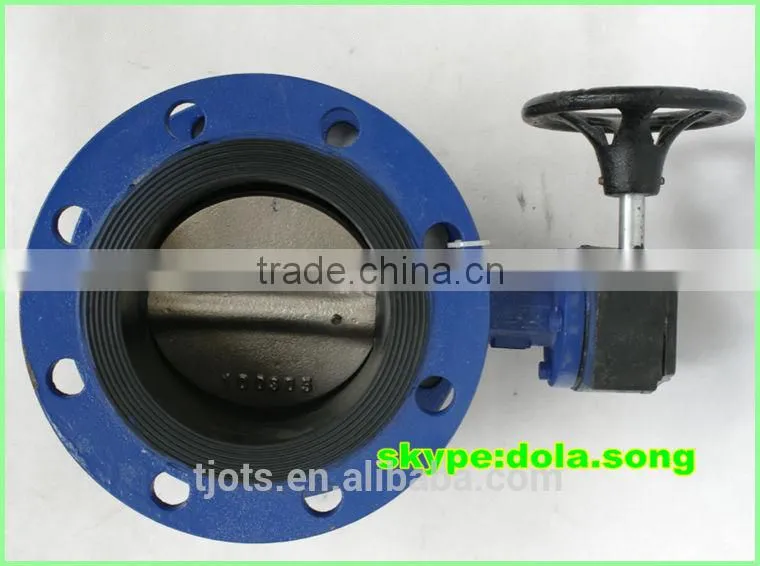

API/EN/CE/JIS/KS worm gear flange butterfly valve
Description of flange butterfly valve:
Flange butterfly valve has simple structure, small volume, light weight, only by a few parts.And only need to rotate 90 ° can rapid opening and closing, simple operation, at the same time, the valve has good flow control characteristics.The butterfly valve butterfly plate installed on the diameter of the pipe direction.Cylindrical channels in butterfly valve body, disc disc around the axis of rotation, rotation Angle for 0 ° ~ 90 °, rotate to 90 °, the valve is fully open.Flange butterfly valve in the fully open position, the butterfly plate thickness is medium flows through the body when the only resistance, thus produced by the valve pressure drop is small, it has good flow control characteristics.Butterfly valves have a seal and metal seal two kinds of seal type.Elastic sealing valve, sealing ring can be embedded in the body or attached to the butterfly plate peripheral.
Technical data of water valve:
Nominal diameter:DN50~1200mm
Design standards:API609/EN/CE/JIS/KS
Installation platform:ISO 5211
Length of the structure:API609,EN5581~20 series etc.
Flange standards:DIN2501,PN1.0MPa,PN1.6MPa
Testing standards:API598
Features of water valve:
1.Small in size and light in weight. East instllation and mintenance .it can be mounted wherever nedded.
2.Simple and compact construction ,quick 90 degrees on -off operation
minimnzed operating torque energy saving
3.Flow curve tending to straight line.Excellent regulation performance
4.Long service life.standing the tens of thousands opening /closing operations
5.Bubbless-tight sealing with no leakage under the pressure test
6.Wide selection of materials, applicable for various mdeium
Our certifications:
Quality Management System Certification
---CE 0038 Certification
---ISO 9001: 2008 Certification
---PED Certification
---SHA Certification
---60055802 Certification
---KS Certification
---TS Certification
Packaging of flange butterfly valve:
1.First,putting the valve into a plastic bag.
2.Second, fixed the board on the plastic.
3.Last,putting the plastic bag into a wooden box.
.
Company Information:
Tianjin Ots Valve Manufacturering Co., Ltd., a jointed company, established during the time of China Reform and Open to the World. specializing in all kinds industrial butterfly valves with 13340 meters, including 8600m work shop, fixed finance of RBM 200 millions as well as some advanced design, processing, assembling and testing for all butterfly valves. Further we are rich in the experience of producing butterfly valves over more than 10 years, all of the butterfly valves we produced come up to the advanced standard home and abroad.
.
Our service tips :
1. Customer always firs,customer satisfaction is our goal.
2. 18 months of quality assurance, let customers buy at ease.
3. We are the real factory sales, we will provide you the best quality products with reasonable price .
If you have any inquiry or any problems about the products, please feel free to contact me, and I am pleased to supply service for you:
