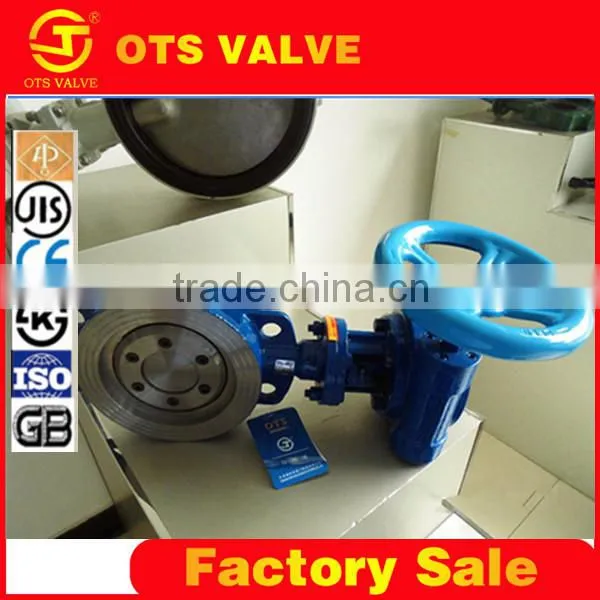

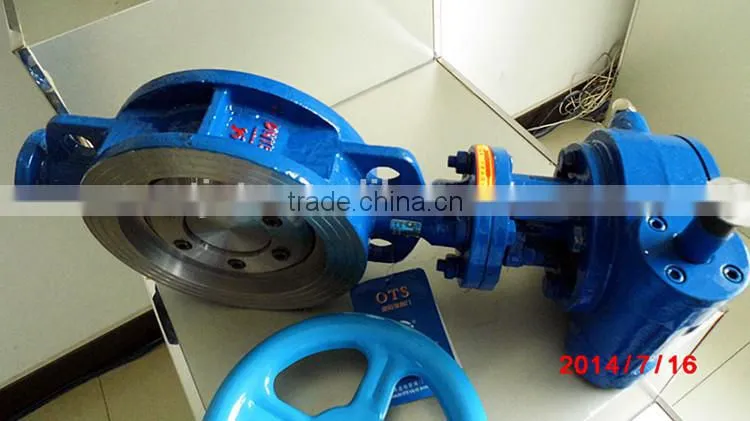

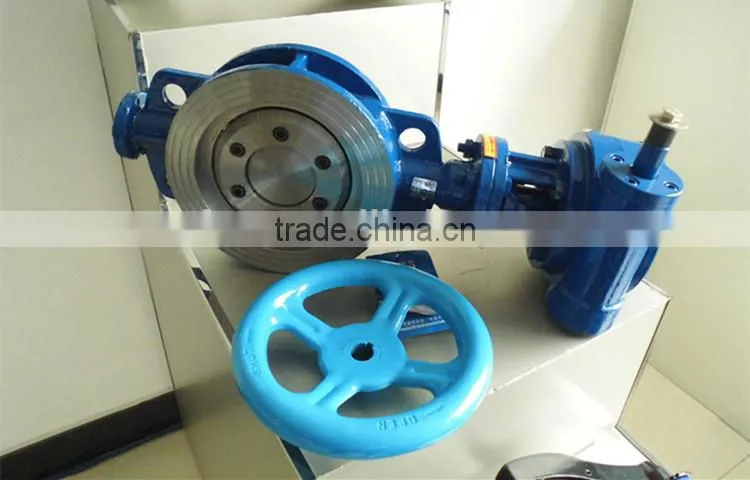

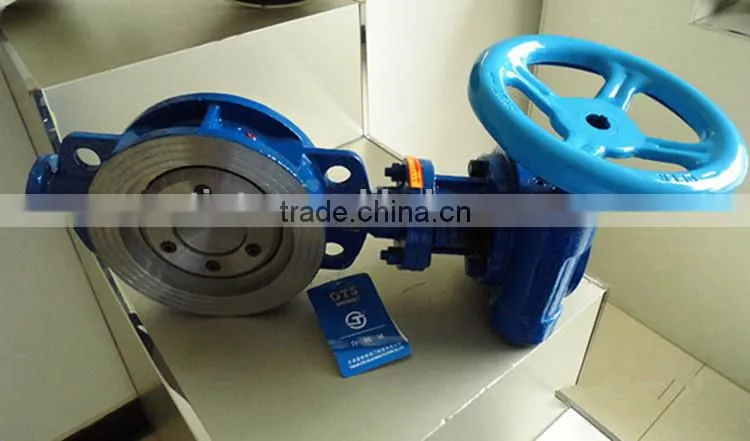

standard and nonstandard wafer type hard sealing butterfly valve
Description of wafer type hard sealing butterfly vale :
This wafer type hard sealing flange butterfly valve is composed of body, disc, gasket, operating device etc. The structure design according to principle of new processing, new processing technology of flexible seal and hard & soft multiple layers seal, when the butterfly valve operation, it can reduce the twisting force, reach to the function of saving labor and energy. Thereby ensure holistically antisepsis, high temperature-resistant, wearable reliability of valve.
Technical Data of wafer type hard sealing butterfly valve:
Design standard; GB/T12238-1989; JB/T8527-1997; API609-2004
Structure length; GB/T12221-1989; GB/T15188.2-1994; API609-2004
Pressure test; GB/T13927-1992; JB/T9092-1999; API598-2004
Flanges comply; GB/T9113-2000; ASME B16.5-2003
Features of wafer type hard sealing butterfly valve:
1. the unique structure, the Small and lightweight, flexible, labor-saving and convenient;
2.Reliable sealing can be achieved by the gas seal without leakage;
3 Flow curve tending to straight line the accommodative best;
4.a wide range of applications such as: water, steam, oil, air, gas and other media can be used;
5.the application of different temperature and pressure below 6.4MPa grade, corrosion-resistant and other media pipeline.
.
Packaging of wafer type hard sealing butterfly valve:
1.First,putting the valve into a plastic bag.
2.Second,putting the plastic bag into a wooden box.
Company introduction
Tianjin Ots Valve Manufacturing Co.,Ltd, A jointed company, which is one of the valve producers in tianjin, among these valve proucers OTS specialized in all kinds of industrial butterfly valves, it has 13 years experiences in producing valves. It with fix assets of RMB 20 millions as well as some advanced processing equipments, with 120 staffs, 15 technicians, We can provide strong ability of design, processing ,assembling and testing from all butterfly valves.
Our service tips :
1. Customer always firs,customer satisfaction is our goal.
2. 18 months of quality assurance, let customers buy at ease.
3. We are the real factory sales, we will provide you the best quality products with reasonable price .
If you have any inquiry or any problems about the products, please feel free to contact me, and I am pleased to supply service for you:
