Product Details
| Place of Origin | Guangdong, China | Brand Name | SMTSEC | |
| Model Number | SIP-960P | Type | IP Camera | |
| Sensor | CMOS | Technology | NetWork |
Product Description

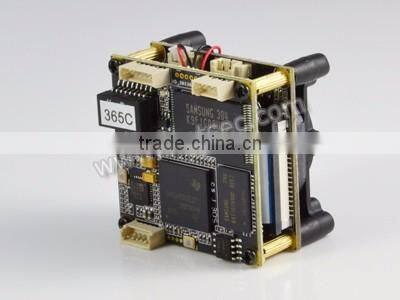

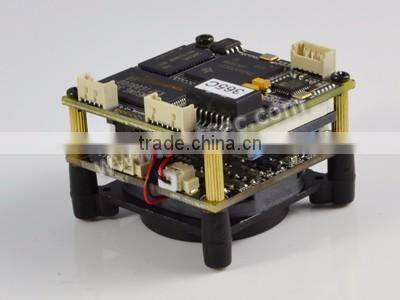

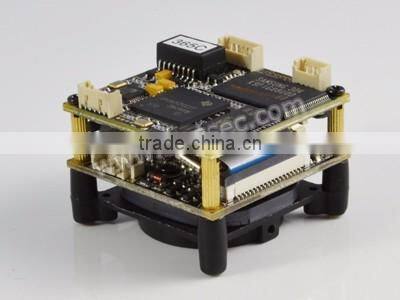

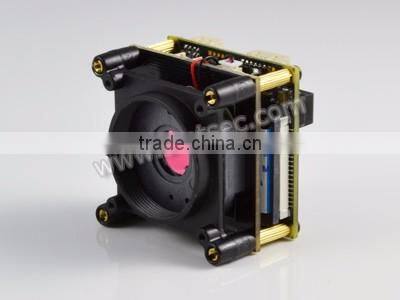

1/3" AR0130 1.3MP 960P/720P IP Camera Module CCTV security IPC USB IP board camera (SIP-960P)
> 960p HD IP Camera
> 1.3 mp SONY CMOS
> Support IR-CUT filter
> H.264, TI Davinci DSP 32 dual-core
> 1280X960(25fps)
> Color 0.1Lux/F1.2,B/W 0.01 Lux/F1.2
> Client software, Support ONVIF,NVR Storage
> android and iphone mobile phone view
| Model | SIP-960P |
| Camera Type | Low illumination HD 960P/720P IP Camera Module |
| Camera | |
| Image Sensor | 1/3" AR0130 1.3MP progressive CMOS sensor |
| DSP | TI Davinci DSP 32 dual-core,pure hardware compression |
| Day/Night | Auto |
| IR-Cut | Support |
| Min.Illumination | Color 0.1Lux/F1.2,B/W 0.01 Lux/F1.2 |
| Electronic Shutter | 1/50(1/60)s-1/100,000s |
| Lens Mount | CS Mount (Optional M12) |
| Digital Zoom | Support |
| Video/Audio | |
| Compression Standard | H.264 |
| Compression Technology | Dual-stream compression technology |
| System Structure | Pure hardware compression, watchdog,32M FLASH,128M DDR2; |
| Video Frames | Real-time PAL 25fps,NTSC 30fps 1-30fps Adjustable |
| Bitrate | 500~8000Kbps Adjustable |
| Bitrate Control | CBR/VBR/CVBR |
| Image | |
| Resolution | Main Stream:1920X1080 10fps, 1280X960 25fps, 1280X720 25fps, D1 |
| Sub Stream:D1,VGA,640X360,480X270,CIF,QCIF | |
| Parameter Settings | Brightness, contrast, chroma saturation,Backlight Control,Mirror |
| Privacy Mask | Support 4 area can be set |
| Image Capture | Image quality , capture speed |
| Time and Title | Transparency, Time position, Time Format, Title Content |
| Network | |
| Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP |
| Onvif | Support Onvif |
| User Permission | Multi-user Classification Management |
| Phone monitoring | Support iPhone and android Mobile phone view |
| SDK | Provide open SDK |
| Alarm | Support Motion Detection, Linkage Alarm, Linkage recording, Video Loss Alarm |
| Interface | |
| USB Interface | 1 USB interface ( Max: 64G) , front storage supported |
| Video Output | 1CH Video output, Support CVBS standard, PAL/NTSC Optional |
| Network Interface | 1 RJ45 Ethernet interface, 10/100M adaptation |
| Other | |
| Work Environment | -10°C- +60°C;≤95% |
| Power Supply | DC 12V |
| Product Size | 38X38X38mm |
| Package Size | 50X50X50mm |
| Net Weight | 0.2kg |
