Home > Products > CCTV IP and Analog Camera Module > 1/3" SONY IMX222 2.0MP HD 1080P CCTV IP Camera Module Audio RS485 Hisilicon CCTV Security USB IP Board Camera (SIP-1080JA)

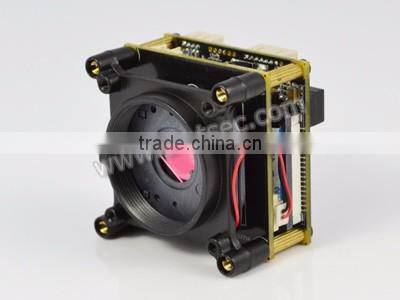

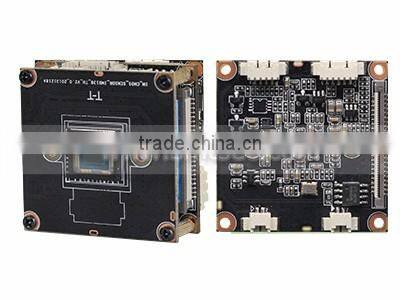

1/3" SONY IMX222 2.0MP HD 1080P CCTV IP Camera Module Audio RS485 Hisilicon CCTV Security USB IP Board Camera (SIP-1080JA)
US$ 49 - 53
/ Piece
1 Piece(Min. Order)
- Shenzhen China
- Money Gram Credit Card
You May Like
-
Auto IRIS Starlight IMX323 IP Camera Module CCTV 2mp 1080P IPC PCB Main Board Hi3516D,Hisilicon Sony Sensor Audio (SIP-E323DI)
-
Auto IRIS Starlight 1080P IP Camera Module With TF Slot 2.0MP SONY IMX323 Hi3516D CCTV Network IP PCB Board Camera (SIP-E323DIT)
-
Motorized Zoom WDR 2.0MP 1080P IP Camera Module With TF Card Slot CCTV Security PCB Board Audio USB RS485 H.265 (SIP-E229DMT)
-
Motorized Zoom Auto IRIS WDR IP Board Camera Module PCB 1080P 2.0MP Panasonic Sensor Hi3516A Network Audio USB (SIP-E229AM)
-
WDR 2.0MP 1080P H.265 IP Camera Module SONY IMX290 Hi3516D Audio USB RS485 BNC Video Out CCTV Security Board Camera (SIP-E290D)
-
Audio 4.0MP IP Camera Module 2688x1520 H.265 OV4689 3516D ONVIF Network Security PCB Board Camera DIY Function (SIP-E4689D)
Product Details
| Place of Origin | Guangdong, China | Brand Name | SMTSEC | |
| Model Number | SIP-1080JA | Type | Digital Camera | |
| Sensor | CMOS | Technology | Infrared |
Product Description
Product Description
1/3" SONY IMX222 2.0MP HD 1080P CCTV IP Camera Module Audio RS485 Hisilicon CCTV security USB IP Board Camera (SIP-1080JA)
> HD 1080p IP Camera
> 1/3" SONY CMOS
> Low illumination
> H.264 Dual-stream
> AVI video format
> 1920X1080 25fps
> Support Audio,RS485,alarm
> Mobile phone view,Support ONVIF
> Client software,Support NVR Storage
| Model | SIP-1080JA |
| Camera Type | Low illumination HD 1080P IP Camera Module |
| Camera | |
| Image Sensor | 1/3" SONY IMX222 2.0MP progressive CMOS sensor |
| DSP | Hisilicon DSP 32 dual-core,pure hardware compression |
| Day/Night | Auto |
| IR-Cut | Support |
| Min.Illumination | Color 0.1Lux/F1.2,B/W 0.01 Lux/F1.2 |
| Electronic Shutter | 1/50(1/60)s-1/100,000s |
| Lens Mount | CS Mount |
| Digital Zoom | Support |
| Video/Audio | |
| Compression Standard | H.264 |
| Compression Technology | Dual-stream compression technology |
| System Structure | Pure hardware compression, watchdog,32M FLASH,128M DDR2; |
| Video Frames | Real-time PAL 25fps,NTSC 30fps 1-30fps Adjustable |
| Bitrate | 500~8000Kbps Adjustable |
| Bitrate Control | CBR/VBR/CVBR |
| Audio Coding Standard | AAC / G 7.11 |
| Audio Volume | 0-100 Adjustable |
| Image | |
| Resolution | Main Stream:1920X1080 25fps 1280X720 25fps |
| Sub Stream:D1,VGA,640X360,480X270,CIF,QCIF | |
| Parameter Settings | Brightness, contrast, chroma saturation,Backlight Control,Mirror |
| Privacy Mask | Support 4 area can be set |
| Image Capture | Image quality , capture speed |
| Time and Title | Transparency, Time position, Time Format, Title Content |
| Network | |
| Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP |
| Onvif | Support Onvif |
| User Permission | Multi-user Classification Management |
| Phone monitoring | Support iPhone and android Mobile phone view |
| SDK | Provide open SDK |
| Alarm | Support Motion Detection, Linkage Alarm, Linkage recording, Video Loss Alarm |
| Interface | |
| Audio Input | 1CH input |
| Audio output | 1CH output |
| USB Interface | 1 USB interface ( Max: 64G) , front storage supported |
| Video Output | 1CH Video output, Support CVBS standard, PAL/NTSC Optional |
| Network Interface | 1 RJ45 Ethernet interface, 10/100M adaptation |
| RS485 Interface | 1 CH RS485 interface |
| Alarm Interface | 1CH input/1CH output |
| Other | |
| Work Environment | -10°C- +60°C;≤95% |
| Power Supply | DC 12V |
| Product Size | 38X38X38mm |
| Package Size | 50X50X50mm |
| Net Weight | 0.2kg |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
