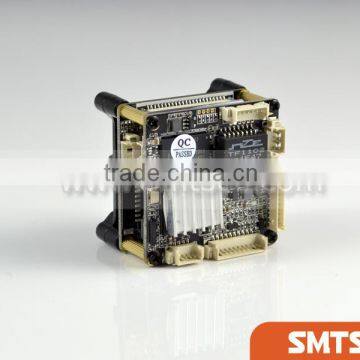

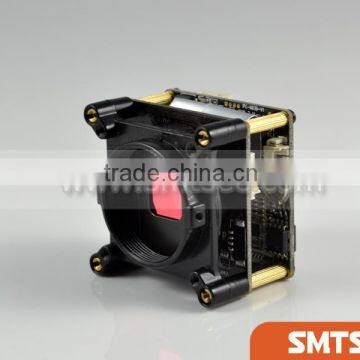

Auto IRIS Starlight IMX323 IP Camera Module CCTV 2mp 1080P IPC PCB Main Board Hi3516D,Hisilicon Sony sensor Audio (SIP-E323DI)

Name: Auto IRIS Starlight IMX323 IP Camera Module CCTV 2mp 1080P IPC PCB Main Board Hi3516D,Hisilicon Sony sensor Audio (SIP-E323DI)
Brand: SMTSEC
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shenzhen China
Payment Terms:T/T D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	SMTSEC	Model Number:	SIP-E323DI
Type:	IP Camera	Sensor:	CMOS	Technology:	NetWork
Special Features:	Other, Board camera

Product Description

Auto IRIS Starlight IMX323 IP Camera Module CCTV 2mp 1080P IPC PCB Main Board Hi3516D,Hisilicon Sony sensor Audio (SIP-E323DI)

Model	SIP-E323DI
Camera Type	H.265 2.0mp Starlight IP Camera Module
Camera
Image Sensor	1/2.9" 2.19M-Effective Pixel Color CMOS Image Sensor IMX323
DSP	Hisilicon 3516D
Effective Pixels	1985 (H) X 1105 (V) Approx. 2.19M pixels
Scanning System	Progressive
Electronic Shutter Speed	Auto (1/25 ~ 1/10000s)
Min. Illumination	Color 0.1Lux/F1.2,B/W 0.01Lux/F1.2
S/N Ratio	≥50dB(AGC OFF)
Lens Mount	Default CS Mount (Optional M12 Mount)
IR-Cut	Support
Day/Night	Auto(ICR)/Color/B/W
WDR	Digital WDR >80db
White Balance	Auto
Gain Control	Auto
Noise Reduction	3D-DNR
Privacy Masking	Up to 4 areas
Image parameter	Bir/Con/Hue/Sat/Acu/Gamma
Image basic	Mirror/Flip/LSC/CTB/AntiFogging
Video/Audio
Video Compression	H.264/MJPEG/H.265
Resolution	Main Stream:1920X1080,1280X720 (1~25/30fps)
Resolution	Sub Stream:D1,VGA,CIF, (1~25/30fps)
Frame Rate	1~25/30fps
Bit Rate	30Kbps~16Mbps, support VBR, CBR
Text Overlay	Channel, Date & Time, Bit Rate
Audio Compression	G.726/G.711A/G.711U
Audio bit rate	16000
Sampling rate	8K
Network
Data Storage	Video record, Picture format
Trigger	Manual, Automatic(motion detection, alarm, schedule, cycle )
Alarm data transmission	FTP, E-mail, Browser, CMS
Protocol	TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP
ONVIF	ONVIF V2.4
Max. User Access	8 users, IE, Google, Firefox
Smart Phone	iPhone, iPad, Android
Interface
Audio	1ch input, 1ch output
BNC Video out	1ch
RS485	1ch
USB	1ch (Support 32G USB flash/WIFI/3G Extended)
Alarm	1ch input
Reset	Support
Auto IRIS	Supprot DC drive auto iris lens
General
Power Supply	DC12V
Power Consumption	<3W
Working Environment	-20°C~+55°C , Less than 90% RH
Product Size	38 x 38 x 25mm
Net Weight	0.2kg

Packaging & Shipping

China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)

•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.

Our Services

•All products have been checked and packaged in good condition before dispatch.

•All products have 1 year warranty.
