Home > Products > CCTV IP and Analog Camera Module > WDR 1080P IP Camera Module PCB Board 2.0MP Panasonic CMOS Hisilicon 3516A ONVIF P2P Network Aodio USB TF Card Slot (SIP-E229AT)

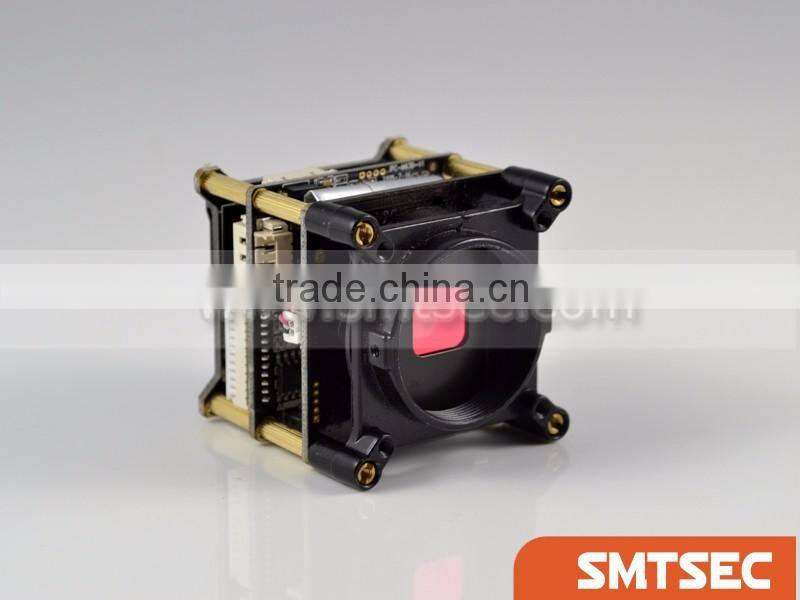

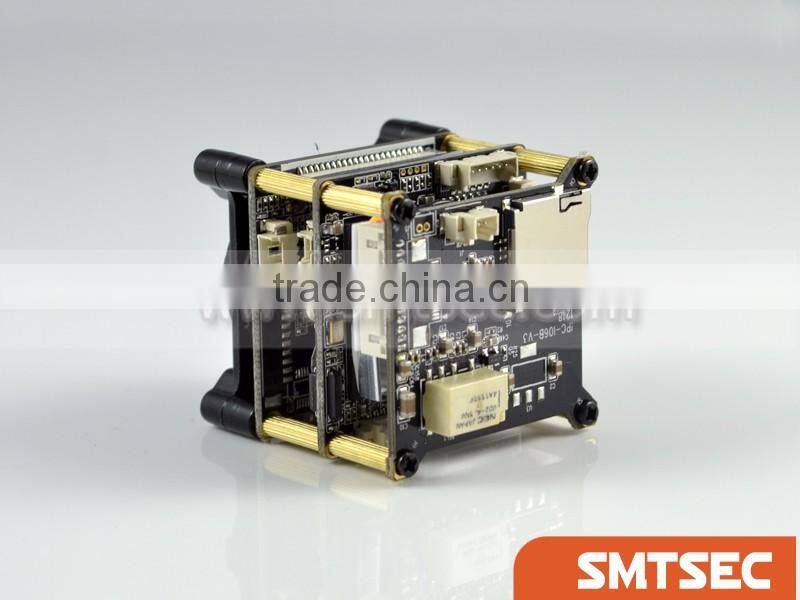

WDR 1080P IP Camera Module PCB Board 2.0MP Panasonic CMOS Hisilicon 3516A ONVIF P2P Network Aodio USB TF Card Slot (SIP-E229AT)
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen China
- T/T D/P D/A Money Gram Credit Card PayPal
You May Like
-
1/1.8" SONY IMX178 Hisilicon 3516D 5.0MP H.265 5.0mp IP Camera Module PCB Board CCTV Security USB Audio RS485 Alarm (SIP-E178D)
-
2.0MP 1080P IP Camera Module Single Board H.265 OV2718 Hi3516D USB, Audio, P2P ONVIF CCTV Security PCB Board (SIP-E2718D)
-
Motorized Zoom Auto IRIS WDR 2.0MP 1080P H.265 IP Camera Module SONY IMX290 Hi3516D Security Network Board Camera (SIP-E290DM)
-
Starlight H.265 IP Camera Module PCB Board 2.0MP 1080P SONY IMX291 Sensor Hi3516D DSP USB Audio RS485 (SIP-E291D)
-
1/3" Panasonic CMOS WDR H.264/H.265 IP Camera Module Board PCB 1080P 2.0MP Hi3516A DSP ONVIF Security DIY Functions (SIP-E229A)
-
1/3" AR0130 1.3MP 960P/720P IP Camera Module CCTV Security IPC USB IP Board Camera (SIP-960P)
Product Details
| Place of Origin | Guangdong, China | Brand Name | SMTSEC | |
| Model Number | SIP-E229AT | Type | IP Camera | |
| Sensor | CMOS | Technology | NetWork | |
| Special Features | Other, Board camera |
Product Description
Product Description
WDR 1080P IP Camera Module PCB Board 2.0MP Panasonic CMOS Hisilicon 3516A ONVIF P2P Network Aodio USB TF card slot (SIP-E229AT)
| Model | SIP-E229AT |
| Camera Type | H.265 2.0mp WDR IP Camera Module |
| Camera | |
| Image Sensor | 1/3" 2.12 megapixels Progressive Panasonic 34229 CMOS |
| DSP | Hisilicon 3516A |
| Effective Pixels | 1944 (H) x 1092 (V) Approx. 2.1M pixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | Color 0.05Lux/F1.2,B/W 0.01Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| Lens Mount | Default CS Mount (Optional M12 Mount) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | WDR >120db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| Video/Audio | |
| Video Compression | H.264/MJPEG/H.265 |
| Resolution | Main Stream:1920X1080, 1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps (H.264 non-WDR 60fps) |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| ONVIF | ONVIF V2.4 |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | iPhone, iPad, Android |
| Interface | |
| Audio | 1ch input, 1ch output |
| BNC Video out | 1ch |
| RS485 | 1ch |
| USB | 1ch (Support 32G USB flash/WIFI/3G Extended) |
| Alarm | 1ch input |
| Reset | Support |
| Memory Card | Support Max 32G TF Card |
| General | |
| Power Supply | DC12V |
| Power Consumption | <3W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Product Size | 38 x 38 x 25mm |
| Net Weight | 0.2kg |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
Contact Us
- Shenzhen Smart Technology Co., Ltd.
- Contact nameDaniel Guo Chat Now
- Phone86-755-83262100
- Address6A45, Pacific Security Market, Huaqiangbei, Shenzhen, Guangdong, China
