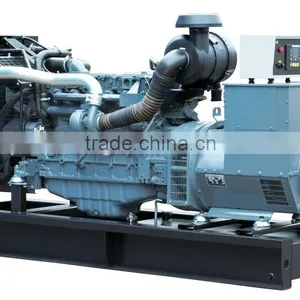

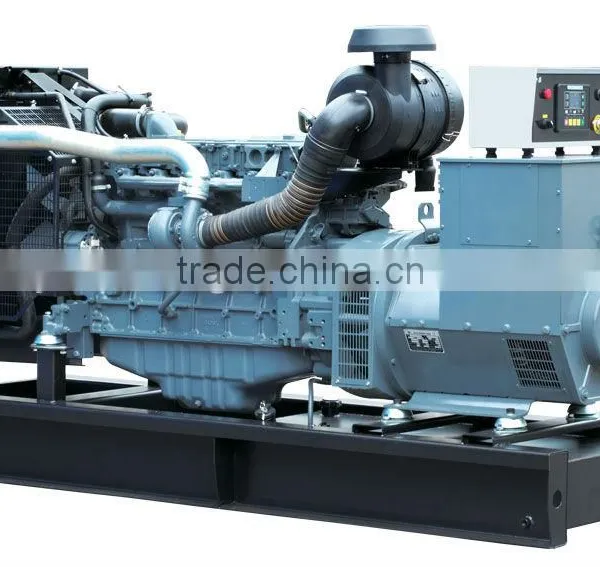

Deutz Diesel Generating Set

Deutz Diesel Generating Set thumbnail-1
Deutz Diesel Generating Set photo-1
Negotiable MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Deutz
Model Number:
WT-DBF
Contact Supplier Request Quote Chat Now
Fuan Wangwantong Electric Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Deutz
Model Number WT-DBF
Output Type AC Three Phase
Speed 1500rpm
Frequency 50HZ
Rated Power 60kva-600kva
Rated Voltage 380,400,415,220v, etc.

Specifications

1. powerd by Deutz diesel engines
2. genset output: 60kva to 600kva
3. 1000 hours warranty

Deutz Diesel Genset



WANTONG BF Series



Technical Data



Gensets Technical Data of Diesel Engine(50hz/1500rpm) Alternator(50hz/1500rpm)
Model Gensets power(KW/KVA) Engine
model		 Engine power(kw) Fuel
consumption		 Cylinder
*Bore*Stroke
(Qty*mm*mm)		 Asp. WANTONG Leroy somer Stamford mecc alte Rated
Voltage
(V)
Prime Prime Standby g/kw.h L/h
WT-D66BF 48 60 BF4M2012 54 60 192 12.2 4×101×126 TC WT-224E LSA42.3L9  UCI224E EC032-2L/4  380,
400,
415,
440,
200,
208,
220,
etc.
WT-D88BF 64 80 BF4M2012C 71 75 192 16.04 4×101×126 TC WT-224F LSA43.2 L8 UCI224G EC034-1S/4
WT-D124BF 90 113 BF4M1013EC 97 102 193 22.02 4×108×130 TC WT-274DS LSA44.2VS45 UCI274C EC034-2S/4
WT-D138BF 100 125 BF4M1013FC 117 129 193 26.57 4×108×130 TC WT-274E LSA44.2S7 UCI274D EC034-1L/4
WT-D179BF 130 163 BF6M1013EC 146 153 192 32.98 6×108×130 TC WT-274F LSA44.2L12    UCI274F EC034-2L/4
WT-D206BF 150 188 BF6M1013ECP 166 183 196 38.28 6×108×130 TC WT-274G LSA46.2M3 UCI274G EC038-1SN
WT-D220BF 160 200 BF6M1013FCP1 183 201 196 42.2 6×108×130 TC WT-274H LSA46.2M5 UCI274H EC038-2SN
WT-D248BF 180 225 BF6M1015-GA 208 231 208 50.9 6×132×145 TC WT-274J LSA46.2L6 UCI274J EC038-3SN
WT-D275BF 200 250 BF6M1015C-G1A 228 250 205 54.99 6×132×145 TC WT-274K LSA46.2L6 UCI274K EC038-1LN
WT-D330BF 240 300 BF6M1015C-G2A 256 285 203 61.14 6×132×145 TC WT-C4D LSA46.2L9 HCI444D EC038-2LN
WT-D350BF 260 325 BF6M1015C-G3A 282 314 205 68.01 6×132×145 TC WT-C4ES LSA46.2VL12 HCI444ES EC038-3LN
WT-D385BF 280 350 BF6M1015C-G4 310 345 212 77.32 6×132×145 TC WT-C4E LSA47.2VS1 HCI444E EC038-3LN
WT-D415BF 300 375 BF6M1015CP-G 328 365 215 82.96 6×132×145 TC WT-C4FS LSA47.2VS2 HCI444FS EC040-1S
WT-D480BF 350 438 BF8M1015C-G1A 388 418 206 94.03 8×132×145 TC WT-C5C LSA47.2S5 HCI544C EC040-2S
WT-D500BF 360 450 BF8M1015C-G2 403 440 215 101.94 8×132×145 TC WT-C5C LSA47.2S5 HCI544C EC040-2S
WT-D523BF 380 475 BF8M1015C-G1A 413 459 215 104.46 8×132×145 TC WT-C5D LSA47.2M7 HCI544C EC040-3S
WT-D550BF 400 500 BF8M1015CP-G2 448 490 220 115.95 8×132×145 TC WT-C5D LSA47.2M7 HCI544C EC040-3S
WT-D550BF 400 500 BF8M1015CP-G3 458 509 220 118.54 8×132×145 TC WT-C5ES LSA47.2M8 HCI544D EC040-1L
WT-D620BF 450 563 BF8M1015CP-G4 482 530 220 124.75 8×132×145 TC WT-C5ES LSA47.2M8 HCI544D EC040-1L
WT-D660BF 480 600 BF8M1015CP-G5 500 560 220 129.41 8×132×145 TC WT-C5E    LSA47.2L9 HCI544E EC040-1.5L





Photo of Deutz Diesel Genset



Deutz Diesel Generating Set
