Help CenterDeutz Diesel Generator Set (water Cooled)
Related Products
Specifications
Deutz Diesel Generator Set1. OEM offer
2. Rated output: 24-1600KW
3. CE& ISO9001 approved
4. 12 month warranty

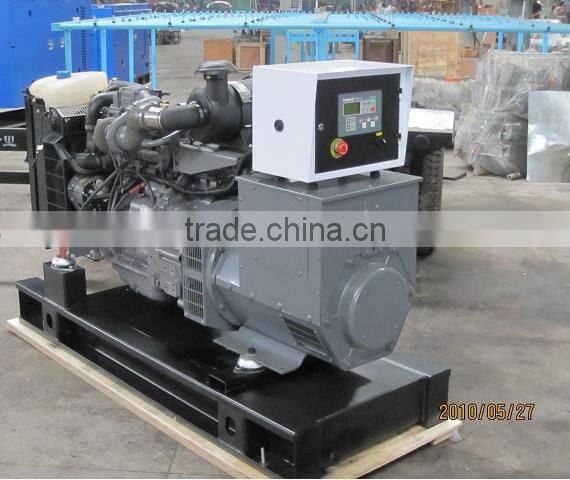

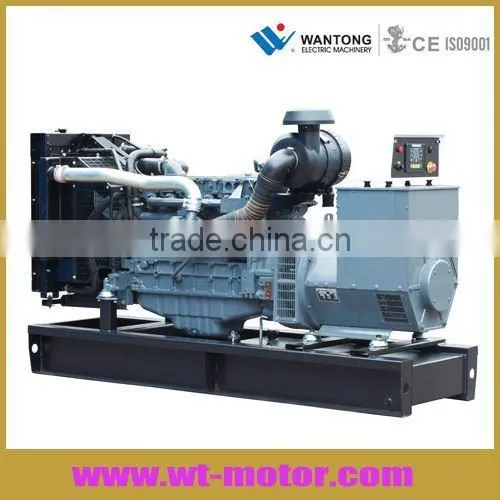

Deutz Diesel Generator Set (Water Cooled)
DEUTZ engine is one of the most famous engines in the world. It gains plenty of users’ trust with its advanced performance. It is four strokes water cooled industrial engine.
It is based on German technique, combined the outstanding feature of compact structure,big power, low fuel consumption, small size,light weight, high Reliability and durability, slight vibration,low noise, convenient using and easy maintenance. Its exhaust emission comes up to EURO 2,3 standards.
Engine can be coupled with WT series A.C.synchronous brushless alternator( new-style designed by ourselves,with update international technology). It can also be matched with STAMFORD,LEORY SOMER, MARATHON alternator according to customers’ demand.
Gensets can be open type or soundproof (silent) type.
Gensets’ electric performance
Gensets compliance with all main standards, such as :GB/T2820,ISO8528,IEC34,VDE0875-N
Prime output power: 24kw-1600 kw(30kva-2000kva)
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Controller system
1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.
2.It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…
