Specifications

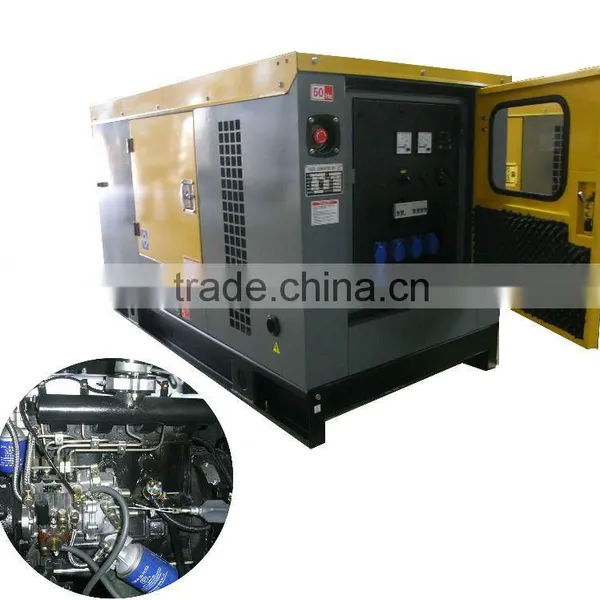

soundproof diesel generator consists ofYANGDONG engine and generator. With low noise,high quality,attractive priceSoundproof generating set feature:
1) Noise level :≤80 dB (7m away from the sets).
2) Soundproof canopy made from special steel sheet, using zinc-Alloy locks and hinges.
3) Two times process of epoxy paint system.
4) Side lockable door easy for maintenance and installation space
5) Emergency stop button mounted externally, and control panel viewing window easily to view status of generating set
6) Exhaust silencing system totally enclosed for operator safety
1. Engine: YANGDONG
2.Alternator
Engine can be coupled with WT series A.C.synchronous brushless alternator( new-style designed by ourselves,with update international technology). It can also be matched with STAMFORD,LEORY SOMER, MARATHON alternator according to customers’ demand.
Gensets’ electric performance
Gensets compliance with all main standards, such as :GB/T2820,ISO8528,IEC34,VDE0875-N
Rated Power: 14kw
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40 centigrade
Relative air humidity: ≤ 90%
Controller system
1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.
2.It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…
Packing:
Wooden case or plywood case
