Specifications
1. with original Gemany MTU engine2. coupled with Stamford, Leory Somer, or WANTONG alternator
Germany MTU Engine Generators
WT-MT series high-power generator sets adopt electronic fuel injection diesel engine produced by world-famous German DAIMLER—CHRYSLER MTU. The history of MTU can be traced back to the 18th century of mechanical times. Now, following its good traditions, MTU comes out top among manufacturers of engines in the world owing to its unexampled advanced technology. The high quality of MTU’s engines is identical with the concept of reliably, advanced technology, high-class performance, environmental consciousness and long service life
1. equiped with excellent MDEC digital management system, It can self-inspection, fault alarm instructions, records storage etc.
2. lowest fuel consumption compare with other engines in the world.( 189g/kw.h least)
3. longer service life compare with other engines in the world, every 30000 accumulated running hours for a periodical maintenance.
4. the exhaust emission completely meet the German TALUFT standard, American CARB and EPA standard, EU-3 standard
Alternator
Engine can be coupled with WT series A.C.synchronous brushless alternator( new-style designed by ourselves,with update international technology). It can also be matched with STAMFORD, LEORY SOMER, or mecc alter or brushless alternators according to customers’ demand.
Gensets can be open type or soundproof (silent) type.
Gensets’ electric performance
Gensets compliance with all main standards,such as :GB/T2820,ISO8528,IEC34,VDE0875-N
Prime output power: 250-2400KW
Rated voltage: 400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50hz
Rated speed: 1500rpm
Excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP22
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40 centigrade
Relative air humidity: ≤ 90%
Controller system
1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.
2.It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation, etc…

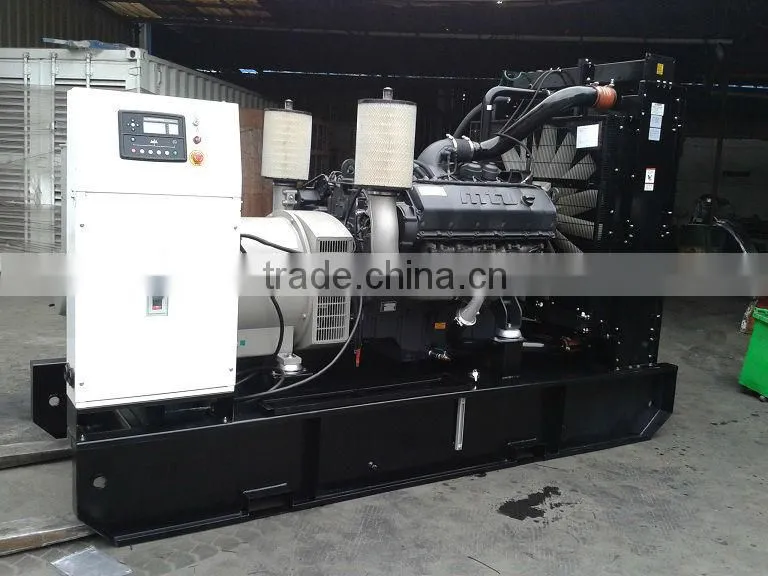

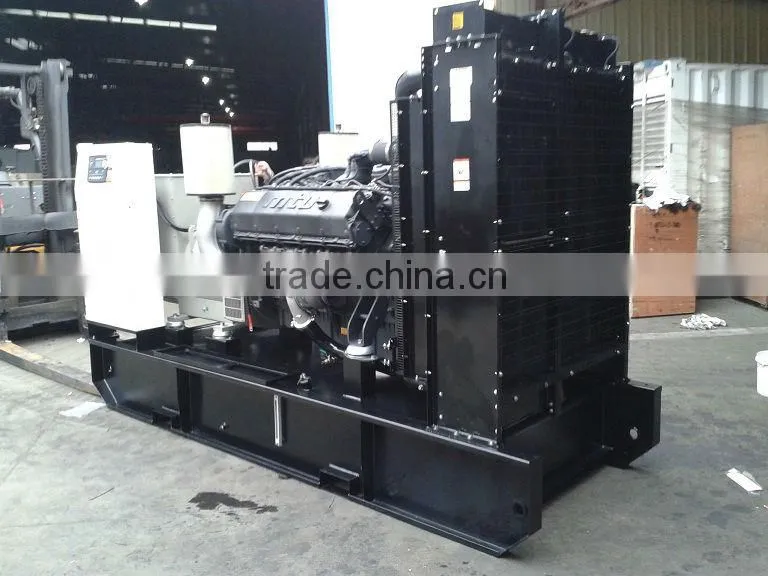

Photos of Germnay MTU Engine Generators
