Help CenterYanmar Diesel Generator Set
Related Products
Specifications
power supplyJapanese diesel engine: Yanmar
genset rated output: 5KW-48KW
low fuel consumption

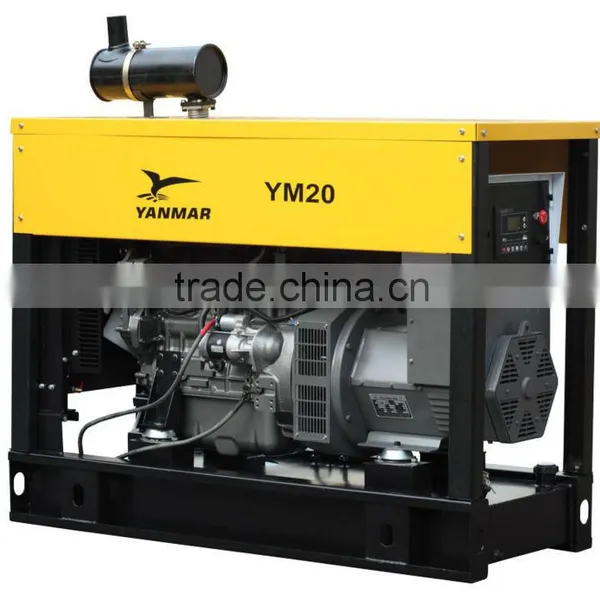

Yanmar Diesel Generator Set
1. Engines
Yanmar diesel engine is with compact size, low emission, low noise and fuel consumption, compact, powerful , long lasting , global warranty and service.
engine model: 3TNM68, 3TNV76, BTNV82A, 3TNV88, 3TNV84T, 4TNV88, 4TNV84T, 4TNV98, 4TNV98T, 4TNV106, 4TNV106T
2. Alternator
WANTONG/Leroy somer/Stamford/ mecc alte for your option.
3. Control system
Engine mounted control panel in a vibration isolated sheet steel enclosure with a hinged lockable door. Deepsea, ComAp, Smartgen controller for your choice.
4. Base frame
The complete generating set is mounted as a whole, on a heavy duty fabricated, welded steel base frame. The base frame incorporates built-in fuel tank and specially designed lifting points.
5. Quality Standards
Our gensets are in accordance with the following Standards: GB/T2820m, ISO8528, IEC34-1, VDE0875-N, GB755, EN60034, BS5000, VDE0530, NEMA MG1-32.
6. Warranty
All equipment is guaranteed for the period of 1000 hours or 12 months. (Warranty will be invalid if customer disobey the requirement of the operation and maintenance in Generator set Technical Manual.)
Parameter
| Gensets | Technical Data of Diesel Engine(50hz/1500rpm) | Alternator(50hz/1500rpm) | ||||||||||
| Model | Gensets power(KW/KVA) | Engine model |
Engine power(kw) | Fuel consumption |
Cylinder *Bore*Stroke (Qty*mm*mm) |
Asp. | WANTONG | Leroy somer | Stamford | |||
| Prime | Prime | Standby | g/kw.h | L/h | ||||||||
| WT-YM7 | 5 | 6 | 3TNM68-GGE | 5.5 | 6.1 | 265 | 1.71 | 3×68×72 | TC | WT-164A | LSA40VS0 | PI044D |
| WT-YM10 | 7.5 | 9 | 3TNV76-GGE | 8.2 | 9 | 258 | 2.49 | 3×76×82 | TC | WT-164B | LSA40VS1 | PI044E |
| WT-YM11 | 8 | 10 | 3TNV82A-GGE | 9.9 | 11 | 245 | 2.85 | 3×82×84 | TC | WT-164C | LSA40VS1 | PI044E |
| WT-YM14 | 10 | 13 | 3TNV88-GGE | 12.2 | 13.2 | 245 | 3.52 | 3×88×90 | TC | WT-164C | LSA40VS2 | PI044F |
| WT-YM17 | 12 | 15 | 3TNV84T-GGE | 14 | 15.8 | 245 | 4.04 | 3×84×90 | TC | WT-164D | LSA40VS3 | PI044G |
| WT-YM19 | 14 | 18 | 4TNV88-GGE | 16.4 | 18 | 245 | 4.73 | 4×88×90 | TC | WT-184ES | LSA40VS4 | PI044H |
| WT-YM22 | 16 | 20 | 4TNV84T-GGE | 19.1 | 21 | 245 | 5.51 | 4×84×90 | TC | WT-184E | LSA40M | PI144D |
| WT-YM33 | 24 | 30 | 4TNV98-GGE | 30.7 | 34.1 | 231 | 8.34 | 4×98×110 | TC | WT-184G | LSA42.3VS3 | PI144G |
| WT-YM47 | 34 | 43 | 4TNV98T-GGE | 37.7 | 41.4 | 222 | 9.85 | 4×98×110 | TC | WT-224C | LSA42.3S5 | PI144K |
| WT-YM55 | 40 | 50 | 4TNV106-GGE | 44.9 | 49.4 | 237.6 | 12.55 | 4×106×125 | TC | WT-224D | LSA42.3M8 | UCI224D |
| WT-YM66 | 48 | 60 | 4TNV106T-GGE | 50.9 | 56 | 220 | 13.17 | 4×106×125 | TC | WT-224E | LSA42.3L9 | UCI224E |

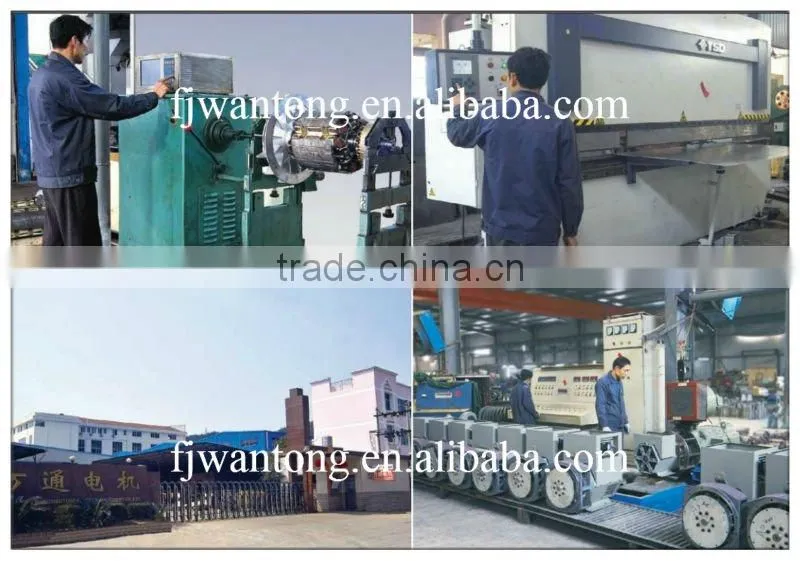

Our Factory
