100KVA Diesel Generator Set Powered by Perkins
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WANTONG
Model Number:
WT-P110
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8kVA to 2250kVA OEM 125kVA Diesel Generator PriceNegotiableMOQ: 1 Set -
Brand New Powered By Perkins 800kva Diesel Generator Set With CE ApprovalNegotiableMOQ: 1 Set
-
Super Silent 100kva Generator Diesel With Perkins EngineNegotiableMOQ: 1 Set
-
Super Silent 275kva Generator Diesel With Perkins EngineNegotiableMOQ: 1 Set
-
Super Silent 135kva Generator Diesel With Perkins EngineNegotiableMOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
WANTONG
Model Number
WT-P110
Output Type
AC Three Phase
Speed
1500/1800rpm
Frequency
50HZ/60HZ
Rated Power
80KW/100KVA
Rated Voltage
400/230V
Rated Current
145A
Product Description
| Overall Dimentions & Weight | |||
| Genset size(mm) (L×W×H) Silent | 2900*1100*1590mm | G.W.(kgs) | 1650 |
| Engine data | Alternator data | ||
| Manufacturer | PERKINS UK | Manufacturer | Leroy somer COMPANY |
| Original | ENGLAND | Original | China |
| Model | 1006TG2A | Model | LSA44.2VS45 |
| Governor type | Mechanical Governor | Capacity(kw) | 84 |
| Speed | 1500r/min | Power factor | 0.8 |
| Prime power(kw) | 91KW/122HP | Efficiency | 90.8% |
| Standby power(kw) | 100KW/134HP | Bearing number | 1 |
| Cylinder No.&Config. | 6 cylinder vertical in line, 4 stroke | Leads number | 12 |
| Replacement | 5.99L | Voltage(V) | 400 |
| Compression ratio | 16.0:1 | Voltage accuracy | ≤±1% |
| Oil capacity(L) | 0.109L | Frequency | 50HZ |
| Electrical system | 12V | Insulation class | H |
| Coolant capacity(inc. radiator)(L) | 27.7 | Protection rate | IP23 |
| Fuel Consump.(100%load)(L/H) | 21.8L/H | Excitation system | Brushless,self-exciting |
| Fuel Consump.(110%load)(L/H) | 24.1L/H | Connection type | "Star" connection |
| Cooling | Water Cooled | ||
| Aspiration | Turbo air- air after cooled | Controller | |
| Bore×Storke | 100mm*127mm | Model of controller | DSE 6020 |
FAQ
Q:What is your MOQ of this item?
A: Sample order is acceptable.
Q: What is the delivery time?
A: As usually, 15-25working days after receiving T/T deposit or L/C . But we will finish order with shorter time for your urgent need.
Q: Is it all right to make customer’s own brand name?
A: We can be your OEM manafacture with your authorization of brand..
Q: What is your company available production capactiy?
A: One 40HQ container can be finished per day. The more quantities, the same delivery time.
Q: What are your payment terms?
A: 30%T/T deposit, 70% balance before shipment or L/C at sight(For container order).
Q: How long is your warranty?
A: One year after receive B/L or 1000 working hours.
Picture of Diesel Generator Set

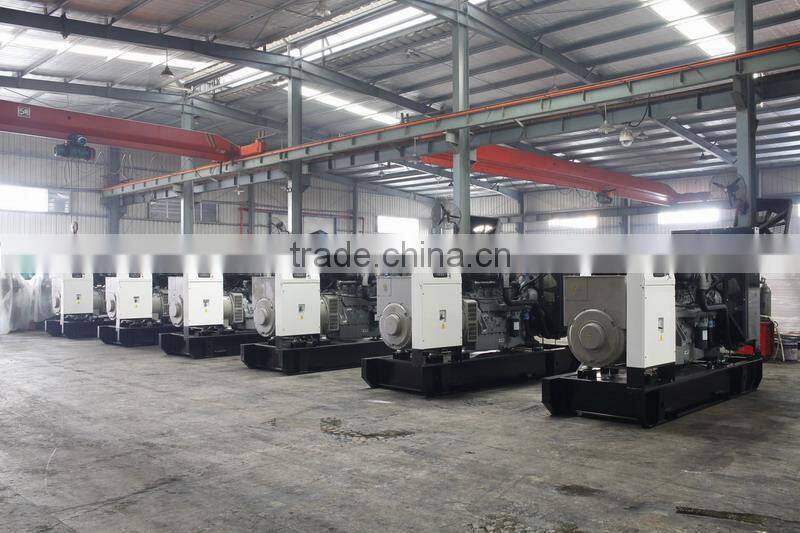

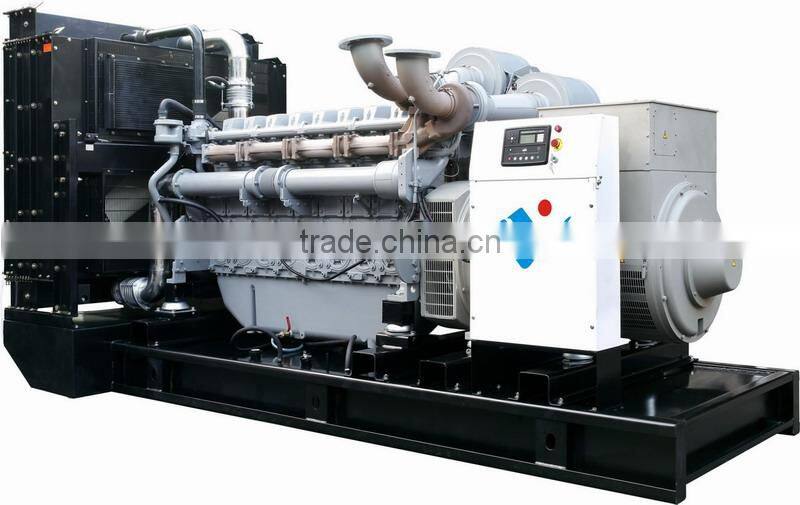

Open type

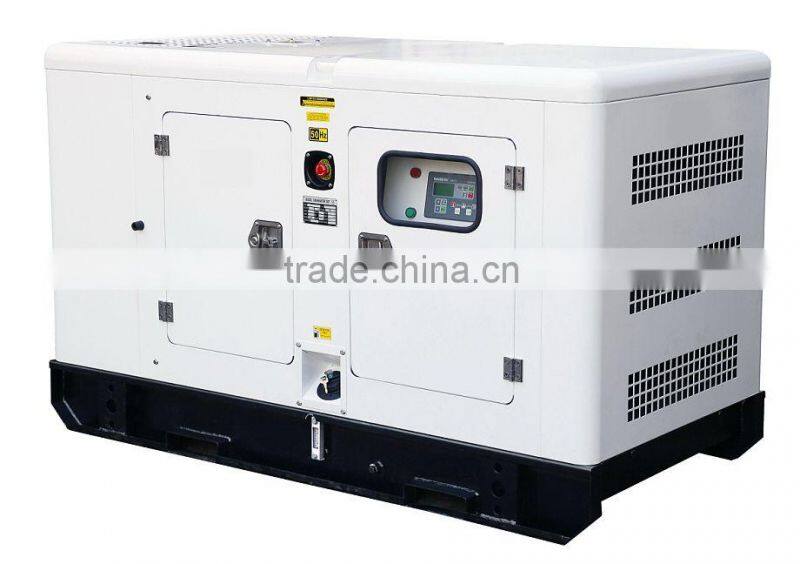

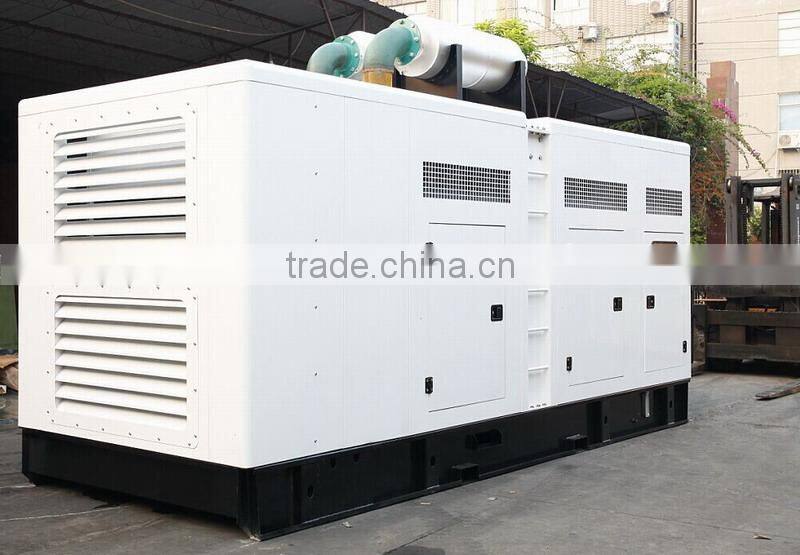

Silent type

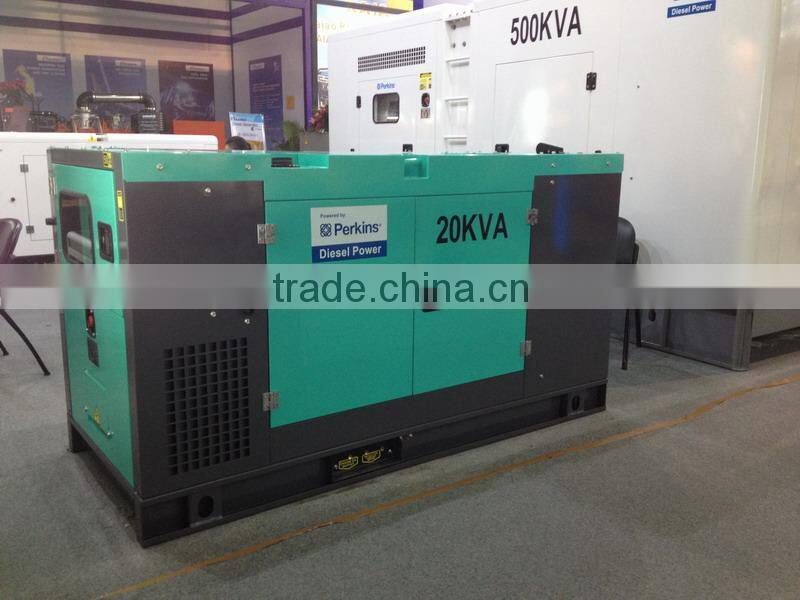

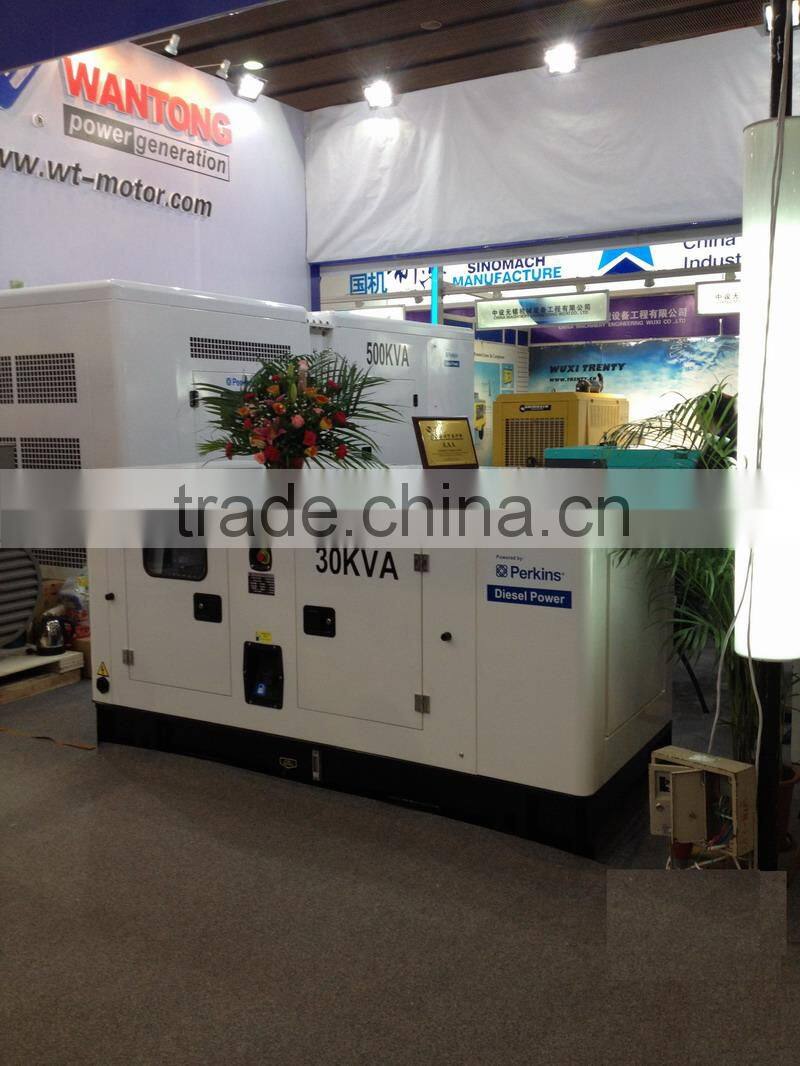

Generator sets in Canton Fair
Company Information

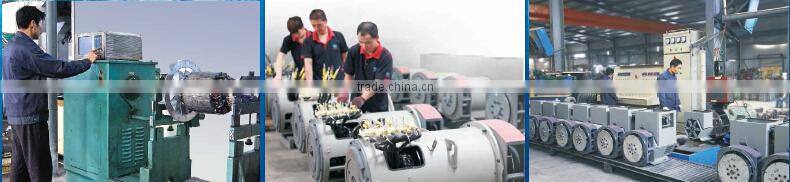

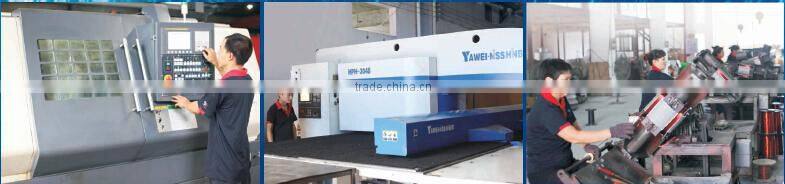

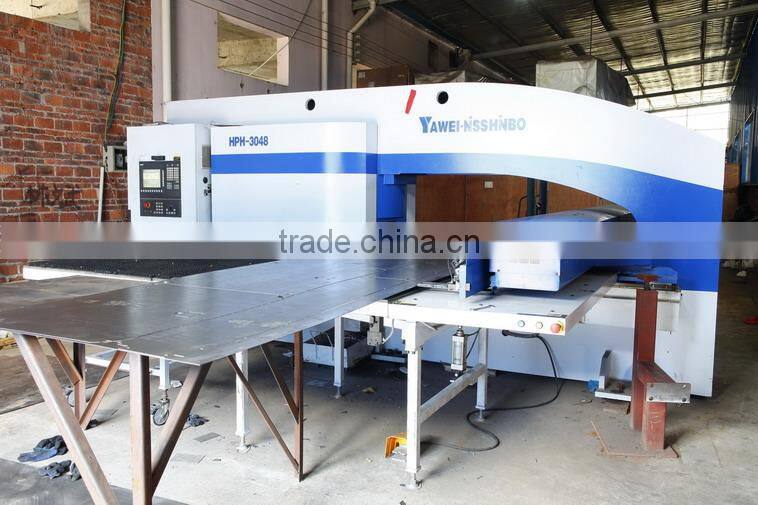

Our Factory
Our OEM Certificates
