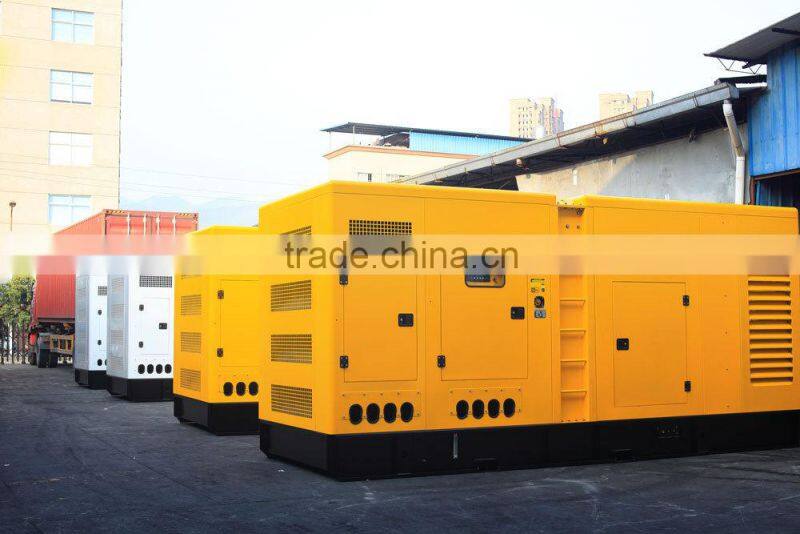

Help CenterBrand New Powered By Perkins 800kva Diesel Generator Set With CE Approval
Related Products
-
Super Silent 100kva Generator Diesel With Perkins EngineNegotiableMOQ: 1 Set -
Super Silent 275kva Generator Diesel With Perkins EngineNegotiableMOQ: 1 Set
-
Super Silent 135kva Generator Diesel With Perkins EngineNegotiableMOQ: 1 Set
-
Super Silent 150kva Generator Diesel With Perkins EngineNegotiableMOQ: 1 Set
-
Super Silent 60kva Generator Diesel With Perkins EngineNegotiableMOQ: 1 Set

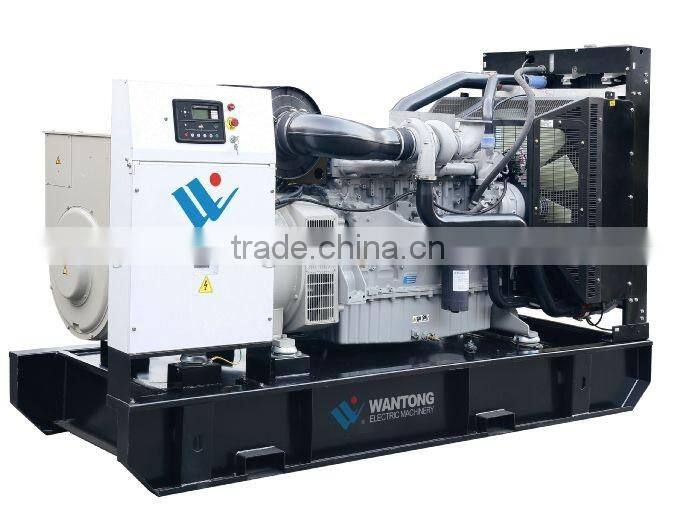

Brand New Powered By Perkins 800kva Diesel Generator Set With CE Approval
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.
Q: Is it ok to make customers’ own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 15-25 days after receiving your L/C or T/T deposit.
SPECIFICATION
| MODEL | WT-P880 | |
| Standby Power (50HZ) | 704KW/880KVA | |
| Prime Power (50HZ) | 640KW/800KVA | |
| ENGINE DATA | ||
| Manufacturer / Model: | Perkins Powered 4006-23TAG3A 4-cycle | |
| Air Intake System: | Turbo, Air-Air Cooling | |
| Fuel System: | PT type fuel pump | |
| Cylinder Arrangement: | 6 in line | |
| Displacement: | 22.92L | |
| Bore and Stroke: | 160*190 mm | |
| Compression Ratio: | 13.6:1 | |
| Rated RPM: | 1500rpm | |
| Max. Standby Power at Rated RPM: | 760KW/1033HP | |
| Governor Type: | Electronic | |
| ALTERNATOR DATA | ||
| Number of Phase: | 3 | |
| Connecting Type: | 3 Phase and 4 Wires, “Y” type connecting | |
| Number of Bearing: | 1 | |
| Power Factor: | 0.8 | |
| Protection Grade: | IP23 | |
| Altitude: | ≤1000m | |
| Exciter Type: | Brushless, self-exciting | |
| Insulation Class, Temperature Rise: | H/H | |
| Telephone Influence Factor (TIF): | <50 | |
| THF: | <2% | |
| Voltage Regulation, Steady State: | ≤±1% | |
| Alternator Capacity: | 810KVA | |
| Alternator Efficiencies: | 94% | |
| Air Cooling Flow: | 1.614m3/s | |

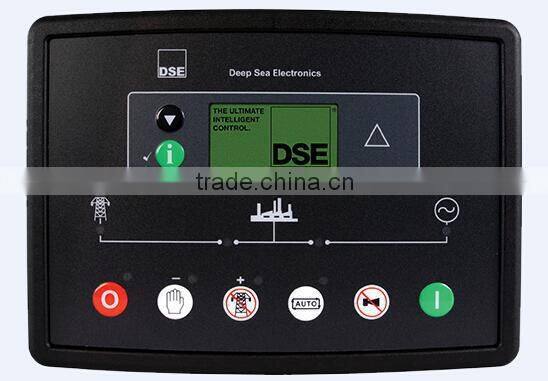

| Standard Control Panel | ||
| |
WT Standard Control Panel uses micro processing technique integrating digital, intelligent and network techniques which can carry out functions including auto start/stop, data measure, alarming. The controller uses LCD display, optional Chinese and English display interface with operation easy and reliable. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability |
|
PACKAGE | |
Pacakge: |
1SET/BULK Package |
Delivery: |
25days after order confirmed |
Payment terms: |
-30% deposit(T/T),balance (70%) to be paid before shipment.(for bulk cargo) -30% deposit(T/T),balance (70%) to be paid after receipt of the B/L copy.(For container order) -L/C at sight. (For container order) |
Warranty: |
1000hours/1year -During the guarantee period, we will supply freely the easy damaged parts for the possible problems except for the incorrect operation. -After expiration, we supply cost spare parts for genset maintenance |
