Home > Computer Products > Industrial Computer & Accessories > Industrial Computer > AMD LX800 Embedded PC104 Board SW-3569A

AMD LX800 Embedded PC104 Board SW-3569A

Name: AMD LX800 Embedded PC104 Board SW-3569A
Brand: sysiware
SKU: 107764335
Availability: InStock

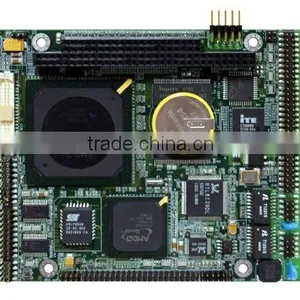

AMD LX800 Embedded PC104 Board SW-3569A thumbnail-1

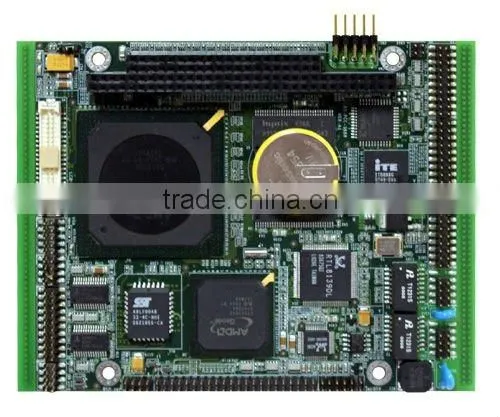

AMD LX800 Embedded PC104 Board SW-3569A photo-1

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Embedded Industrial Motherboard

Brand Name:

sysiware

Model Number:

SW-3569A

Contact Supplier Request Quote Chat Now

Shenzhen Sysiware Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Embedded Industrial Motherboard

Brand Name sysiware

Model Number SW-3569A

Place of Origin Guangdong, China

Specifications

Embedded PC104 board with AMD GEODE LX800 microprocessor, onboard 256MB DDR SDRAM

Product description:

    SW-3569A embedded PC104 board, using the embedded AMD GEODE LX800 microprocessor to onboard 256MBytes of DDR SDRAM, the board has the the one 44PIN/2.0mm standard hard disk interface; a network interface; 4 RS232 standard 9-wire serial port; a standard VGA port, 4 USB, 1 TFT LCD interface, a LVDS interface; AC97 2.0 bus standard; I / O interface; 8-channel TTL inputs, 8 TTL outputs; standard PC/104 interface. Serial port, network interface using anti-EMI design.
      SW-3569A board high integration, small size, full-featured, low power consumption, can be widely used in embedded intelligent devices in power, environmental protection, health care, intelligent transportation, network communications, public transport, etc.

Product Features:

* board embedded AMD GEODE LX800 microprocessor
* Onboard 256MBytes DDR SDRAM
* 2 10/100M LAN, to adapt to the simplicity of network applications
* 4 x USB2.0
* 4 COM ports (standard 9-wire serial port, COM3, COM4 at the same time supports RS485 mode)
* on-board VGA / TFT LCD / LVDS Display Interface
* AC97 2.0 audio bus standard 128 watchdog timer
* single 5V power supply
* are available upon request, to cut some of the features to meet the actual needs of customers

Product Specifications:

Structure        : embedded PC/104 industrial computer motherboard structure
Processor      : embedded AMD GEODE LX800 microprocessor, 128KB cache, clocked at 500MHz
Chipset          : LX800 + CS5536 that makes this
Memory        : Onboard 256MBytes DDR SDRAM
Watchdog Timer: SIO built-in WATCHDOG, 128, 0 ~ 255 seconds to generate the RESET signal interval of 2 seconds
Network          : a REALTEK 8139DL 10/100M Ethernet port
IDE interface   : the one 44PIN/2.0mm standard hard disk interface, the use of DIP long needle reserved welding CF seat space
COM interfaces: four RS232 standard 9-wire serial port, COM3, COM4 to support both RS485 Mode
USB interface: 4 standard USB 2.0 interface, support for USB boot
Display Interface: a standard VGA connector, a TFT LCD interface, a LVDS interface
AUDIO Interface: AC97 2.0 bus standard to support the MIC IN, LINE IN, SPEAK the OUT
I / O interfaces : KB / MS interface, LPT interface
DIO Interface     : 8 TTL inputs, 8 TTL outputs
BIOS                :  Award BIOS    SST FLASH
RTC                : containing CMOS setup data is stored within the southbridge chip support
LED indicators : Power, HDD LED
Bus Interface    : standard PC/104 interface (optional)
Power requirements: AT power connector, single 5V power supply
CE design: serial port, network interface using the anti-EMI design
Printed circuit board: 8 layer
Operating temperature: - 20 °C ~ +70 °C uninterrupted work, low-power CPU without a fan
Relative Humidity: Relative Humidity 5% ~ 95% non-condensing
Size                : in line with the PC/104 standard size, 96mm x 115mm
