Specifications

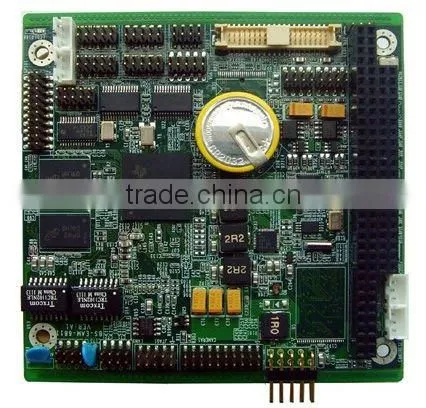

SW-ARM-6811 TI ARM Cortex-A8 600Mhz CPU on board SBC 4USB/AUDIO/4RS232&RS485/2LAN/GPIO/WTD/JTAG/CAN/PC104Product description:
SW-ARM-6811 is a 90mm x 96mm in size, developed a new concept based on high-end ARM-based Cortex-A8 core embedded industrial computer's motherboard. Subsection motherboard adopted the U.S. Texas Instruments (TI) AM3517 ultra-low-power ARM microprocessor, clocked at up to 600MHz, but its maximum power consumption of only 5W. At the same time on-board 256MB DDR2 SDRAM and 256MB of NandFlash is directly build a diskless system. ARM superior ultra-low power performance, making the motherboard uninterrupted steady work in the extreme environment of -40 to 80 degrees Celsius, is compatible with a variety of industrial-grade bus standard is a able to meet the computing needs of medium-speed industrial smart devices The new motherboard.
Industrial applications, design criteria, SW-ARM-6811 high resistance to oxidation leads to the gold-plated patch pin interface mode, panel interface: for example, in addition to the onboard NandFlash can be used as the storage device to boot the system, one of four data SD card socket bits wide, and can also boot LINUX, ANDROID, WINDOWS CE operating system, greatly facilitate the customers with their migrations, and the production of the operating system; 2-way 10/100MB network interface; 4-way RS232 (the COM1, COM2 is also compatible with the 485 mode) industrial-grade serial port; 4-way USB interface; audio output interface; digital video input interface; 16 DIO (digital I / O) interface; 8-layer high-density lead-free board design, serial, network interfaces are anti-EMI. Is particularly worth mentioning that both the standard PC/104 and CAN industrial bus interface, so that the board significantly different from the ordinary ARM core board is a dedicated industrial applications of high-performance embedded motherboard.
As a result of TI's AM3517 embedded chip, SW-ARM-6811, good hardware graphics acceleration, supports VGA, LVDS / TFT (LVDS and TFT check one) dual display, without a fan and heat sink is still a wide warm environment stable. EAM-6811 motherboard is highly integrated, small size, full-featured, low power consumption, can be widely used in electricity, environmental protection, health care, intelligent transportation, network communications, public transportation, automotive electronics and other embedded smart devices.
Product Features:
* High performance the ARM Cortex-A8 kernel, frequency up to 600Mhz, On board large capacity SDRAM and NandFlash
* Strong multimedia features to support high-resolution dual display and audio output, video input
* 2 Fast Ethernet ports to adapt to the needs of high-speed network transmission
* a wide range of industrial interfaces, support 4 USB 2.0, four COM ports, 16 GPIO
* supports PC/104 and industrial CAN bus
Product Specifications:
Structure : the standard embedded PC/104 industrial computer motherboard structure
Processor : embedded TI Cortex-A8 AM3517 industrial-grade microprocessor, 600MHz clock speed ARM Cortex-A8 Core
NEON SIMD coprocessor, POWERVR SGX graphics accelerator
16KB I-Cache, 16KB D-Cache, 256KB L2-Cache, 132KB ROM, 64KB Share SRAM
Memory : Onboard 256MB DDR2 SDRAM, 32bit
Plate affixed to 256MB 16bit NandFlash, the largest expansion to 2GB (optional)
Serial Port : RS232 transmission mode UART interface, 4-way, 2 of them can be configured for RS485 transmission mode
USB interface : USB 2.0 interface
Audio interface: audio input, stereo output
Display Interface: Support for 18 bit TFT LCD or 18 bit LVDS
Choose LCD maximum resolution of 1024 * 768
VAG (VGA maximum resolution of 1280 * 760) dual display output
Video input interface: 10-bit Digital Camera Video Input
Network Interface: 2-way 10/100Mbps Fast Ethernet interface
SD card socket, SD interface: one of four data bits wide, can be used to store user data, can also be used for system startup
Digital GPIO Interface: 8 x 8 digital GPIO interface
CAN bus interface: 1 channel CAN bus output interface
Extended interface: quasi-PC104 expansion interface
Watchdog : a 32-bit watchdog counter
Other interfaces: JTAG debug interface
Operating System:
LINUX: support for the kernel of the operating system for Linux2.6.32
WINCE: WINCE 6.0 operating system
CE design: serial port, network interface using the anti-EMI design
Printed circuit board: 8 layer
Motherboard size: standard PC104 architecture, size 96mm * 90mm
Input voltage: single 5V input
Operating temperature: -40 °C -85 °C
Operating Humidity: 20% -90%
