Specifications
LED stadium boards1. Soft rubber front surface to protect players
2. Folding supporting structure design

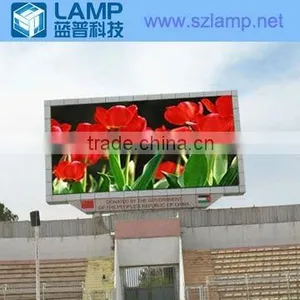

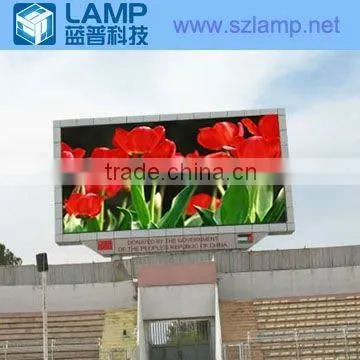

LED stadium boards
********************************************************************************************************************
Full color sports perimeter broadcasting display is specially designed for the sport stadium.It’s optimized for advertising and broadcast.Inimitable soft rubber cover is used for protecting both players and LED screens.Easy for installation and dismantle.
********************************************************************************************************************
Main Features:
1. Soft rubber front surface to protect players
2. Easy for installation and disassembly
3. High brightness and adjustable
4. Folding supporting structure design
Specification:
| DIP | SMD | |||||
| Pixel Pitch: | 12 mm | 16 mm | 20 mm | 10 mm | 12 mm | 16 mm |
| Pixel Density: | 6944 pixels/sqm | 3096 pixels/sqm | 2500 pixels/sqm |
10000 pixels/sqm |
6944 pixels/sqm |
3096 pixels/sqm |
| Pixel Configuration: | 2R1G1B | 2R1G1B | 2R1G1B | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Module Dimension: | 192*192 mm | 256*128 mm | 320*160 mm | 160*160 mm | 192*192 mm | 256*128 mm |
| Module Resolution: | 16*16 pixels | 16*8 pixels | 16*8 pixels | 16*16 pixels | 16*16 pixels | 16*8 pixels |
| Cabinets Dimension: | 768*768 mm | 1024*768 mm | 1280*960 mm | 800*640 mm | 768*768 mm | 1024*768 mm |
| Cabinets Resolution: | 64*64 pixels | 64*48 pixels | 64*48 pixels | 80*64 pixels | 64*64 pixels | 64*48 pixels |
| Brightness: | 6000 cd/sqm | 7500 cd/sqm | 6000 cd/sqm | 5000 cd/sqm | 6000 cd/sqm | 6000 cd/sqm |
| Best Viewing Distance: | > 12m | > 16m | > 20m | > 10m | > 12m | > 16m |
| Average Consumption: | 400 W/sqm | 500 W/sqm | 320 W/sqm | 344 W/sqm | 478 W/sqm | 537 W/sqm |
| Max Consumption: | 1000 W/sqm | 1250 W/sqm | 800 W/sqm | 860 W/sqm | 1194 W/sqm | 1343 W/sqm |
| Viewing Angle: | Horizontal angle:120 degree Vertical angle:60 degree | Horizontal angle:140 degree Vertical angle:140 degree | ||||
| Processing: | 12 bit | 12 bit | ||||
| Ingress Protection: | Front IP65; Rear IP54 | Front IP65; Rear IP54 | ||||
| Refresh Rate: | 600 ~ 4800Hz | 600 ~ 4800Hz | ||||
| LED lifetime: | 100,000 hours | 100,000 hours | ||||
| Input Voltage: | 90~260VAC,50/60Hz | 90~260VAC,50/60Hz | ||||
| Operation Humidity: | 10%~99% | 10%~99% | ||||
All product specifications are for reference only and subject to change without prior notice;
Please contact sales for details;
Applications
1. Soccer stadiums
2. Outdoor advertisng
3. Concert and any other conventions
4. Indoor & outdoor playground
Product Show
p12 outdoor led sports display p16 outdoor led sports display
P20 RGB perimeter LED screen outdoor LED panel for football field
About Us
Products Equipment:
Shenzhen LAMP Technology Co. Ltd is equipped with a series of first-class machines for LED lamps and LED displays, such as auto-die machine, auto rank machine, silicon feeding machine, reflow soldering machine, testing equipment, wave soldering auto-line, SMT auto-line and so on. We also have separate R&D center, new-product lab, wave soldering workshop, SMT workshop, LED binding workshop and LED module workshop, which guarantee our best quality control from LED lamps to LED display.
Auto-die bonding Machine Auto-wire bonding Machine
Wave Soldering Auto-line Auto-ranking Machine
Auto-casting Machine High & Low Temperature Testing Cell
SMT Auto-line
After-sale service
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
