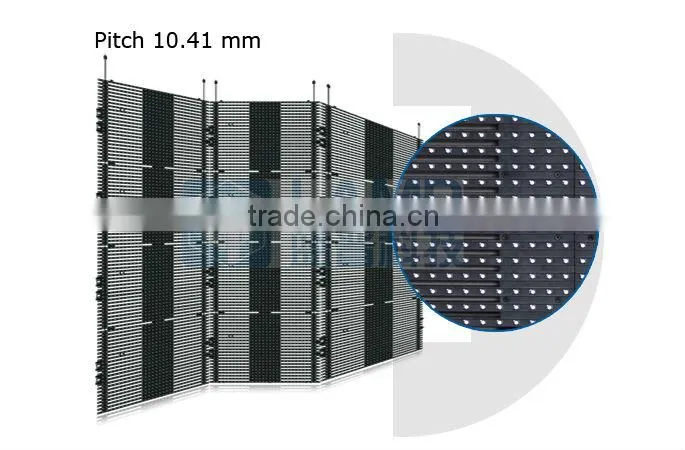

LAMP high resolution full color led screen board for stage
Features
1.Fast assembly
Creative design on the connection structure which could be installed fast and easily without tools. And the assembly or disassembly of single module is applicable for any position on the display.
2.Rotatable structure:
Ventilative module which can be rotated to and fro.
3.Fan-less
A fan-less design to meet all kinds of quiet occasions.
4.High power efficiency:
A high efficiency power supply with 83% power efficiency which saves 10% more than normal display.
Specification

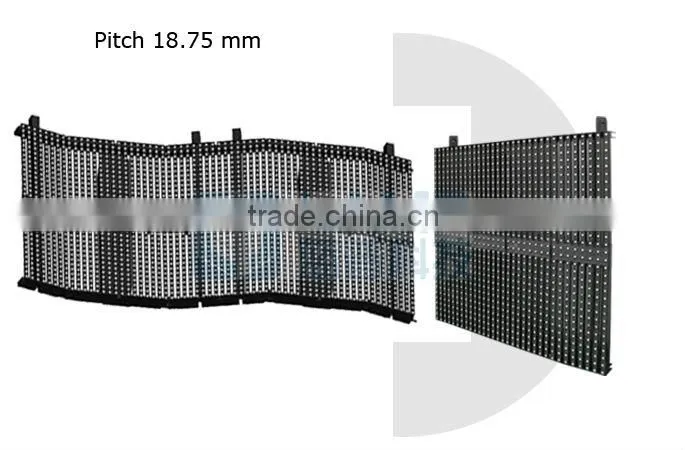

| Pixel Pitch: | 10.41 mm | 18.75 mm |
| Brightness: | 1000 cd/sqm | 5000 cd/sqm |
| LED Configuration: | SMD 3 in 1 | SMD 3 in 1 |
| Pixel Density: | 9227 pixels/sqm | 2844 pixels/sqm |
| Viewing Angle(Vertical): | 140° | 140° |
| Viewing Angle(Horizontal): | 140° | 140° |
| Cabinet Resolution: | 32*96 pixels | 32*32 pixels |
| LED Lifetime: | 100,000 hours | 100,000 hours |
| Power Consumption(Maximum): | 650 W/sqm | 700 W/sqm |
| Weight: | 3.8 kg/unit | 8 kg/unit |
| Processing: | 12 bit | 12 bit |
| Refresh Rate: | 1500Hz | 1500Hz |
| Rotation Angle: | -25° to +25°/-15° to +15° | -15° to +15° |
| Material: | Aluminum alloy | Aluminum alloy |
| Temperature Range(Operating): | -20 to 60 Degrees Celsius | -20 to 60 Degrees Celsius |
| Humidity Range(Operating): | 10% to 99% | 10% to 99% |
| Protection Rating: | IP 20 | IP 65 |

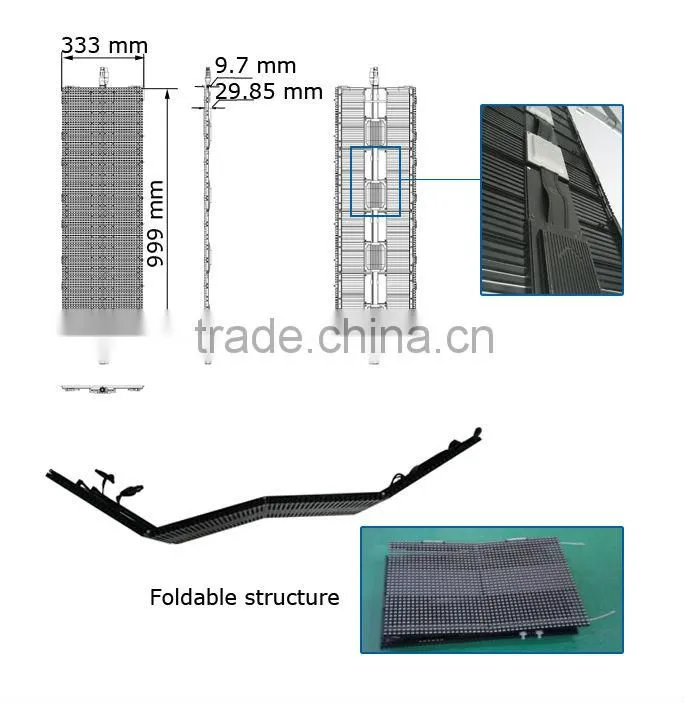

| Dimension(W*H*D): | 333*999*30 mm | 600*600*91 mm |
| LED Processor | DBSTAR | LINSN |
| Signal: | DVI up to UXGA, SDI, HD-SDI, S-video, compositem, YUV | |

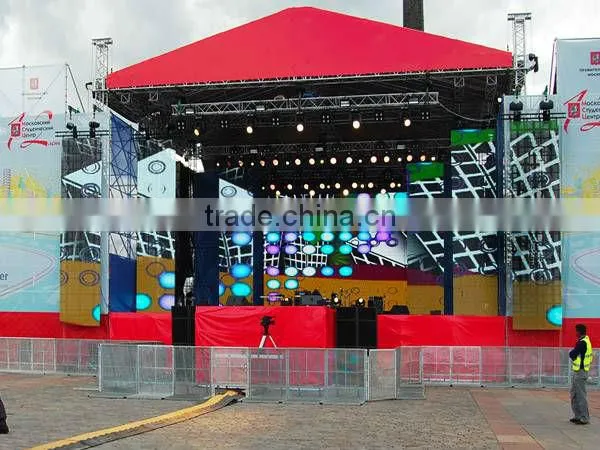

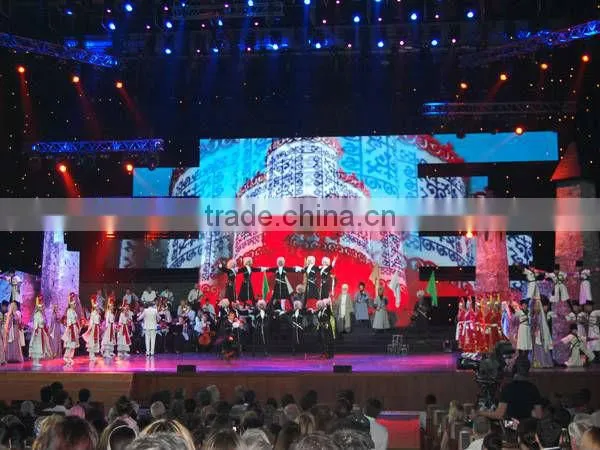

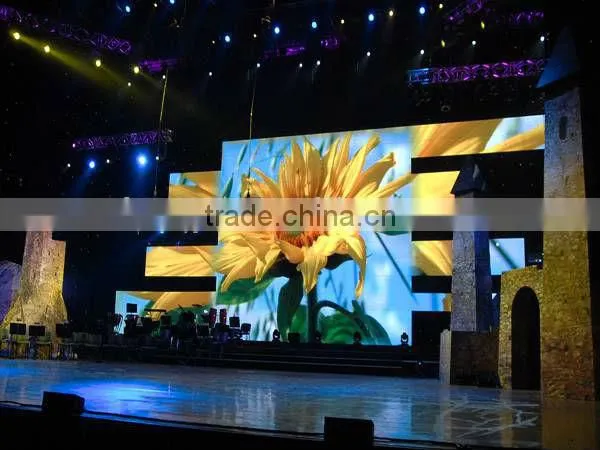

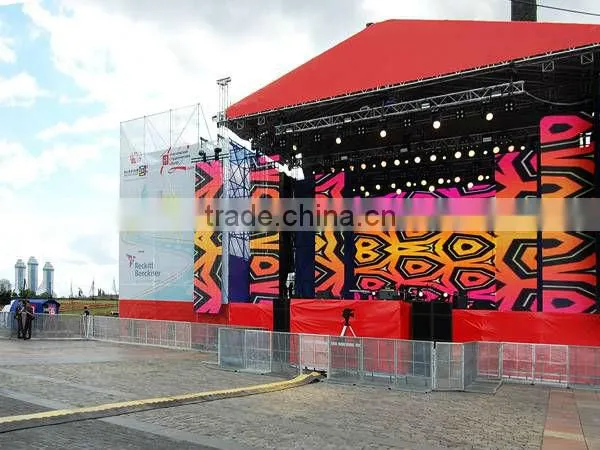

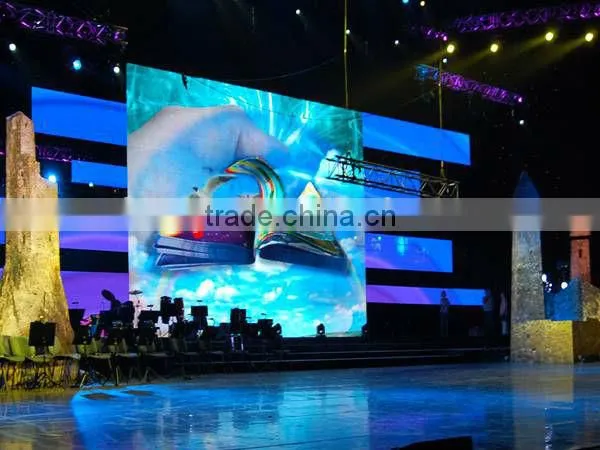

Product Show
System Diagram
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
