LAMP Indoor Full Color Video LED Display

LAMP Indoor Full Color Video LED Display thumbnail-1
LAMP Indoor Full Color Video LED Display photo-1
US$ 1 - 8,000 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LAMP
Usage:
Indoor
Contact Supplier Request Quote Chat Now
Shenzhen Lamp Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LAMP
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 4mm,5mm,6mm,7.62mm,8mm

Video LED display



Features:

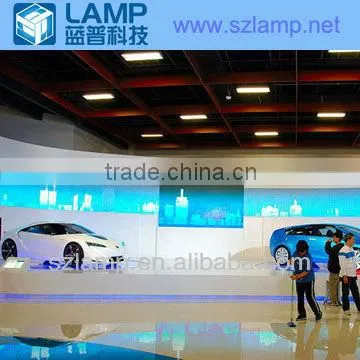

LAMP indoor SMD series led display delivers images with high brightness and contrast ratio levels as well as superb color uniformity. With its slim, sleek design, LAMP SMD series led display is designed for kinds of indoor applications, its widely used in shopping mall, TV studio, railway station, lobby etc. Its world- class images not only can capture the attention for AD performance, but also reinforce branding images.

1.Brilliant performance:



You can get an unbelievable vision effect that you will consider you are watching “TV”.



2.High refresh rate:



Higher refresh rate among the similar products in this industry.



3.Unique structure:



You can assemble and disassemble our product easily due to the modular design.



4.Wide viewing angle:

The image quality is almost no different at various angles.



Product Specification:

Pixel Pitch: 4 mm 5 mm 6 mm 7.62 mm 8 mm
Pixel Density: 62500 pixels/sqm 40000 pixels/sqm 27777 pixels/sqm 17200 pixels/sqm 15625 pixels/sqm
Pixel Configuration: SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1
Module Dimension: 128*128 mm 160*160 mm 192*96 mm 244*122 mm 256*128 mm
Module Resolution: 32*32 pixels 32*32 pixels 32*16 pixels 32*16 pixels 32*16 pixels
Cabinets Dimension: 512*512 mm 640*640 mm 768*576 mm 976*732 mm 1027*768 mm
Cabinets Resolution: 128*128 pixels 128*128 pixels 128*96 pixels 128*96 pixels 128*96 pixels
Brightness: 800 cd/sqm 1800 cd/sqm 2200 cd/sqm 2200 cd/sqm 1800 cd/sqm
Best Viewing Distance: > 4m > 5m > 6m > 8m > 8m
Average Consumption: 310 W/sqm 400 W/sqm 500 W/sqm 420 W/sqm 420 W/sqm
Max Consumption: 620 W/sqm 800 W/sqm 1000 W/sqm 900 W/sqm 850 W/sqm
Viewing Angle: Horizontal angle: 140 degree Vertical angle: 140 degree
Processing: 12 bit
Ingress Protection: IP20
Refresh Rate: 300 to 4800Hz
LED lifetime: 100,000 hours
Input Voltage: 90 to 260VAC, 50/60Hz
Operation Humidity: 10% to 99%



All product specifications are for reference only and subject to change without prior notice; Please contact sales for details

At the same time, we can design according to customer requirements and production.



System Diagram





LAMP indoor full color video LED display

LED display installation steps:

1.   Assemble the cabinets on the structure.

2.   Connect the UTP cables between cabinets.

3.   Connect the AC cables between cabinets.

4.   Install Sending Card.

5.   Connect the DVI cable between Sending Card and Graphic   Card.

6.   Connect the COM cable between Sending card and   computer.

7.   Connect the UTP cables between Sending Card and Receiving Card.

8.   Turn on control computer.

9.    Install LED studio software (see attached CD and serial number is 888888)

10.   Turn on LED display.

11.   Set the display mode in “clone mode” in the window of Graphic Card properties.

12.   Use the LED studio to control the display.
