HD P2.5 Indoor led display
- 5000 Square Meter / Square Meters per Month
- Shenzhen or Hongkong
- T/T
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LAMP | Model Number: | P2.5 |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 2.5mm | Screen Dimension: | 400mm*400mm |
Product Description

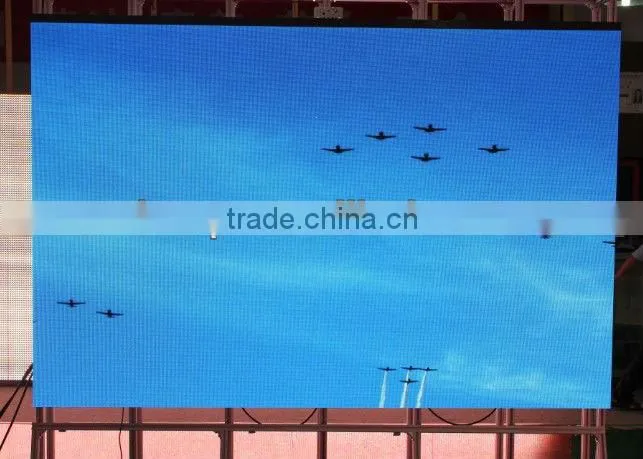

Smart Series HD P2.5 Indoor led display
-Main features.
1.Fast assembly:
It could be installed without complicated tools in hanging and fixed installation.
2.Light weight:
With the min-depth 9.7mm, each cabinet weigh only 4.2kg.
3.Energy saving:
The power consumption for each cabinet is only 80W.
4.Colorful performances:
Smart Series P3 is equipped with black LED 2020.The high-density, vivid color processing guarantees you high-end broadcasting show.
-Specification
Visual Parameter | |
Pixel Pitch: | 2.5mm |
Pixel Density: | 160,000 pixels/square meters |
Pixel Configuration: | SMD3in1 |
Module Dimension: | 200*80 mm |
Module Resolution: | 80*32 pixels |
Cabinets Dimension: | 400*400*64.7 mm |
Cabinets Resolution: | 160*160 pixels |
Cabinets weight: | 4.9kg/cabinet |
Cabinet Material: | Aluminum alloy |
Performance Parameter | |
Brightness: | 1,500cd/square meters |
Best Viewing Distance: | > 2.5m |
Max Consumption: | 100W/cabinet |
Scan Mode: | 1/16 scan |
Viewing Angle: | Horizontal angle: 140 degree Vertical angle: 140 degree |
Gray Scale Level: | 16 bit |
Refresh Rate: | 1,200Hz |
LED Lifetime: | 50,000 hours |
Environment Parameter | |
Input Voltage: | 90~260VAC, 50/60Hz |
Operation Humidity: | 10%~99% |
Ingress Protection: | IP20 |
Control Parameter | |
Control System: | NOVASTAR |
Signal: | DVI up to UXGA,SDI, HD-SDI,S-video,compositem,YUV |
All product specifications are for reference only and subject to change without prior notice;
Please contact sales for details;
-System

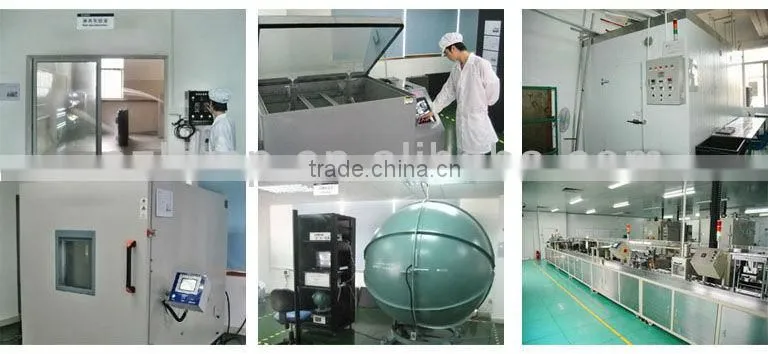

-Workshop
-Certification
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
