1080p full hd led screen display led P2.5 hd super thin led screen

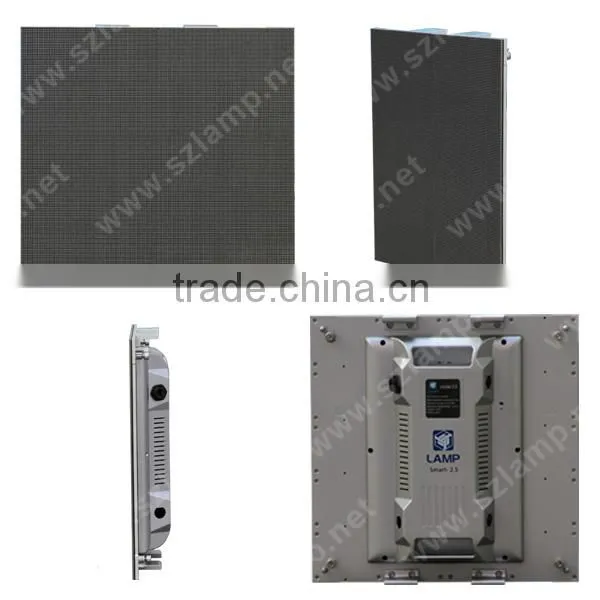

Pictures of P2.5 cabinets

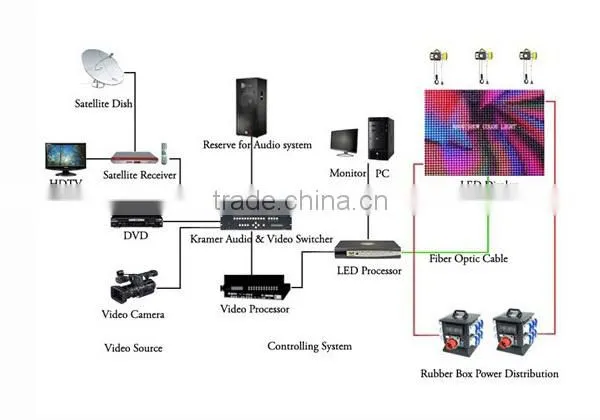

Control system diagram

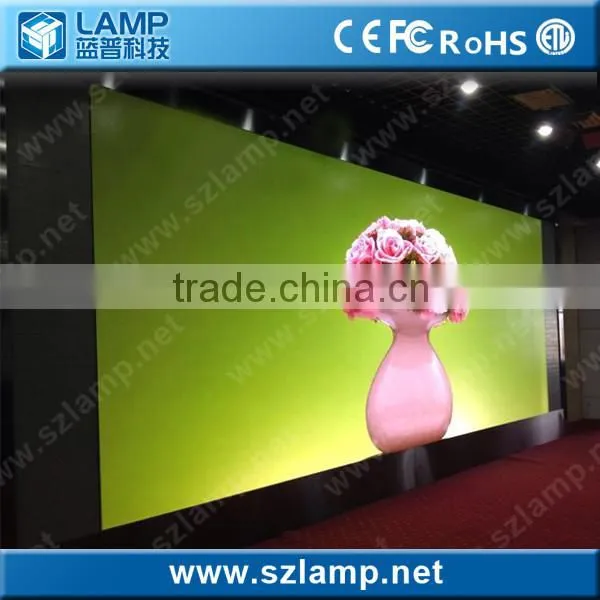

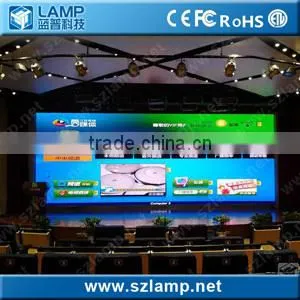

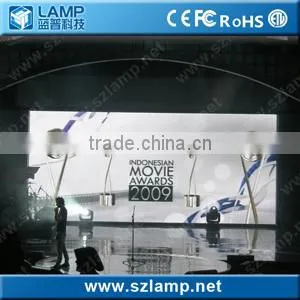

Indoor advertising led display project
Features
1.Light weight
—With the min-depth 9.7mm, each cabinet weighs only 4.9kg. .
2.Seamless connection & 3D performances
—Smart Series 2.5mm is equipped with black LED 2020. The high-density, vivid color
processing and seamless connection guarantees you high-end broadcasting show and
its 3D effect could give you one strong visual sight like a movie.
3.Energy-Saving
—The power consumption for each cabinet is only 100W.
4.Fast Assembly
—It could be installed without complicated tools in hanging and fixed installation.
Specification
Pixel Pitch |
2.5 mm |
Pixel Density |
160,000 pixels/sqm |
LED Configuration |
SMD 3 in 1 |
Cabinet Material |
Die-cast Aluminum |
Cabinet resolution |
160*160 pixels |
Cabinet Dimension |
400*400*64.7 mm |
Refresh Rate |
2,000Hz |
Best Viewing Distance |
> 2.5m |
Gray Scale Level (bits) |
16 |
Max Consumption |
860 W/cabinet |
Viewing Angle(Vertical) |
140 degree |
Viewing Angle(Horizontal) |
140 degree |
LED lifetime |
100,000 hours |
Ingress Protection |
IP20 |
Input Voltage |
90 to 260VAC, 50/60Hz |
Operation Humidity |
10% to 99% |
1. Packaging
wooden box , carton, and freight case
2. Shipping
*by truck,by air or by sea as customer required
*21 to 35 days delivery time
1. Lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which includes installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Why choose Shenzhen LAMP Tech?
Staff
Production flow
Quality control
Q1: Which chip vendors are you buying from?
A1: It depends on the Customer’s requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan.
Q2: How much will the brightness of LED drop down after 1000hrs?
A2: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%
Q3: What is the warranty of the full color LED display?
A3: We provide two years warranty for our products. That means two years of factory labor and components is provided for free, however the customer should pay for the shipping cost for sending broken parts to our factory.
Q4: How to make the installation structure ?
A4: We offer the installation structure design drawings for customers, and the design can well fit your installation conditions. It’s simple and easy to follow the instruction step by step. However, when the sign’s dimension has reached to 50-70m2, we suggest sending an engineer to oversee the project for you. Of course, you have to afford the cost accordingly.
Q5: What kind of tests will you have before delivery ?
A5: Appearance test, Electricity function test, Hi & Low Temperature test, waterproof test, vibration test, aging test ,etc.
