Automatic Composite Sandwich Panel Production Machine1.Top quality
2.High technology
3.Competitive price
Aotumatic Composite sandwich panel production line
Sandwich panel production line is used to produce new building materials which has the features of stability, lightness, solidness and good-looking appearance. Using sandwich panel, it is convenient and fast to construct large scale houses like supermarkets, workshops, warehouses. They also can be used to construct freezing houses, purifying houses and air-conditioning houses, etc.
Specification
Installation dimensions:48000mm*2700mm*4500mm
Operation voltage:380V 50Hz,3 phases
Total power consumption:32kw
Total Weight:31 tons

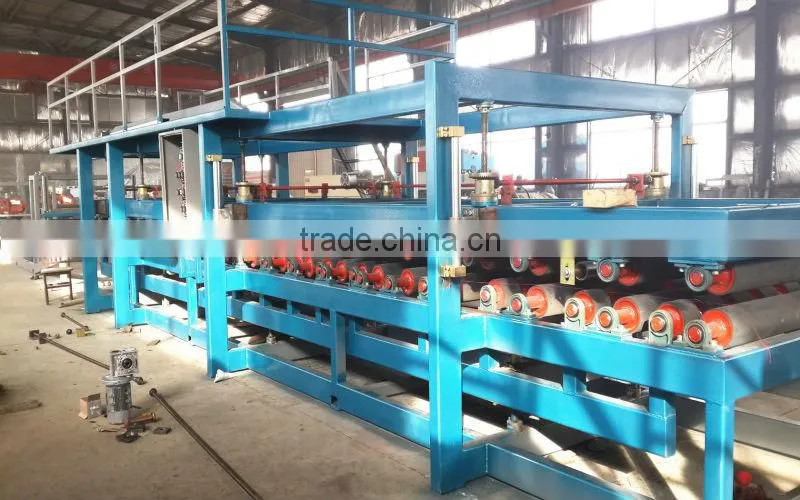

Forming part:
Size:9200mm*1400mm*1300mm
Frame:360 I Beam
Step of Rollers:27 steps
Roller material: 40Cr
Material of Shaft : high grade No.45 steel
Roller diameter:80mm

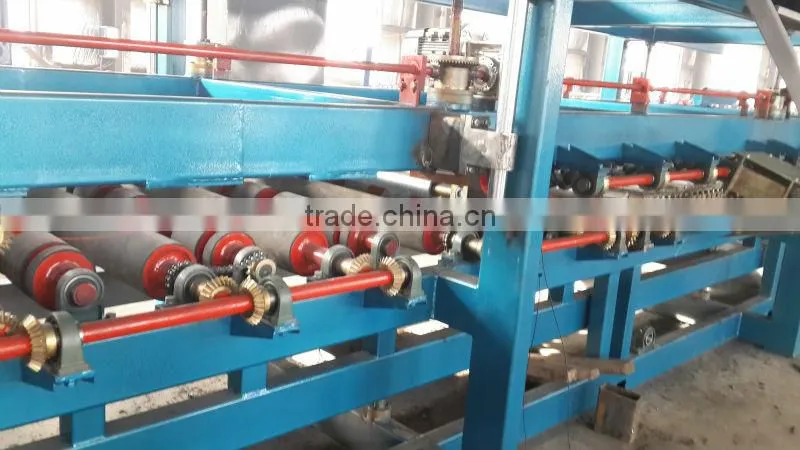

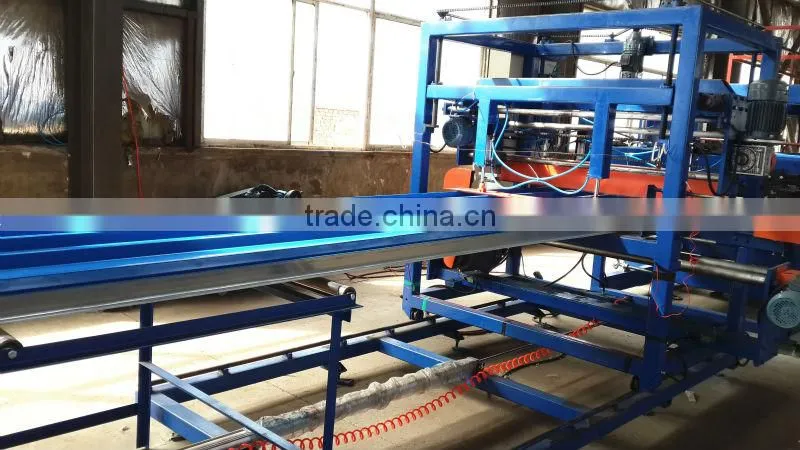

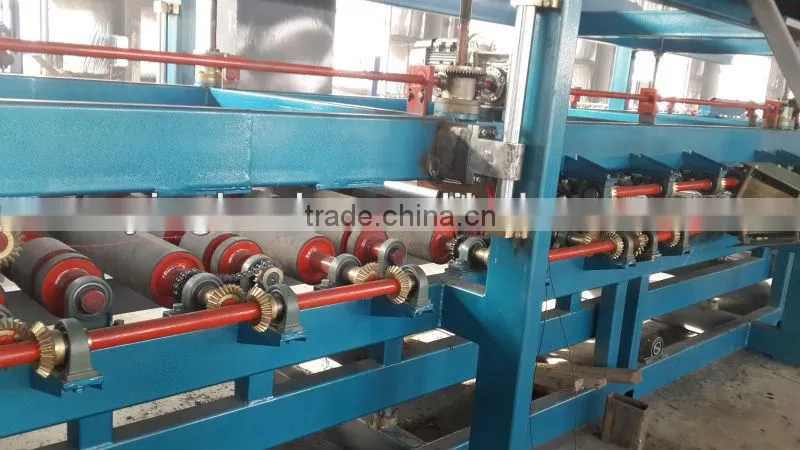

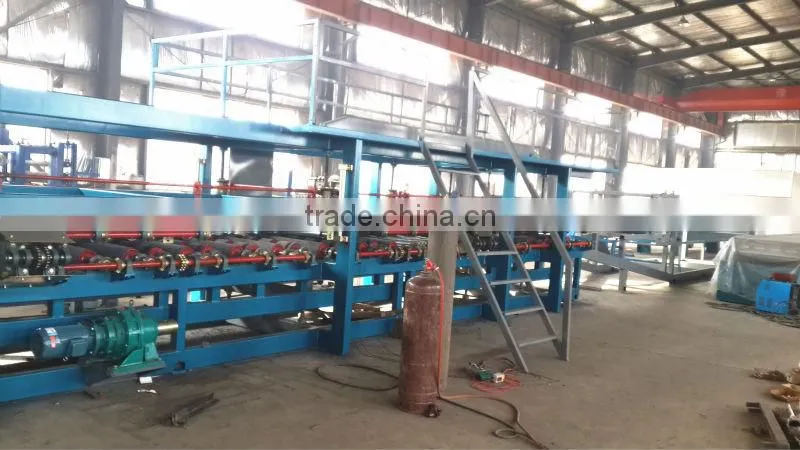

Composite Part:
Sizes:8000mm*2300*3200mm
Step of Rubber roller:28 steps
Thickness of rubber roller:1 inch
Two way moving shaft:9 steps
Working speed:0-4.5m/min
Steel Material thickness:0.3-0.8mm
Core thickness:50-300mm
Core material:EPS,rock wool and glass wool
Control system: PLC with touchscreen,Convertor
Shipment: 40 HQ*2 containers
Assistant equipment with machine
Slitter 1 set
C-channel forming machine 1 set
Cutter 1 set
Lift hook 1 set
Decolier 1 set
Bracket 2 pieces

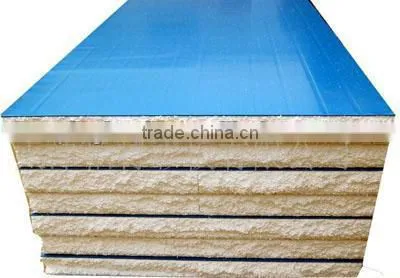

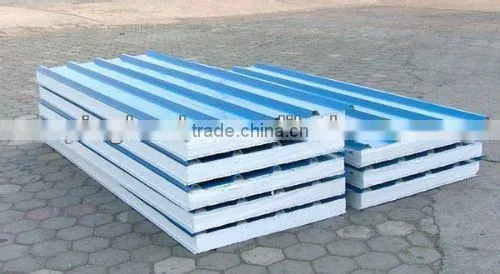

Processing,
Panel with Glass fibre wool,

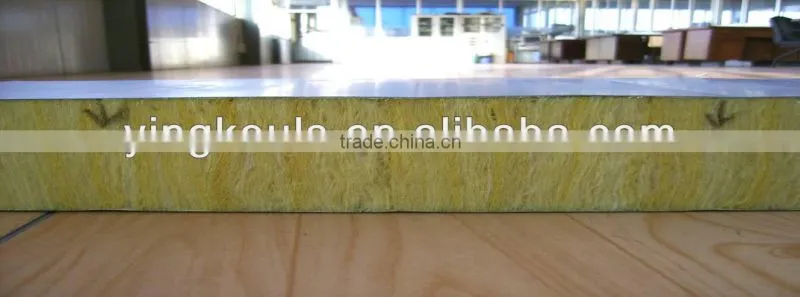

Panel with rock wool,
EPS panel,
More details
Payment Terms |
30% T/T prepaid and balance should be paid before loading |
Delivery time |
7days after receiving advance payment |
Guarantee period |
18monthes free service/ pay service all the machine life |
Installation and training |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. to you and teach you how to install and operate. please arrange board, lodging and other necessary things. |
Here are my Skype: lsmachine03
pls contact me if you are interested in our products.
