Structural Insulated Panel Machine / Production line
- 20 Set / Sets per Month
- Dalian
- T/T
- Pneumatic spray machine Steel structure special multi-functional high pressure airless spray machine environmental protection and paint saving
- Concrete mixing station machine
- Gypsum block production line
- sale for Temperature plate slotting machine
- Welding rod production line equipment
- 8 hours 4-5 tons of electrode production line equipment
Product Details
Place of Origin: | Liaoning, China | Brand Name: | Yingkou Longshun | Model Number: | LSF-7 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

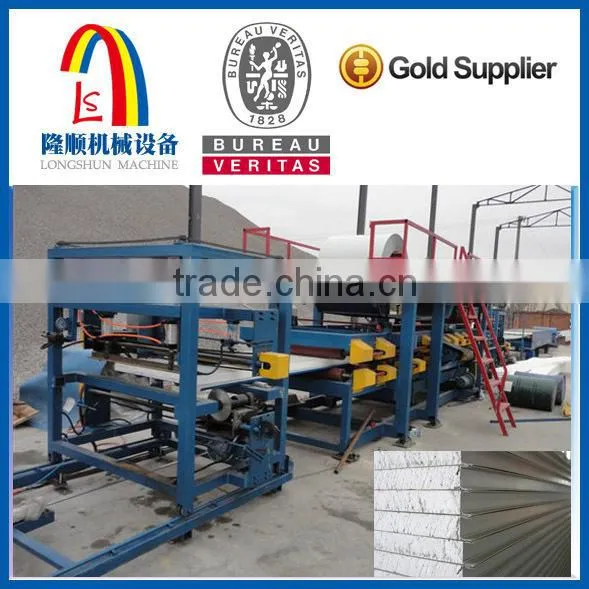

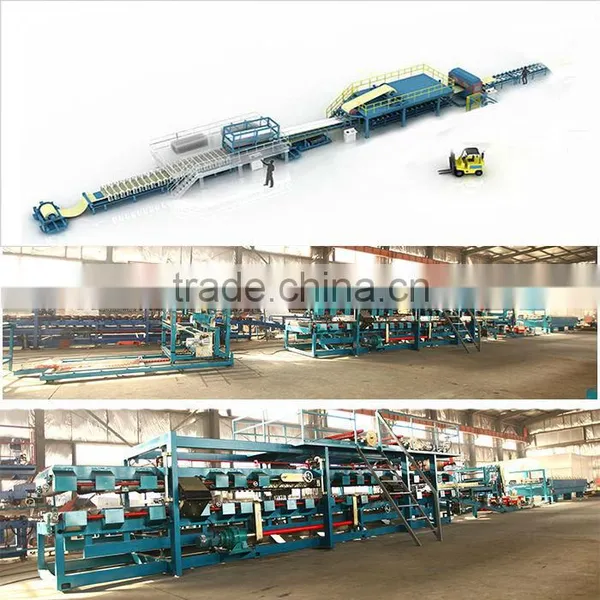

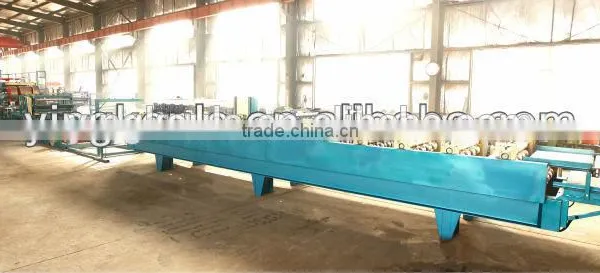

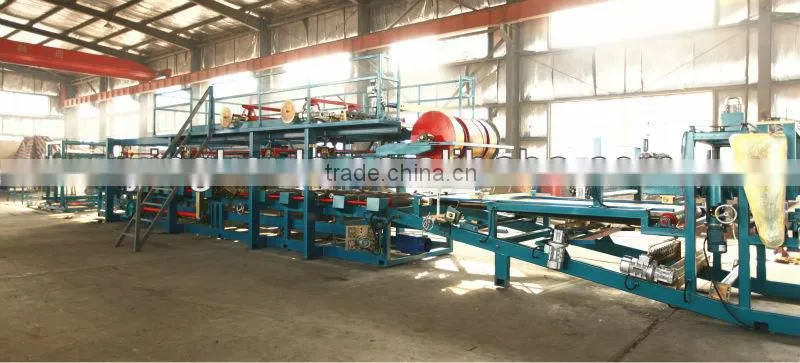

Structural Insulated Panel Machine / Production line
Introduction

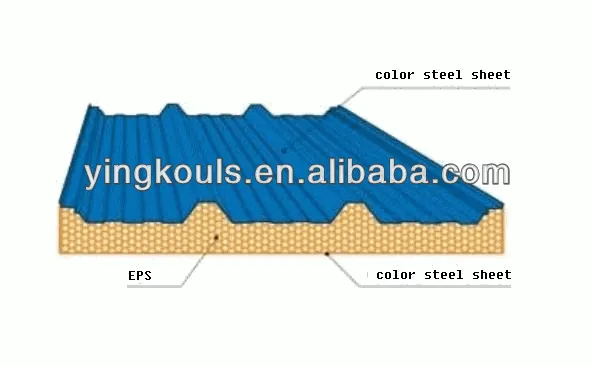

Sandwich panel production line is used to produce new building materials with stable, light, solid features
and goodlooking appearance. Using sandwich panel, it is convennient and fast to construct large scale houses
like supermarkets, workshops, warehouses.They also can be used to construct freezing houses, purifying
houses and air-conditioning houses, etc
No. |
|
|
1 | Installation dimension | 48.00m*2.70m*4.50m |
2 | Operation voltage | 380V 50Hz,3 phases |
3 | Total power consumption | 32kw |
4 | Total Weight | 31T |
Forming part: | ||
1 | Dimension | 9.20m*1.40m*1.30m |
2 | Frame | 360 I Beam |
3 | Step of Rollers | 27 steps |
4 | Roller material | 40Cr |
5 | Material of Shaft | high grade No.45 steel |
Composite Part: | ||
1 | Dimension | 8.0m*2.30m*3.20m |
2 | Step of Rubber roller | 28 |
3 | Thickness of rubber roller | 1 inch |
4 | Two way moving shaft | 9 steps |
5 | Working speed | 0-4.5m/min |
6 | Steel Material thickness | 0.3-0.8mm |
7 | Core thickness | 50-150mm |
8 | Core material | EPS,rock wool and glass wool |
9 | Control system | PLC with touchscreen |
10 | Shipment | 40GP*4 containers |
Standard:
No. |
|
|
1 | Slitter | 1 set |
2 | C-channel forming machine | 1 set |
3 | Cutter | 1 set |
4 | Lift hook | 1 set |
5 | Decoiler | 1 set |
6 | Bracket | 2 pcs |
Payment: T/T 30% payment in advance,
Packaging: standard seaworthy packing
Delivery: within 25 days
Transporting: 4*40" Container
For more details, just no hesitate contact with me.
No matter when and where i am here waiting for you.
Skype: lsmachine04
Tel:+86 417 6659588
M.B.:+86 183 4177 4967
Contact: Joanna
