EPS Polyurethane Sandwich Panel Machine LSF-7

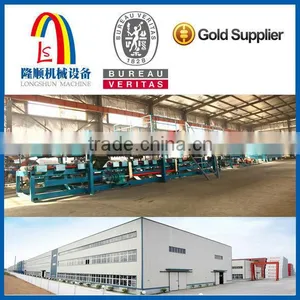

Sandwich Panel Production Line
Sandwich panel production line is used to produce new building materials with stable, light, solid features
and good-looking appearance. Using sandwich panel, it is convennient and fast to construct large scale houses
like supermarkets, workshops, warehouses.They also can be used to construct freezing houses, purifying houses
and air-conditioning houses, etc
Layout
No. |
|
|
1 |
Installation dimension |
48.00m*2.70m*4.50m |
2 |
Operation voltage |
380V 50Hz,3 phases |
3 |
Total power consumption |
32kw |
4 |
Total Weight |
31T |
Forming part: | ||
1 |
Dimension |
9.20m*1.40m*1.30m |
2 |
Frame |
360 I Beam |
3 |
Step of Rollers |
27 steps |
4 |
Roller material |
40Cr |
5 |
Material of Shaft |
high grade No.45 steel |
Composite Part: | ||
1 |
Dimension |
8.0m*2.30m*3.20m |
2 |
Step of Rubber roller |
28 |
3 |
Thickness of rubber roller |
1 inch |
4 |
Two way moving shaft |
9 steps |
5 |
Working speed |
0-4.5m/min |
6 |
Steel Material thickness |
0.3-0.8mm |
7 |
Core thickness |
50-150mm |
8 |
Core material |
EPS,rock wool and glass wool |
9 |
Control system |
PLC with touchscreen,Convertor |
10 |
Shipment |
40"*4 containers |
Standard:
No. |
|
|
1 |
Slitter |
1 set |
2 |
C-channel forming machine |
1 set |
3 |
Cutter |
1 set |
4 |
Lift hook |
1 set |
5 |
Decoiler |
1 set |
6 |
Bracket |
2 pcs |
Panel with Glass fibre wool core.
Panel with rock wool core.
EPS panel
Yingkou Longshun Machinery Manufacturing Co.,Ltd is specialized in producing composite board equipment, arch sheet forming machine and flat sheet forming machine. There are engineers, production line and sales team. OEM is welcome here. Any requirements just no hesitate to contact with us, we must try our best to satisfy your needs. Reasonable price and best service will be provided to you. Welcome to visit our factory.
Package: Standard seaworthy packing
Payment: T/T 30% payment in advance
Delivery: within 25 days.
Shipping: 4*40" Containers
For more details, pls no hesitate to contact with me.
No matter when and where, i am here waiting for you.
Skype: lsmachine04
Tel:+86 417 6659588
M.B.: +86 183 4177 4967
Fax:+ 86 417 6659599
Contact:Joanna
