Cash sale NEW sandwich panel forming machine for roof /walll

   Cash sale NEW sandwich panel forming machine for roof /walll

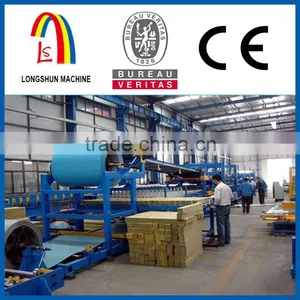

Sandwich Panel Production Line

Introduction Sandwich panel production line is used to produce new building materials with stable, light, solid features and good-looking appearance. Using sandwich panel, it is convenient and fast to construct large scale houses like supermarkets, workshops, warehouses.They also can be used to construct freezing houses, purifying houses and air-conditioning houses, etc

Specifications

Installation dimensions:48000mm*4500mm*2700mm

Operation voltage:380V, 50Hz,3 phases

Total power consumption:28kw

Total Weight:31 tons

Forming part:

Size:9200mm*1400mm*1300mm

Frame:360 I Beam

Step of Rollers:27 steps

Roller material: 40Cr

Material of Shaft : high grade No.45 steel

Roller diameter:80mm

Composite Part;

Sizes:8000mm*2300*3200mm

Step of Rubber roller:28 steps

Thickness of rubber roller:1 inch

Two way moving shaft:9 steps

Working speed:0-4.5m/min

Steel Material thickness:0.3-0.8mm

Core thickness:50-150mm

Core material:EPS,rock wool and glass wool

Control system: PLC with touchscreen,Convertor

Shipment: 40 HQ*2 containers
