(Original) ACR122U Card Reader
Description of ACR122u nfc smart card reader:
The NFC Reader is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only IC and ISO 14443 A and B cards but also all four types of NFC tags.
The NFC Reader is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, it can also read and write more quickly and efficiently.
Features of ACR122u nfc smart card reader:
- CCID-compliant
- PC/SC-compliant
- Read/write speed up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 type A and B, 13.56mhz, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Built-in anti-collision feature (only 1 tag is accessed at any time)
- User-controllable bi-color LED
- User-controllable buzzer
Our manufacturer RFID reader includes: UHF long range reader, EM long range reader, USB desktop reader, TCP/IP LAN reader, access control wiegand reader, 2.4G active reader, 125Khz EM reader, 13.56MHz 13.56mhz reader and more
Specification of ACR122u nfc smart card reader:
- Dimensions (L x W x H): 98 x 65 x 12.8mm
- Weight: 70g
- Interface: USB full speed
- Operating distance: up to 50mm (depends on the tag type)
- Supply voltage: regulated 5V DC
- Supply current: 200mA (operating), 50mA (standby), 100mA (normal)
- Operating temperature: 0-50°C
- Operating frequency: 13.56MHz
- Smart card interface: support
- ISO14443 type: A & B
- 13.56mhz, FeliCa
- 4 types of NFC (ISO/IEC18092) tags
- Compliance/certifications: PC/SC, CCID, CE, FCC, VCCI, RoHS compliant, USB full speed
- Microsoft WHQL: 2000, server 2003, XP, Vista, server 2008, server 2008 R2, 7
- Operating system support: 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008, Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64, Windows CE 5.0
- Mac
- Linux
Specifications of ACR122u nfc smart card reader:
| Interface | USB Full Speed |
| Operating Distance | Up to 50 mm (depends on the tag type) |
| Supply Voltage | Regulated 5V DC |
| Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
| Operating Temperature | 0°C-50°C |
| Operating Frequency | 13.56 MHz |
| Smart Card Interface Support | ISO14443 Type A & B |
| IC, FeliCa | |
| 4 types of NFC (ISO/IEC18092) tags | |
| Compliance/Certifications | PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed Microsoft WHQL: 2000, |
| Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7 | |
| Operating System Support | Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008 |
| Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64 | |
| Windows CE 5.0 | |
| Mac | |
| Linux | |
| Dimensions | 98 mm (L) x 65 mm (W) x 12.8 mm (H) |
| Weight |
70 g |

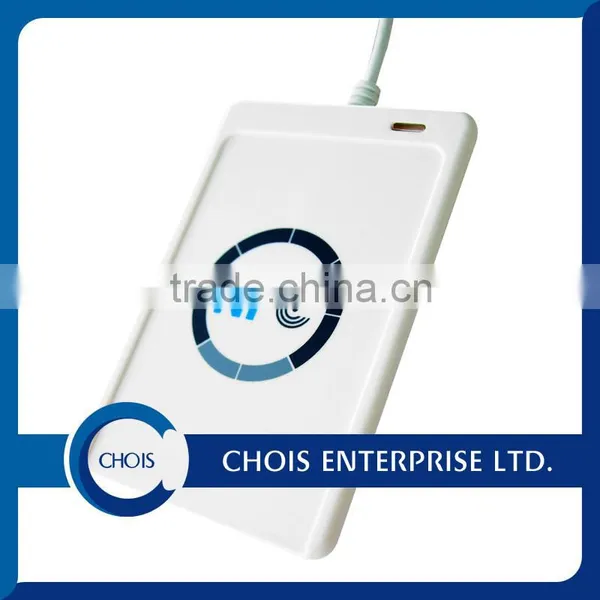

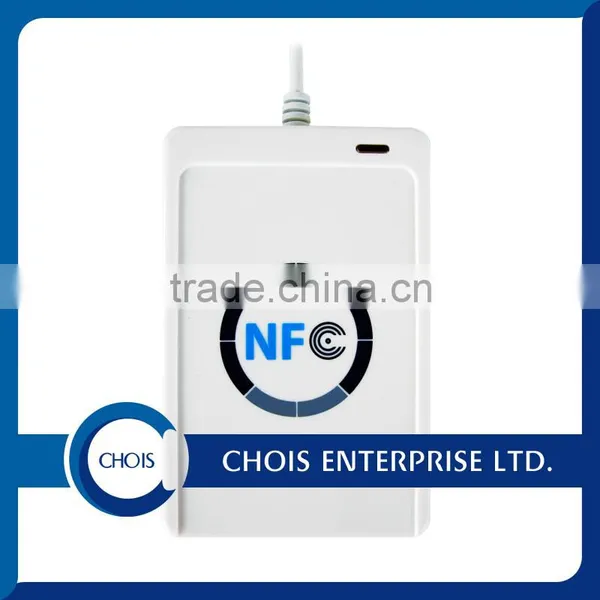

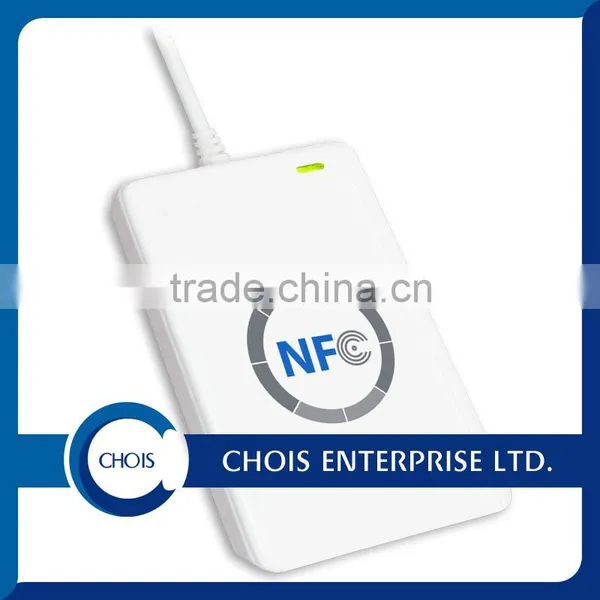

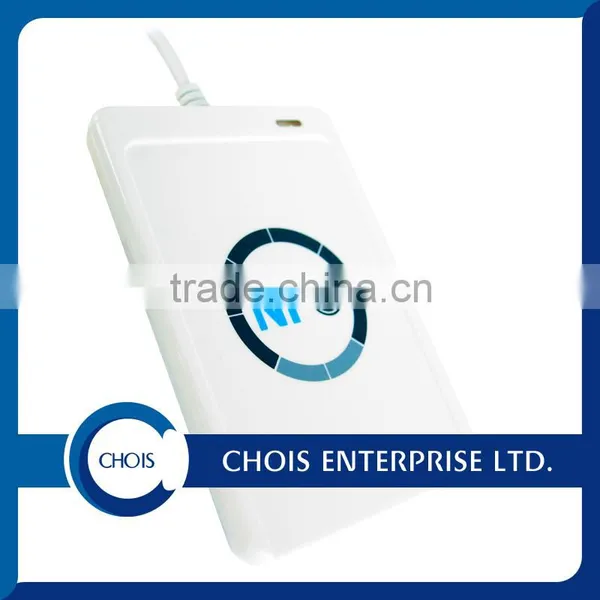

Pictures of (Original) ACR122U Card Reader:
Chois Enteprise Ltd. is a professional wholesaler and manufacturer of card printing systems and identification solutions. Established in 2010, we have years of experience in the ID industry. The Primacy product we provide including card Printer, printer ribbon, PVC cards, lanyard, card holder and related products.
With a huge selection of the popular brands in identification solution industry, we are your one-stop shop for providing you the high quality products with competitive cost, fast delivery & dedicated service. Located in Shenzhen, we also enjoy convenient water, land and air transportation.
We looking forward to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us!
Which card printer is suitable to me?
If you don’t have given option, please provide our sales team a picture of the card (double side) you want to print. We will recommend you the most suitable model according to the printing need.
Which ribbon should I choose for my card printer?
If you don’t know the model number of your ribbon, please provide us the model number or picture of your card printer, our sales team will check and confirm it for you.
