Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > SC303N 30 Travel Slide Potentiometer

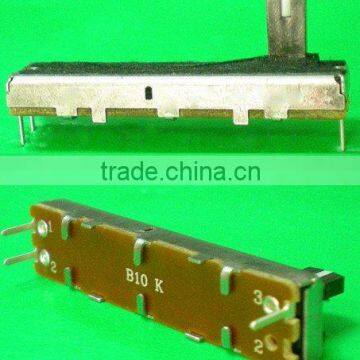

SC303N 30 Travel Slide Potentiometer

Name: SC303N 30 Travel Slide Potentiometer
Brand: APAI
SKU: 107741605
Availability: InStock

SC303N 30 Travel Slide Potentiometer thumbnail-1

SC303N 30 Travel Slide Potentiometer photo-1

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

APAI

Model Number:

SC303N

Contact Supplier Request Quote Chat Now

Foshan Apai Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name APAI

Model Number SC303N

Type Slide Potentiometer

Technology Carbon Film

Resistance 1K-1M

Resistance Tolerance 20%

Rated Power 0.25/0.125

Max. Operating Voltage 200/150

Operating Temperature -10~70

Specifications

APAI potentiometer:
Travel=30mm
L=45mm W=9.5mm
Solderable with auto dipping and available in a wide variety.

APAI potentiometer:

Travel=30mm

L=45mm W=9.5mm

Solderable with auto dipping and available in a wide variety.

Various Option for you to chose!

1.Shape of Shaft: B/C/D shaft style

2.Length of Shaft:10/15/20mm

3.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

Ect.

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

4. Kind of Greace: light/comond/heavy handling feeling

5.Tap: with/wirhout tap

6.Wide variety of travels:20mm,25mm,30mm,45mm,60mm,100mm

7.Unit:Single-unit/Dual-unit

8.Click:with/without center click

Items	SC100304050608 Series
Operating force	30~250gf.cm
Lever stopper strength	5kgf (5mm point from mounting surface)
Lever wobble	2(2×L)/20mm max. (L:lever length both sides)
Click slip-out force (Only center click)	Operating force 20~200gf.cm

(Electrical characteristics)

Total resistance	1KΩ~1MΩ
Total resistance tolerance	±20%
Resistance taper	A, B, C, D, RD
Rated wattage(W)	Rated	Taper	15mm	20mm	30mm	45mm	60mm
	B	Single	0.05	0.05	0.1	0.2	0.2
	0	Dual	0.025	0.025	0.05	0.1	0.2
	Except B	Single	0.025	0.025	0.05	0.1	0.1
	0	Dual	0.012	0.012	0.025	0.05	0.1
Rated voltage(V)	B	0	100	100	200	200	200
Rated voltage(V)	Except B	0	50	50	150	150	150
Slider noise	47mV max.
Gang error	3dB max. (-40~0dB)
Insulation resistance	100mΩmin. at 250V DC
Voltage proof	1 minute at 300V AC
Sliding life	15,000 cycles
