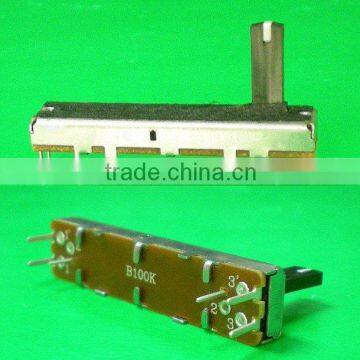

SC303G 30 Travel Slide Potentiometer

SC303G 30 Travel Slide Potentiometer thumbnail-1
SC303G 30 Travel Slide Potentiometer photo-1
Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
APAI
Model Number:
SC303G
Contact Supplier Request Quote Chat Now
Foshan Apai Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name APAI
Model Number SC303G
Type Slide Potentiometer
Technology Carbon Film
Resistance 1K-1M
Resistance Tolerance 20%
Rated Power B taper 0.2W,other taper 0.05W
Max. Operating Voltage B taper 200V,other taper 150V
Operating Temperature 38-42

Specifications

APAI potentiometer:
30 Travel . L=45mm W=9.5mm
Solderable with auto dipping and available in a wide variety.

APAI potentiometer:

Travel=30mm

L=45mm W=9.5mm

Solderable with auto dipping and available in a wide variety.



Various Option for you to chose!

1.Shape of Shaft: A/A6/B/C shaft style

2.Length of Shaft:10/15/20mm

3.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

4. Kind of Greace: light/comond/heavy handling feeling

5.Tap: with/wirhout tap

6.Wide variety of travels:45mm,60mm,100mm

7.Unit:Single-unit/Dual-unit

8.Click:with/without center click

 (mechanical characteristics)


 Applications
· For control of volume, tone and balance in audio     equipment.


Items

SC100304050608 Series

Operating force

30~250gf.cm

Lever stopper strength

5kgf (5mm point from mounting surface)

Lever wobble

2(2×L)/20mm max. (L:lever length both sides)

Click slip-out force
(Only center click)

Operating force 20~200gf.cm

(Electrical characteristics)

Total resistance

1KΩ~1MΩ

Total resistance tolerance

±20%


Resistance taper

A, B, C, D, RD

Rated wattage(W)

Rated

Taper

15mm

20mm

30mm

45mm

60mm

B

Single

0.05

0.05

0.1

0.2

0.2

0

Dual

0.025

0.025

0.05

0.1

0.2

Except B

Single

0.025

0.025

0.05

0.1

0.1

0

Dual

0.012

0.012

0.025

0.05

0.1

Rated voltage(V)

B

0

100

100

200

200

200

Except B

50

50

150

150

150

Slider noise

47mV max.

Gang error

3dB max. (-40~0dB)

Insulation resistance

100mΩmin. at 250V DC

Voltage proof

1 minute at 300V AC

Sliding life

15,000 cycles
