</h2> 240 Hydraulic Arch Roof Panel Curving Machine</h2>

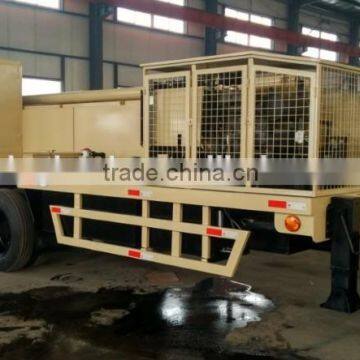

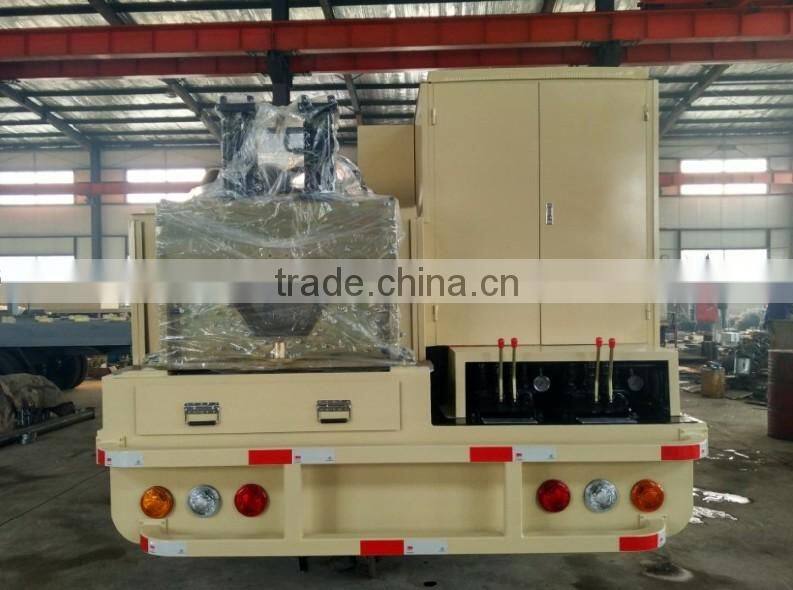

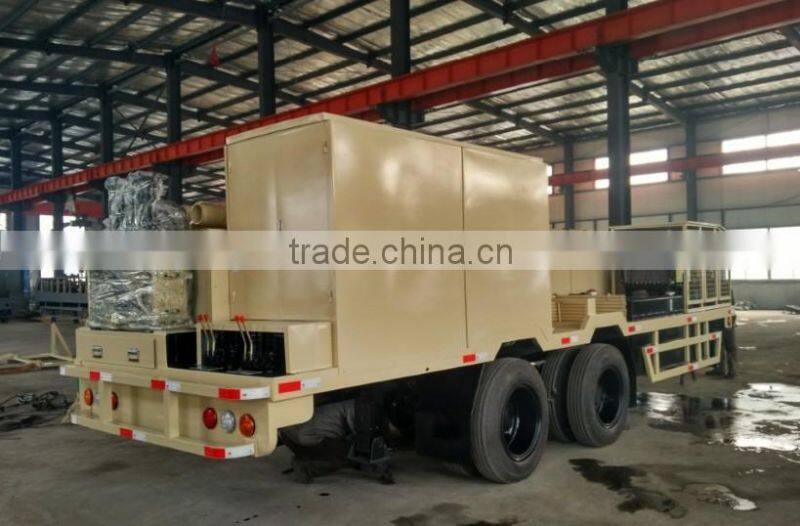

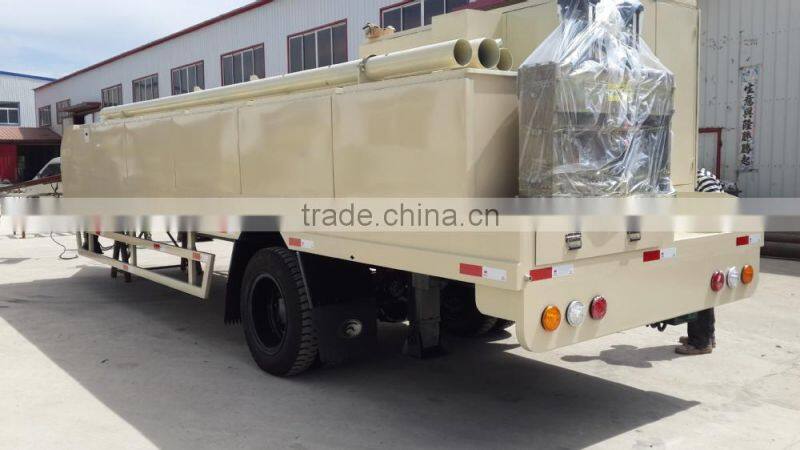

240 Hydraulic Arch Roof Panel Curving Machine
Details Show

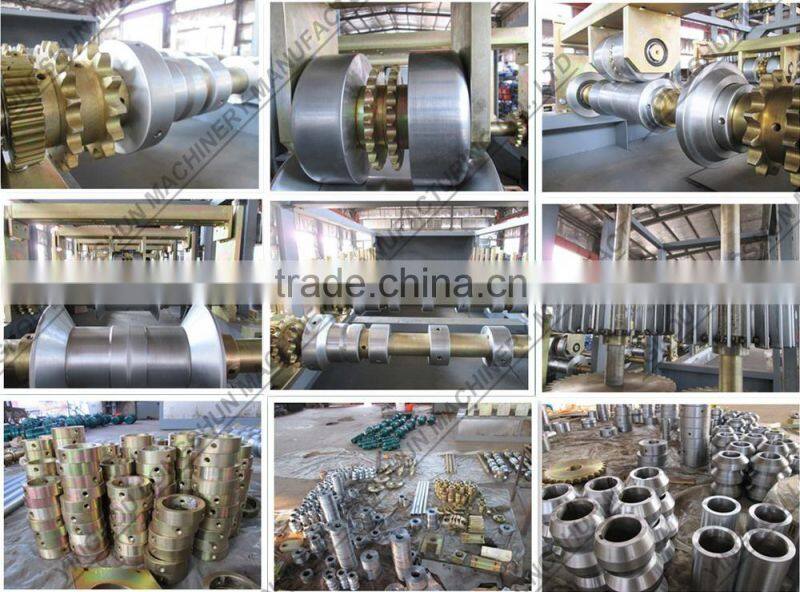

Machine Components:
Technical description:
Suitable material: galvanized steel, colored steel, etc
Total weight:11tons
Coil thickness: 0.8 –1.5mm
Roller stands:14
Roller diameter:80mm
Roller material: 40Cr,quenched by HRC58-62
Shaft material: No.45 steel
Cutting Blade material:Cr12 Mov.
Production speed: 13m/min
Power supply: AC380V±10%, 50Hz, or as per your requirement
Main machine dimension: 8.9m × 2.25m × 2.35m
Model list
| Type | Width of the coil | Width of the formed sheet | Thickness of the coil | Max span | Use ratio | The depth of the groove |
| LS-1250-800 | 1250mm | 800mm | 1.0-1.5 mm | ≤45m | 64% | 320mm |
| LS-1000-800 | 1000mm | 800mm | 0.8-1.5 mm | ≤25m | 80% | 114mm |
| LS-1000-750 | 1000mm | 750mm | 0.8-1.5 mm | ≤28m | 75% | 138mm |
| LS-1000-700 | 1000mm | 700mm | 0.8-1.5 mm | ≤25m | 70% | 175mm |
| LS-1000-680 | 1000mm | 680mm | 0.8-1.5 mm | ≤36m | 68% | 223mm |
| LS-1000-610 | 1000mm | 610mm | 0.8-1.5 mm | ≤45m | 61% | 243mm |
| LS-1000-550 | 1000mm | 550mm | 0.8-1.5 mm | ≤45m | 55% | 187.5mm |
| LS-1000-400 | 1000mm | 400mm | 0.8-1.5 mm | ≤45m | 40% | 253mm |
| LS-914-750 | 914mm | 750mm | 0.8-1.5 mm | ≤20m | 82% | 86mm |
| LS-914-700 | 914mm | 700mm | 0.8-1.5 mm | ≤25m | 76% | 123mm |
| LS-914-650 | 914mm | 650mm | 0.8-1.5 mm | ≤28m | 71% | 181mm |
| LS-914-610 | 914mm | 610mm | 0.8-1.5 mm | ≤40m | 66% | 203mm |
| LS-914-400 | 914mm | 400mm | 0.8-1.5 mm | ≤45m | 43% | 210mm |
| LS-600-305 | 600mm | 305mm | 0.8-1.5 mm | ≤30m | 51% | 109mm |
Payment Term and condition
* Payment Term: 30 T/T in advance, 70% T/T before delivery
* Delivery Time: Within 30 Days after receipt of the down payment
* Warranty: 1 year and life-long maintain
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer
provides accommodation, food and the round-trip ticket fee.
* Installation Days: about 5 days

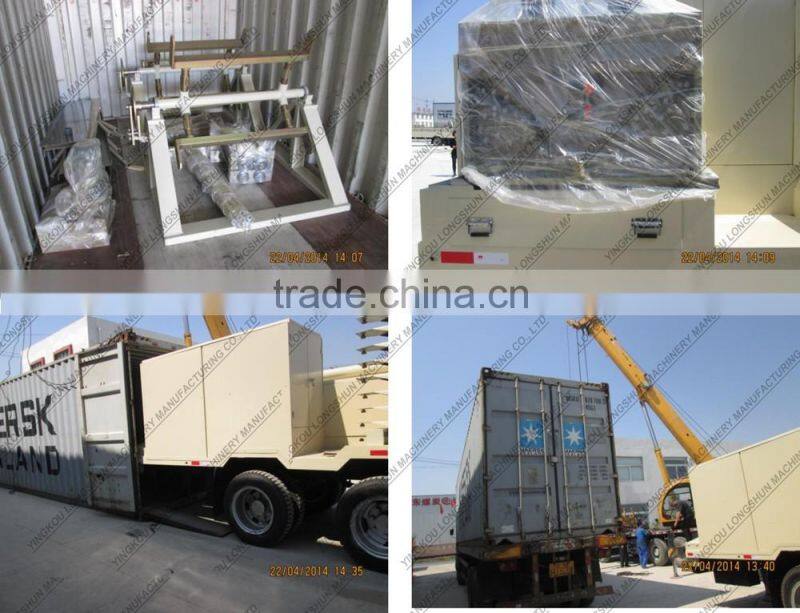

* Transporting: 1x40ft container
1. Q: Are you factory?

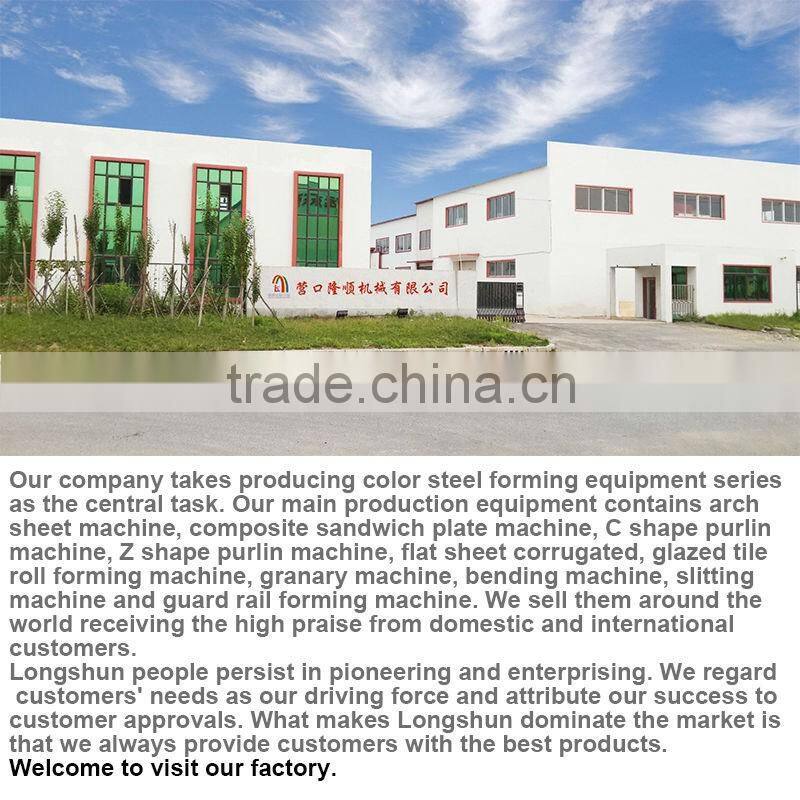

A: Yes,we are the manufacture,our factory is in Yingkou,Liaoning.
2. Q: Can you provide invitation letter?
A: Yes,we can provide company and government invitation letter.
3. Q:What is MOQ?
A: 1 set.
4. Q:What is the payment terms.
A: 30% deposit before production by T/T, and balance T/T after check the goods and before shipping
5. Q:What is the delivery time?
A:Within 25 workdays.
6. Q:What is the warranty?
A:Within 12 months.
Our service
Our products can be made according to your requirement.
Excellent quality and reasonable price to provide.
We do quotation within 24 hours and welcome your any inquiry at anytime.
More detail please call or email to me directly,thank you !
