high quality machinery made in china
welding machine price list and welding machine and welder
Specifications
1.Minimizing,lightness,high quality and energy saving
2.Advance arc force and arc-starting function can rest Interence
3.Stable arc and littlesplash
4.High welding quality, deep bath and strong strength
5.Auto protection of over-voltage and over-current
6.Be able to work continuously, it can balance automatically WHen voltage is waving
7.Suit for welding all kind of basic welding rod
8.Be able to weld cellulose rod
machine MMA:
1.Reactive power correction, MOSFET, AC/DC or pulse output , soft switch, inverter with 100 kHz high frequency;
2.Compact structure, stable welding current, steady and intensive arc, reliable and durable, easy for maintenance;
3.Excellent control performance, multiple functions of TIG, MMA and CUT;
4.With pulse function;
5.Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection, pedal control interface for safe operation;
6.Complete accessories: welding torch, cutting torch, welding holder, earth clamp, compressed air regulator, etc.

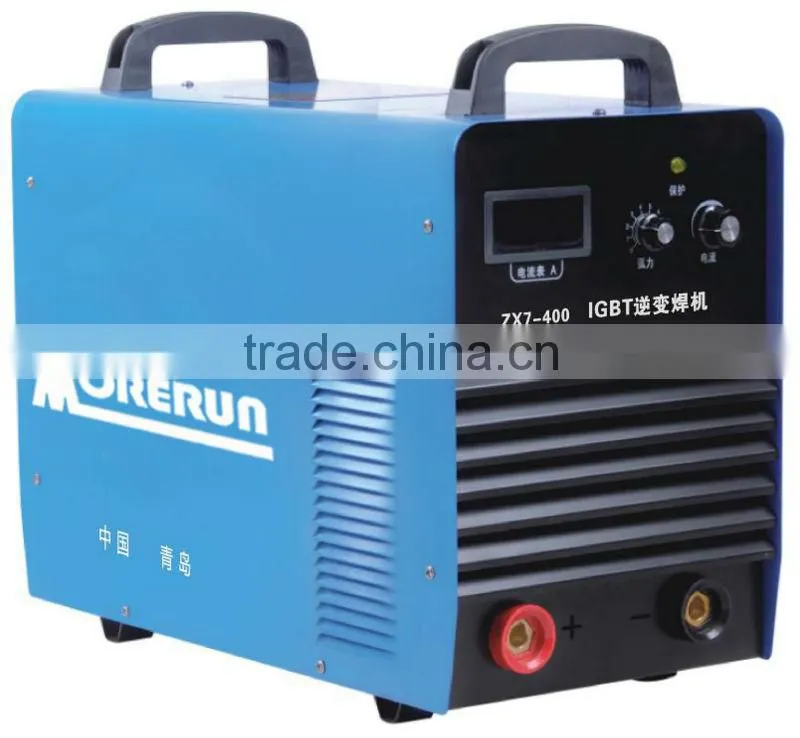

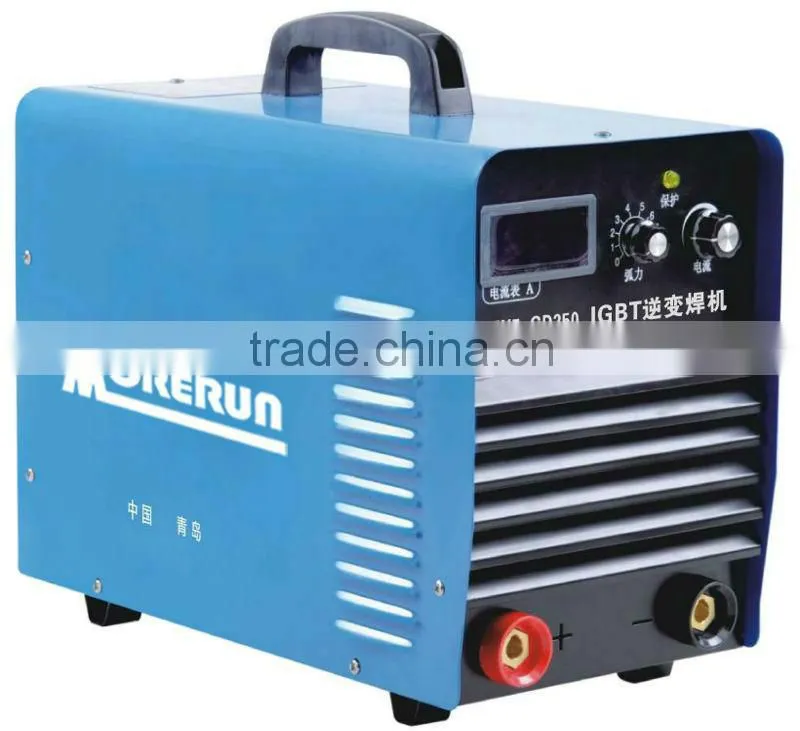

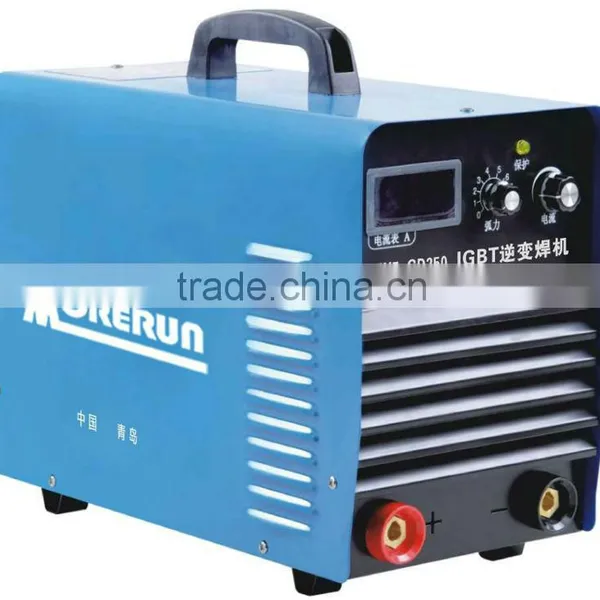

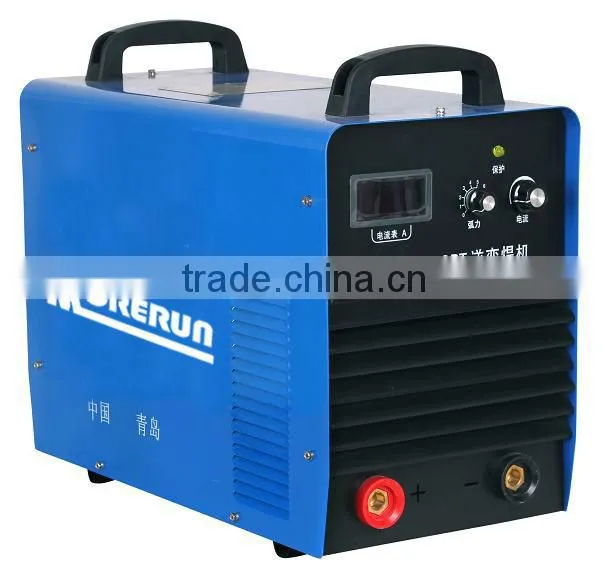

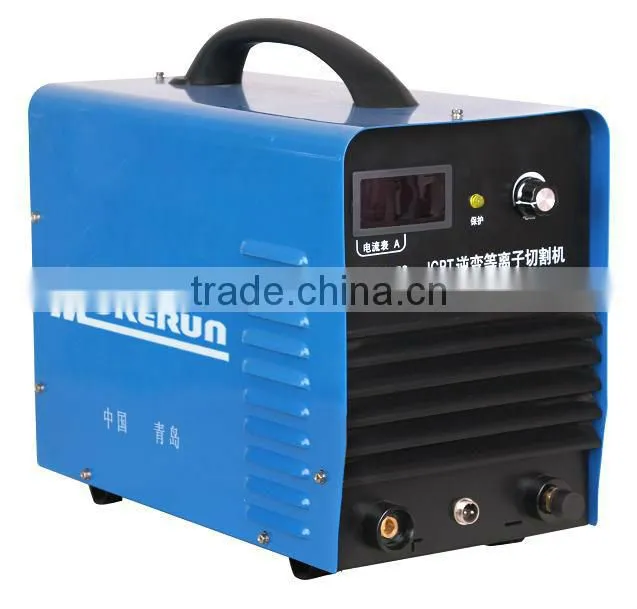

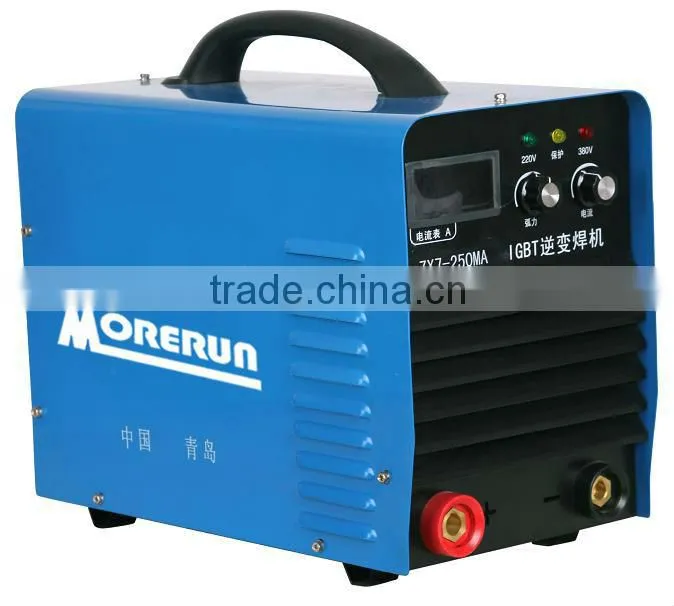

The parameters of Qingdao Morewin Inverter Multi-function AC/DC Pulse TIG/MMA/CUT welding machine MMA is as following:
| Model | MMA 200 | MMA 250 | MMA 315 | MMA 400D | MMA 400 |
| Input Power (V) | 220V/ 50~60HZ | 220V/ 50~60HZ | 380V/50~60HZ | 380V/50~60HZ | 380V/50~60HZ |
| Input Current (A) | 32 | 42 | 19 | 24 | 27 |
| Rated Input Capacity (KVA) | 5.8 | 8.8 | 12 | 16 | 16 |
| Inverting Frequency (KHz) | 20 | 20 | 20 | 20 | 20 |
| Efficiency | >85% | >85% | >85% | >85% | >85% |
| Idle Voltage (V) | 62 | 62 | 68 | 68 | 79 |
| Rated Outut Curent (A) | 200 | 250 | 315 | 400 | 400 |
| Current Range (A) | 1~200 | 1~250 | 1~315 | 1~400 | 1~400 |
| Duty Cycle | 100% | 100% | 100% | 100% | 100% |
| Output Current (A) | 1~200 | 1~250 | 1~315 | 1~400 | 1~400 |
| Diameter of rod(mm) | 0.8~4.0 | 0.8~4.0 | 0.8~4.0 | 0.8~5.0 | 0.8~5.0 |
| Insulation | F | F | F | F | F |
| Protection Level | IP21S | IP21S | IP21S | IP21S | IP21S |
| Dimensions (mm) L.H.W | 371*153*232 | 390*200*325 | 390*325*325 | 418*226*350 | 466*250*416 |
| Weight (kg) | 9 | 12 | 11 | 13 | 23 |
1pc/ carton
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.

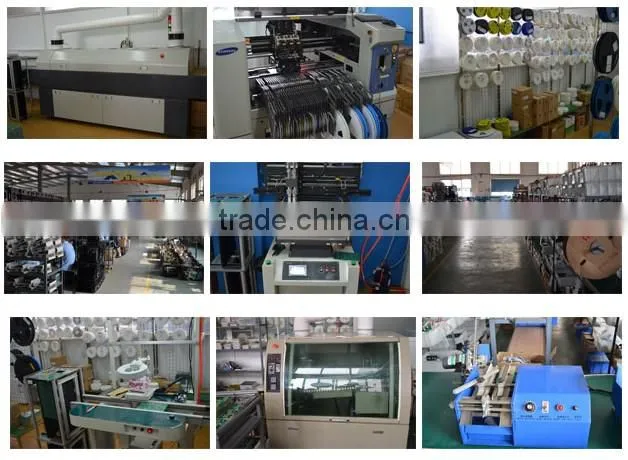

machining environment
Certificate of quality
CCC
The data in the above table is only for reference. Please subject to the nameplate
on the device.
.
