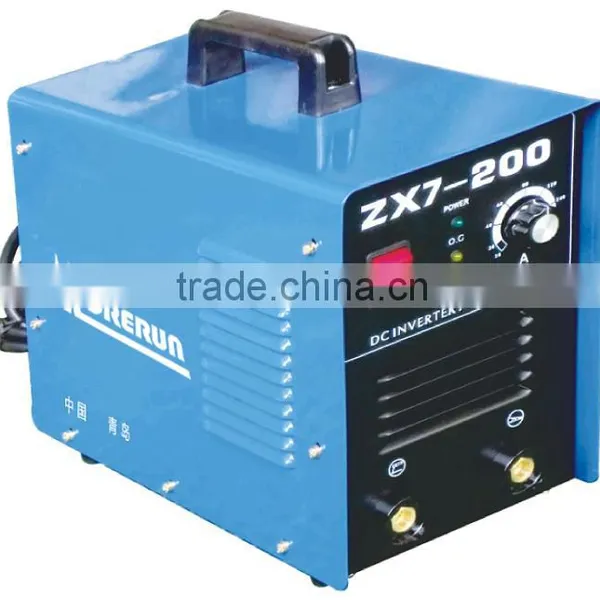

inverter welding machine mma-200 and welding machine price list

Specifications

inverter welding machine mma-200 and welding machine price list 1. Light & Portable
2. duty cycle 60%
3. 4mm rod continuous

MMA Series Arc portable welding machine price and portable welding machine price inverter welding machine mma-200 and welding machine price list



Specifications

1.Minimizing,lightness,high quality and energy saving

2.Advance arc force and arc-starting function can rest Interence
3.Stable arc and littlesplash

4.High welding quality, deep bath and strong strength

5.Auto protection of over-voltage and over-current

6.Be able to work continuously, it can balance automatically WHen voltage is waving
7.Suit for welding all kind of basic welding rod

8.Be able to weld cellulose rod



 The parameters of   Qingdao Morewin Inverter Multi-function AC/DC Pulse TIG/MMA/CUT welding machine MMA is as following:



Model	MMA 200	MMA 250	MMA 315	MMA 400D	MMA 400
Input Power (V)	220V/ 50~60HZ	220V/ 50~60HZ	380V/50~60HZ	380V/50~60HZ	380V/50~60HZ
Input Current (A)	32	42	19	24	27
Rated Input Capacity (KVA)	5.8	8.8	12	16	16
Inverting Frequency (KHz)	20	20	20	20	20
Efficiency	>85%	>85%	>85%	>85%	>85%
Idle Voltage (V)	62	62	68	68	79
Rated Outut Curent (A)	200	250	315	400	400
Current Range (A)	1~200	1~250	1~315	1~400	1~400
Duty Cycle	100%	100%	100%	100%	100%
Output Current (A)	1~200	1~250	1~315	1~400	1~400
Diameter of rod(mm)	0.8~4.0	0.8~4.0	0.8~4.0	0.8~5.0	0.8~5.0
Insulation	F	F	F	F	F
Protection Level	IP21S	IP21S	IP21S	IP21S	IP21S
Dimensions (mm) L.H.W	371*153*232	390*200*325	390*325*325	418*226*350	466*250*416
Weight (kg)	9	12	11	13	23



1pc/ carton





* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.





machining environment

Certificate of quality



CCC











The data in the above table is only for reference. Please subject to the nameplate
on the device.

.
