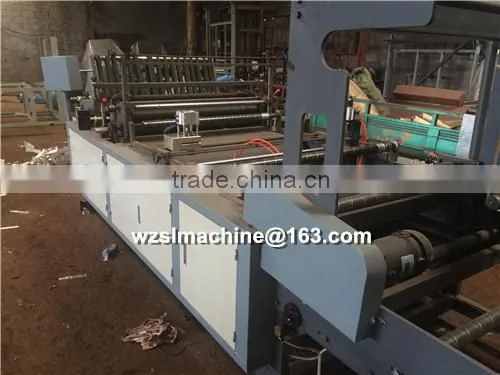

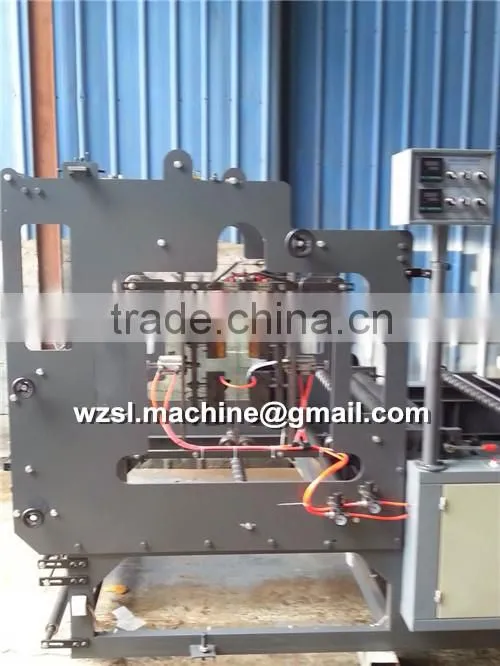

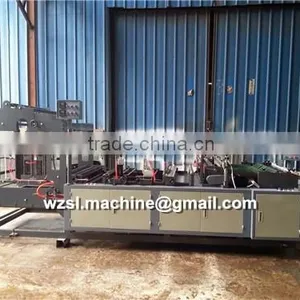

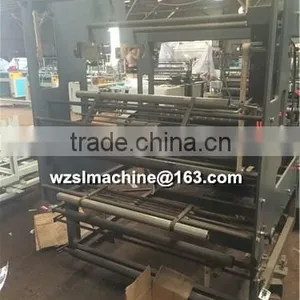

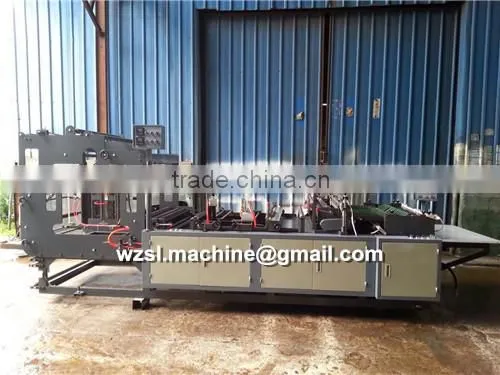

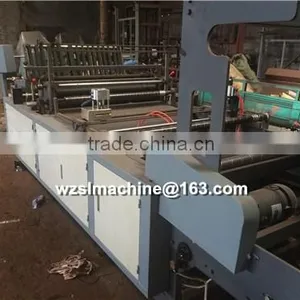

Help CenterZipper Lock Plastic Bag Making Machine For Sale
Related Products
-
New Type Plastic Flower Bag Making Machine, Flower Sleeve MachineNegotiableMOQ: 1 Set -
HDPE Fully Automatic Double Layers Plastic Glove Making MachineNegotiableMOQ: 1 Set
-
Automatic Plastic Air Bubble Film Bag Making Machine Quality ChoiceUS$ 5,000 - 8,000MOQ: 1 Set
-
PLC Automatic Zipper Bag and Stand up Pouch Three Side Seal Bag Making MachineNegotiableMOQ: 1 Set
-
Central Sealing Bag Making MachineNegotiableMOQ: 1 Set
Plastic Bag Making Machine For Sale
Skype: yangshiyan310
What's App: +86-13958831773
Application:
This machine is applied to make the printed and uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double step motor fixed length and the liquid crystal screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.It's traced by 2 photocells to make the printing very exactly.
Technical Description:
1.The whole machine adopts microcomputer control and material-pulling by stepping motor(Servomotor control system can also be selected and equipped).
2.Arbitrary fixed-length,accurate and stable step photoelectric tracking stopping automatically when the label is lost,photoelectriccontrol feeding
3.Automatic counting and set able counting alarm.
4.Automatic constant temperature makes the sealing of bag opening firm and smooth.
5.Non-printing material can make bags in duoble lines by 4rolls feeding,making 4bas in one time.
Material processed:
HDPE/LDPE/LLDPE (as per the quality and usage of the film)
Main Technical Parameters:
MODEL |
SLZDT600 |
SLZDT700 |
SLZDT800 |
Bag Width (Max) |
550MM |
650MM |
750MM |
Bag Length |
100-1200MM |
100-1500MM |
100-1600MM |
Converting Thickness |
0.01-0.10mm |
0.01-0.10mm |
0.01-0.10mm |
Accuracy Length |
±1 |
±1 |
±1 |
Speed Cut/Min |
30-140 |
30-140 |
30-140 |
Motor |
1.1kw/1.5HP |
1.1kw/1.5HP |
1.1kw/1.5HP |
Heater |
2kw |
2.2kw |
2.3kw |
Power Required |
4.3KW |
4.5KW |
4.6KW |
Dimension (L×W×H) |
2800×1180×1900MM |
2800×1280×1900MM |
2900×1380×1900MM |
Gross Weight |
600kg |
700kg |
800kg |

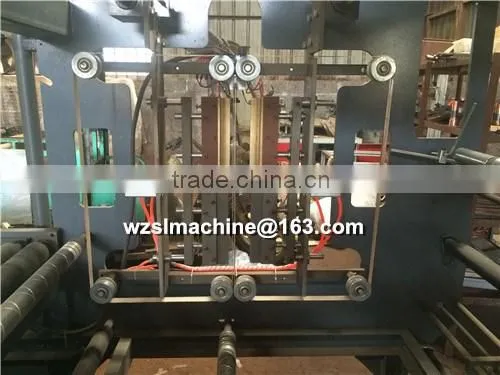

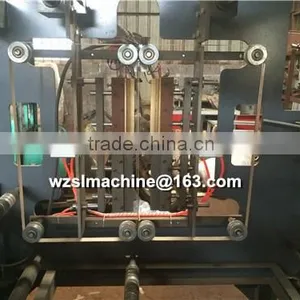

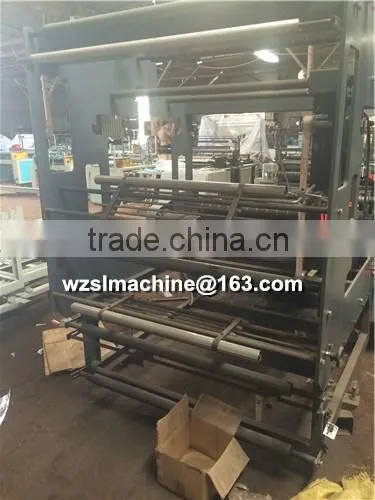

More Pictures:
The following machines are whole set of making plastic bags. If you are interested in any of them, please click them to get more information to make plastic bags
Recycling machine: to make pp/pe granules with wasted plastic bags
Film blowing machine: to make plastic film with pp/pe granuel
Flexo printing machine: to print 2 or 4 or 6 colors in plastic film
Bag making machine: to make flat bag, t-shirt bag, garbage bags
Punching machine: to make T type and D type handle
WELCOME TO CONTACT US FOR MORE DETAILS, MOST COMPETITIVE PRICE FOR YOU!
If the machine doesn't meet your requirements, please feel free to let me know. I will always be pleased to help you find the right one.
