Specifications
Paper roll /paper cup digital Gravure printing machine1.PLC controlling system,
2.The man-machine interface
3.ISO9001 CE
SL-1000 Paper roll /paper cup digital Gravure printing machine
Application
Gravure Printing Machine in this series are applicable for continuous multi-color printing on rolling materials in good printing performance such as cellophane, BOPP, PET, PVC, PE, aluminum foil, and paper, broadly applied for all types of super-quality printed matters.
Main Feature
1.Unwinder/Rewinder Turret Type.Auto Cutting/Splicing.
2.Seven Vector Motor+YASKAWA Inverters Tension Control System, Siemens PLC Program.
3.Vertical Auto Register System With Web Video Inspection.
4.Shaft Less Printing Cylinder Loading Device. Printing Cylinder Is Fixed By Shaft-less Air Chuck.
5.Doctor Blade With Dual Gas Cylinder Pressing, Horizontal Movement Drive By Motor.
6. Pneumatic Ink Auto Circulating System
7.Sealed Hot Wind Circulation Oven, Automatic Constant Temperature, Diesel Oil Air-stove Or Electrical Heating For The Mrying methods.
Main parameter | |
Direction |
From left to right |
Printing color |
8 color |
Max width |
850mm |
Max machine speed |
100m/min(Φ200mm) |
Max printing speed |
80m/min(Φ200mm) |
Diameter of printing cylinder |
Φ120mm-Φ300mm |
Precision of register |
Lengthwise ±0.2mm (Auto register tracking) |
Cross direction ±0.2mm (Manual control) | |
Unwinding diameter |
Φ1500mm |
Paper collect way |
Web material (Printing surface outside) |
Shaft |
Air shaft |
Paper core diameter |
3" or 6" |
Tension |
20-60Kg |
Precision of tension |
±0.5Kg |
Air supply |
0.8Mpa |
Pressing force |
2500kg |
Doctor blade swing capacity |
±5mm |
Heat way |
Electricity / Steam (Customer build) |
Water cooling pressure |
2-3kg/cm2, 18-20°C |
Main motor power |
22kw |
Main power |
210kw (Electric heating) 130kw (Steam heating) |

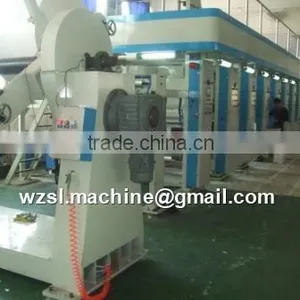

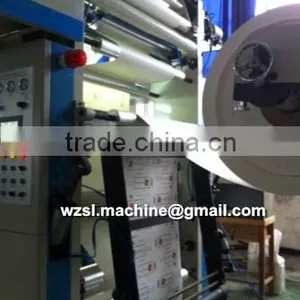

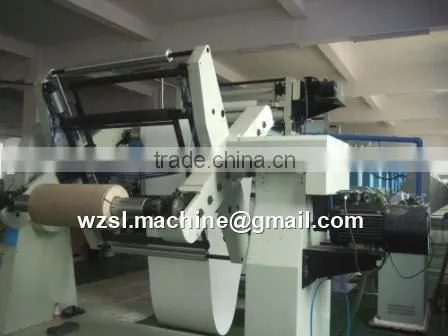

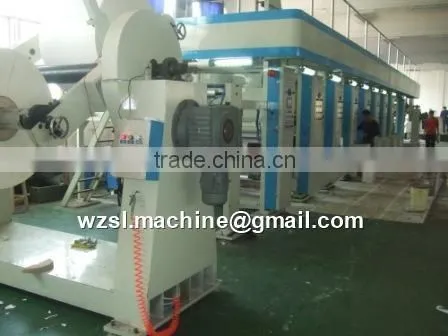

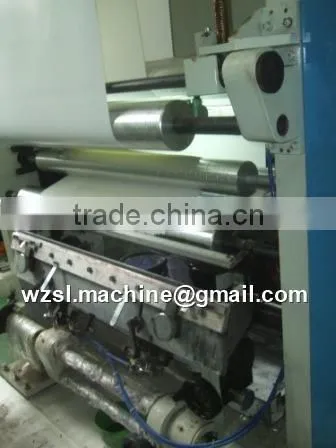

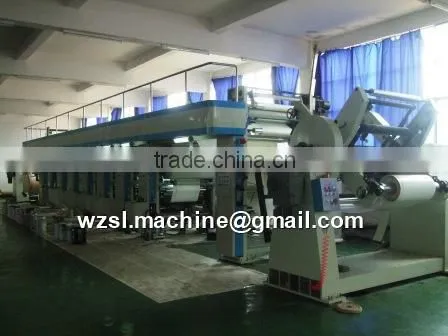

Machine Photos For Reference:
