Specifications

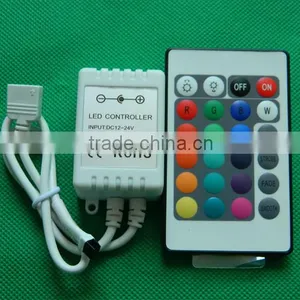

12V/24V 3Channel 6A IR LED RGB Controller 24keys
fessional manufacturer
2.more than 40 mode
3.12v, 24v
4.CE&RoHS
Product Description:
24-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.
NEW function:can reorder the wire sequencing (+RGB,+GRB,+BRG)by the remote control,and now the mode changing is more soft and smooth.
Technical Parameters:
Working temperature |
-20-60°C |
Supply voltage |
DC5V, 12V,24V optional (specify the required voltage on orders) |
0utput |
3 channels |
Connecting mode |
common anode/cathode optional (specify the required voltage on orders) |

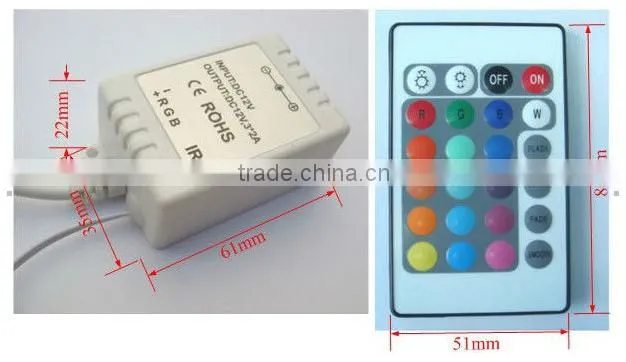

External dimension |
L61*W35*H22 mm |
Packing size |
L90ΧW60ΧH40mm |
Net weight |
60g |
Gross weight |
65g |
Static power consumption |
<1W |
Output current |
<2A(each channel) |
Output power |
5V:<30W, 12V:<72W, 24V:<144W |

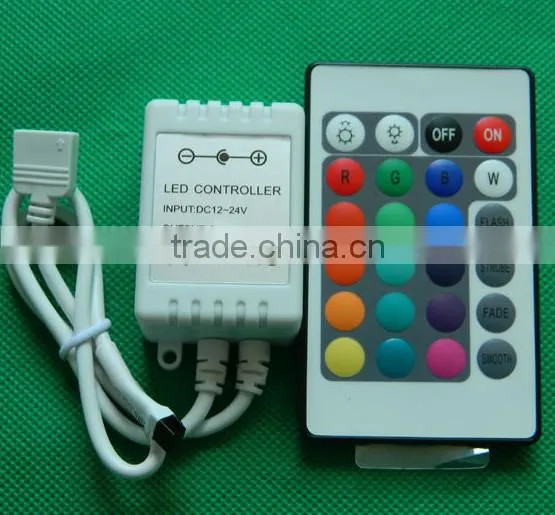

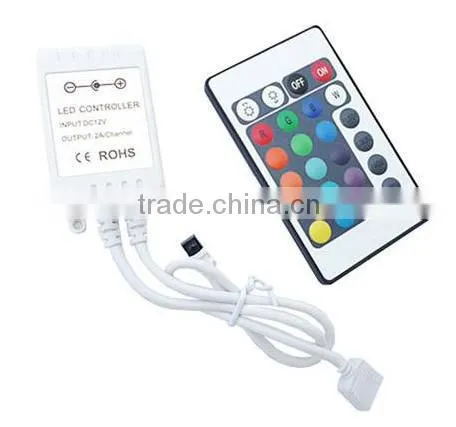

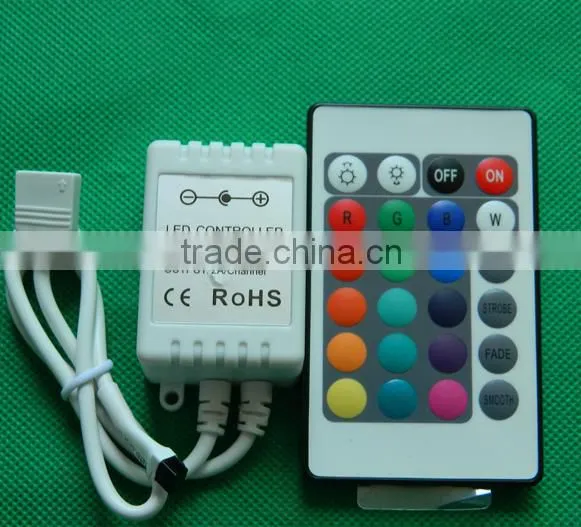

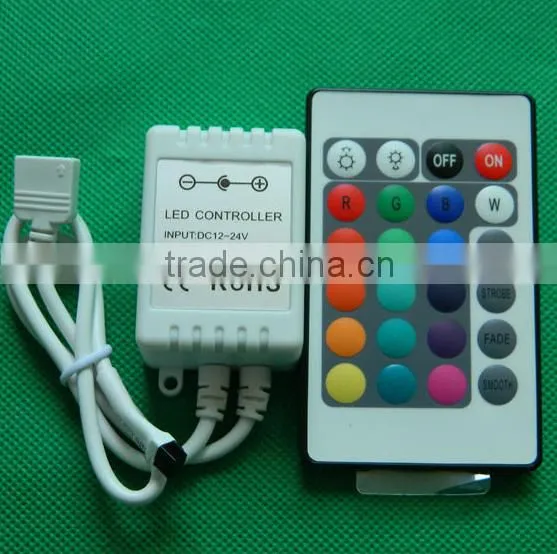

IR 24 keys RGB controller:

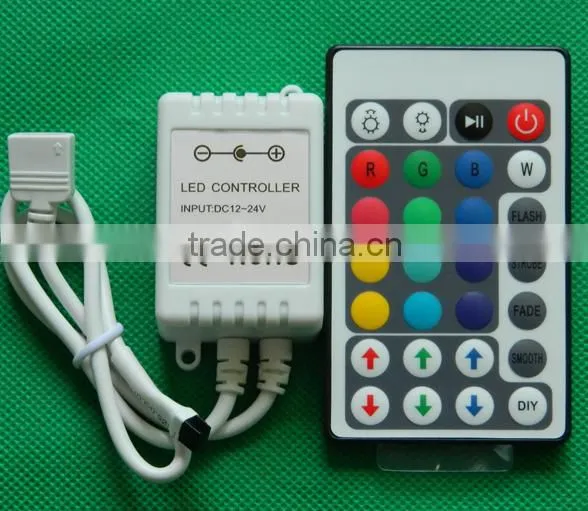

IR 28 Keys RGB controller :

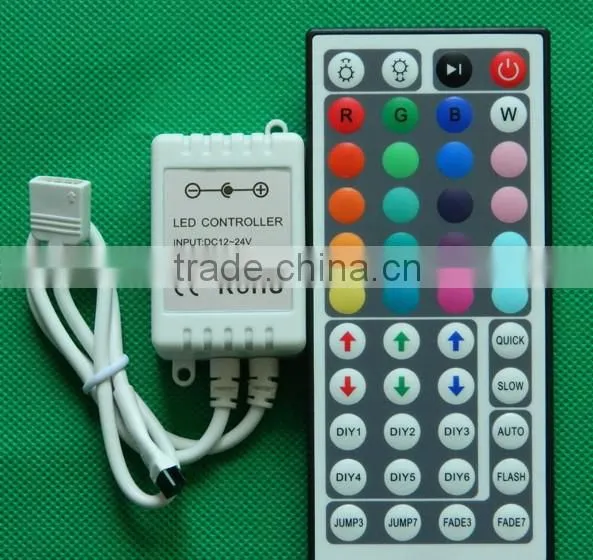

IR 44 keys RGB controller:
Cautions:
1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.
2. Before using the infrared remote, the insulating film should removed.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. This product is not to overload;
5. Warranty of this product is two year, but exclude the artificial situation of damaged or overload working.
