Best seller DC12V LED RGB Amplifier
DC12V RGB LED Amplifier
1,Voltage:12V-24V
2,Output:3 ch*10A =30A 360W
3.2 years warranty
This RGB amplifier is suitable for all kinds of constant voltage led RGB controller. it can enlarge the led controller single through the RGB to receive the PWM(pulse width modulation),and output the single to the load ,then it can make the same effect with the controller.when add each additional amplifier, can connect and controlled twice more LED lights.theoretically , one controller can connector with thousands of this RGB amplifier, and can make the same effect.
Specifications:
| Working temperature | -20-60°C |
| Input voltage | DC12~24V |
| Output | 3 circuit |
| Connection mode | Common anode |

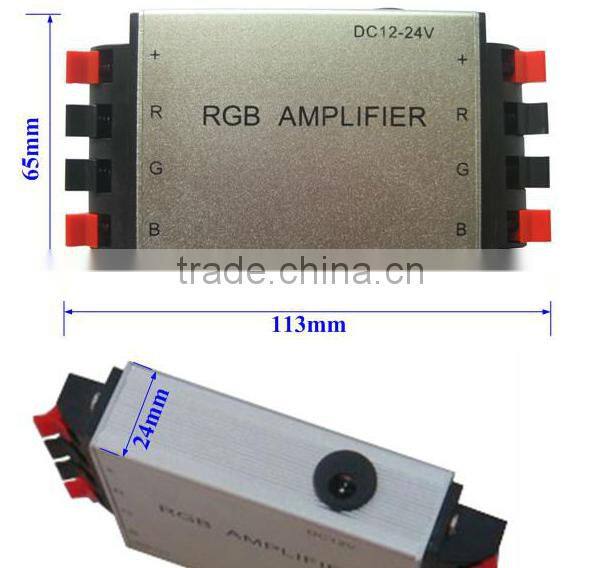

| product’s size | L113×W65×H24mm |
| package size | L117×W72×H64mm |
| Net weight | 100g |
| Gross weight | 125g |
| Static power consumption | <1W |
| Output current | 4A/CH*3CH=12A |
| Output power | 12V: <144W;24V: <288W |
Connection description:
1.Power input interface:
Adopt the 5.5*2.1mm DC plug connector

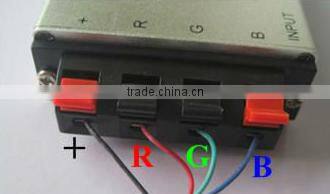

2.Signal input interface:
Adopt clamp connector,easy for connection
3 .Load output interface:
Adopt clamp connector,easy for connection
Direction for use:
Connect the input and output wire in sequence according to the specification one the label of the amplifier, make sure that no short circuit phenomenon,then connect the amplifier to the DC12V/24V power supply , and used with the led light , the wiring diagram are as follows:

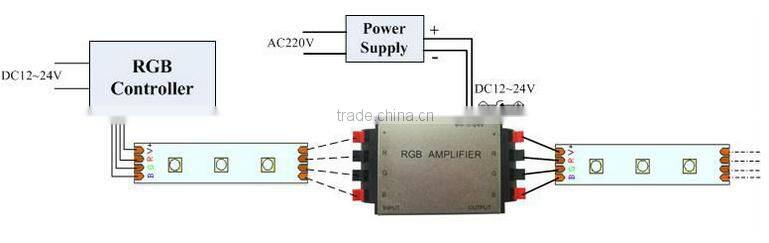

application circuit 1:

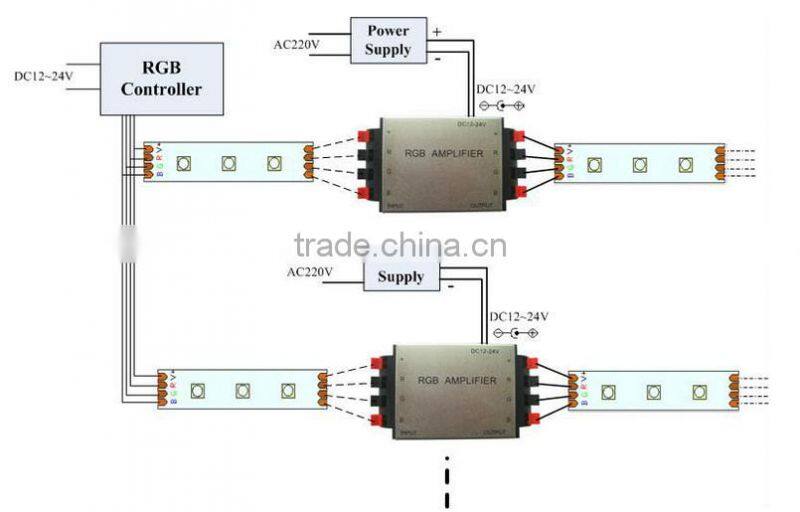

Application circuit 2:
Cautions:
1,This products Input voltage is DC12-24V,other input voltage are not allowed.
2,Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.
3,Overload are prohibited.i
