2.4g rf rgb led controller manual wifi rgb controller
Specifications
4-Zone RGB(W)Remote LED Controller:
ntrolled by IOS & Android system
2.Remote distance: 30M
3.2.4G RF, 4-Zone Controller

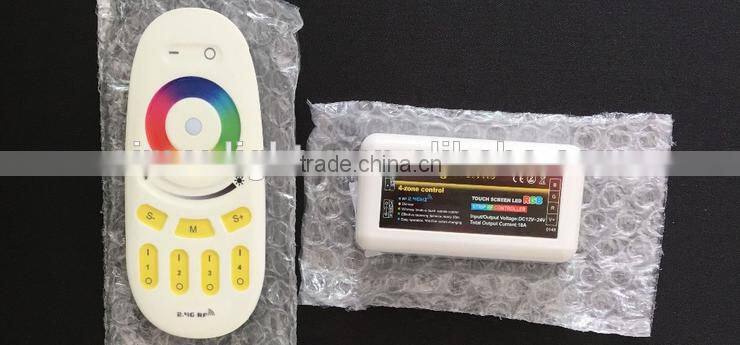

2.4G 4-Zone RGB(W)Remote LED Controller
2.4G high frequency wireless remote controller,low power consumption,long distance transmission,strong anti-interference ability,high speed telecommunications,etc.
fashionable and elegant looking,with simple and practical functions of color changing and brightness dimming,the capacitive touch screen desigh make the remote so easy!
|
Remote |
Size | 120*52*20mm |
| Power | AAA battery * 2pcs |
|
| Material |
ABS | |
| Fabrication Processing | Multicolor Priting & UV varnish | |

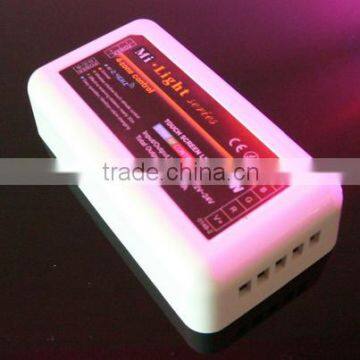

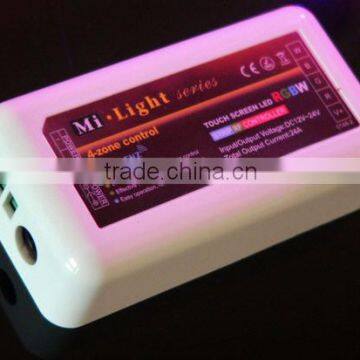

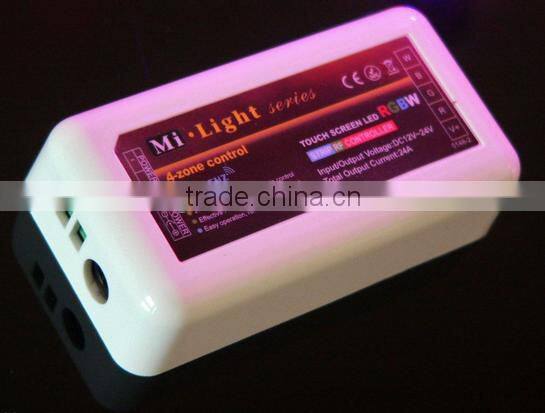

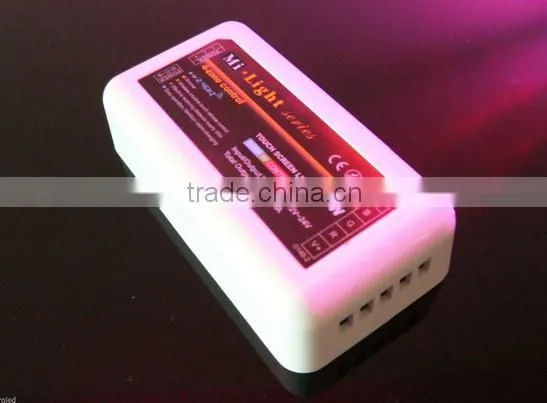

| Controller |
Size |
85*45*23mm |
| Working Voltage | DC12V-24V | |
| Controller Way | RGB three channels / RGBW four channels | |
| Max Load Per Channel | 6A | |
Output Connection |
Common anode | |
| Telecontrol Distance | 30 Meters | |
| Programs | 9 Kinds |

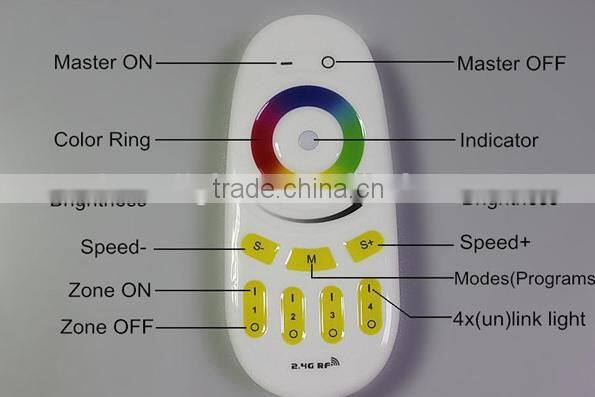

Function of Keys:
Program List:
Program 1
RGBW Fade In & Fade out--- the color red, green, blue and white one after another.
Program 2
Color Flash---red, green, blue, white, yellow, purple flashes to change.
Program 3
Disco---Different colors strobe and flash to change.
Program 4
Red color Ramp up and Flash---red color brightness from 0% - 100% and shuts down, then flashes three times.
Program 5
Green color Ramp up and Flash---green color brighteness from 0% - 100% and shuts down, then flashes three times.
Program 6
Blue color Ramp up and Flash---blue color brighteness from 0% - 100% and shuts down, then flashes three times.
Program 7
Color Change + Flash---several colors fade into each other and then flash randomly.
Program 8
Fade in and Fade out---different colors fade into each other.
Program 9
Strobe White---Just white color flashes up.
Linking new lights to the remote controls:
1. Choose which zone you want to assign the light (1 to 4 zone)
2. Switch off the main power supply of the light in the selected zone with the main switch or pull the plug from the socket.
3. Now switch on the light again and within 3 seconds shortly press one of the "Zone ON" buttons one time on the remote control.
4. When this link operation is successful, the light slowly blinks 3 times on and off.
Unlinking the white lights:
1. Check via the remote control to see which zone (1 to 4) is already linked to a light.
2. Switch off the main power supply of the light with the main switch or pull the plug from the socket.
3. Now switch on the light again and within 3 seconds press 5 times quickly and shortly on one of the "Zone ON' buttons which you want to link.
4. When this unlink operation is successful, the light quickly blinks 10 times on and off.

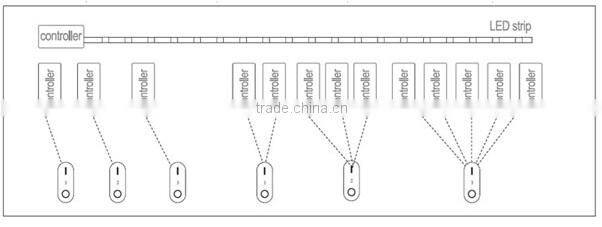

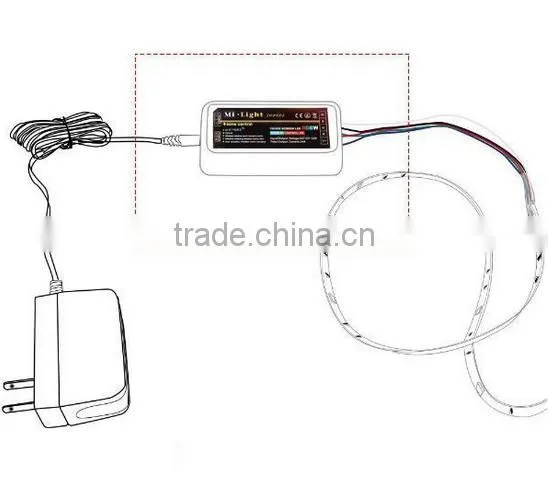

Multi zone Connection:

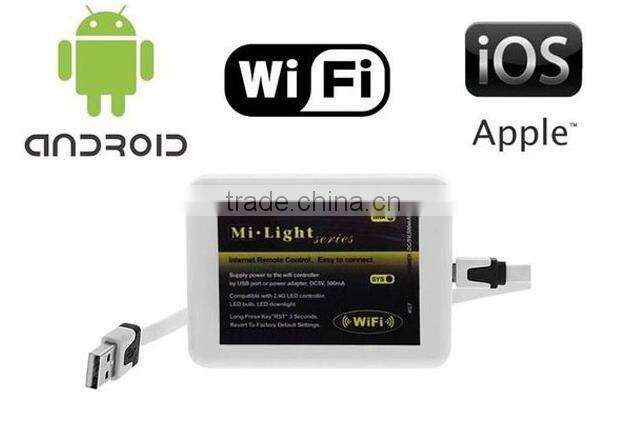

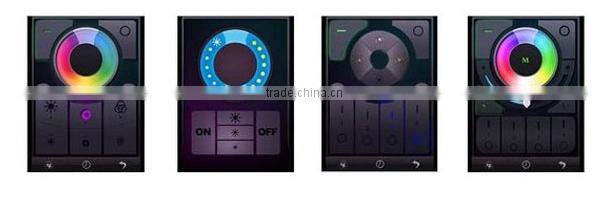

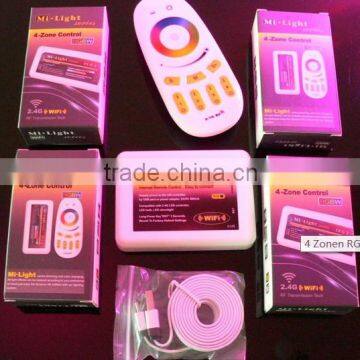

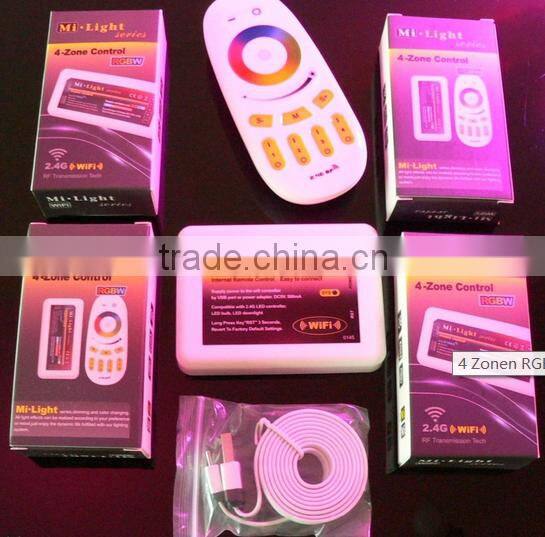

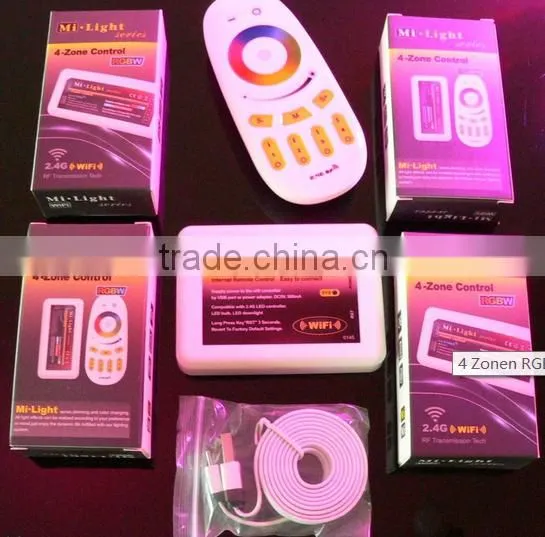

WIFI Controller:

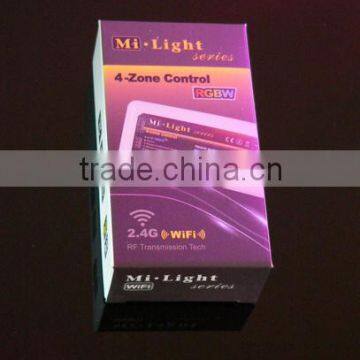

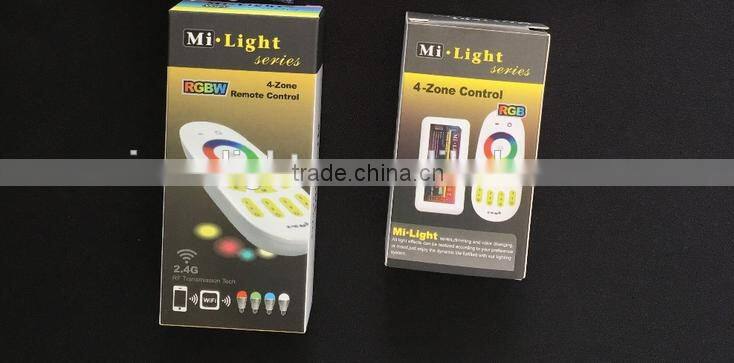

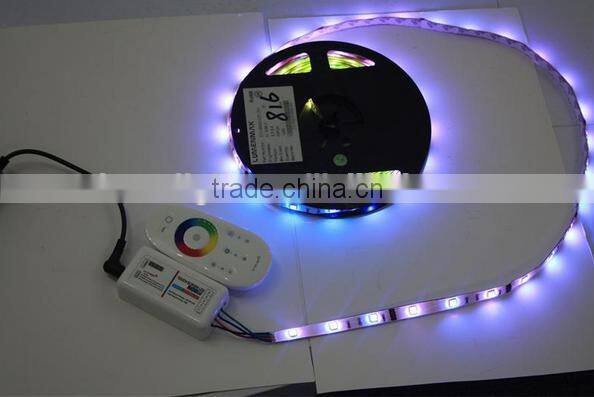

Product showing:
