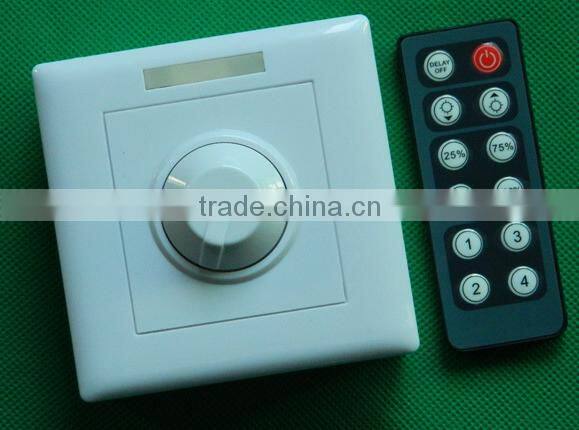

Hot RF remote control 1 channel dimmer
This led dimmer used to control a variety of led lamps as the light source, For example, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; With competitive price, easy wiring, simple to use etc.; Through the infrared remote control and dimmers on the knob to adjust brightness; Gray level 255; with custom features, With 30 seconds delay OFF function and a fixed gray scale output.

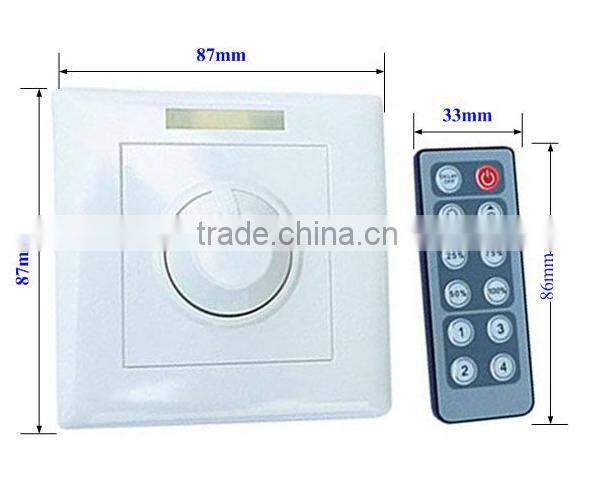

External Dimension
Technical Parameters
Working temperature |
-20-60°C |
Supply voltage |
DC5V, 12V~24V optional (specify the required voltage on orders) |
0utput |
1 channel |
External dimension |
L87*W87*H53 mm |
Packing size |
L106xW106xH66mm |
Net weight |
150g |
Gross weight |
200g |
Static power consumption |
<1W |
Output current |
8A or 16A each channal optional |
Output power |
8A: 5V<40W; 12V < 96W; 24V<192W 16A: 5V<80W;12V < 192W;24V<384W |
Direction for use

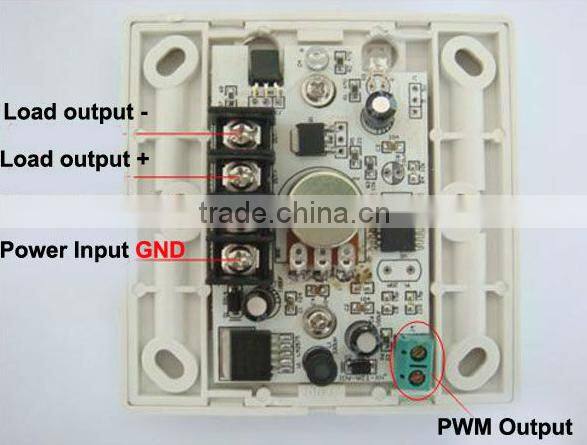

Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
When operation, the remote control facing the infrared receiver, ensure that there are no obstructions between remote controller and receiver; When dimmer receives an effective signal from the infrared remote control, the red light on the upside flickers; There are two methods in Dimming:

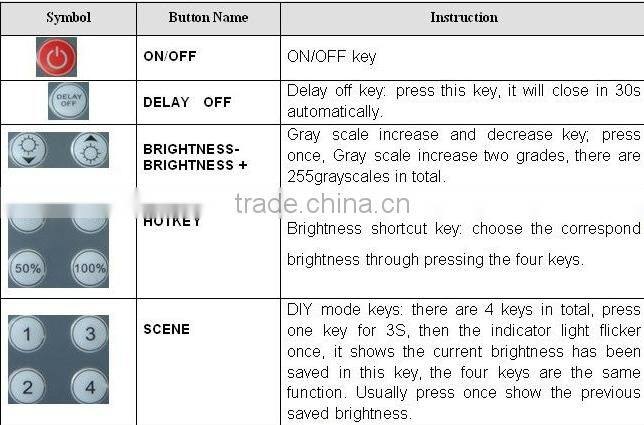

(1).Infrared remote control adjustment mode; the 12 key features as follow(range as the keys of remote controller)

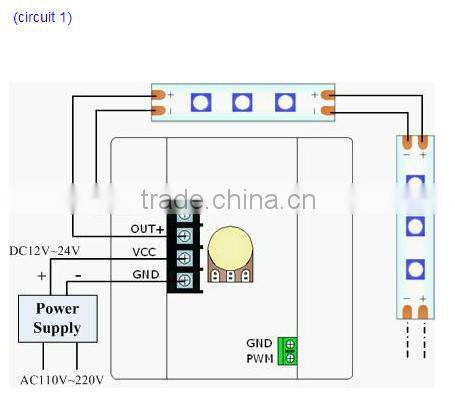

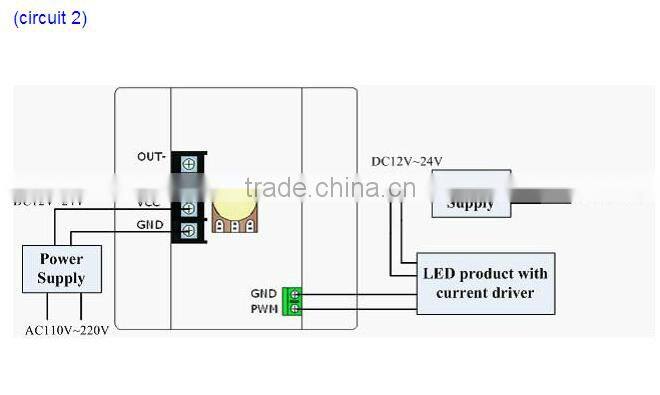

Typical Application Circuit:
