1 Summarize

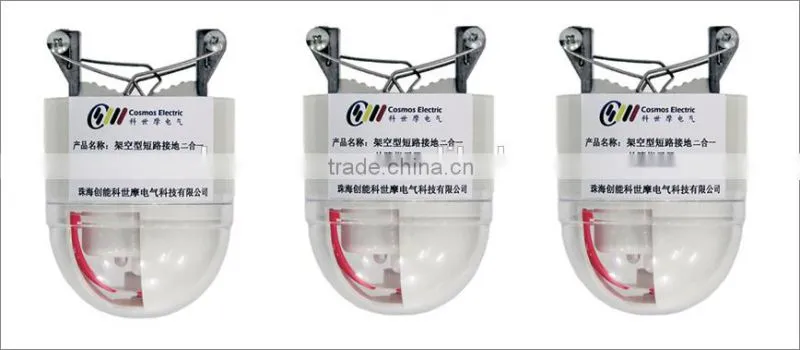

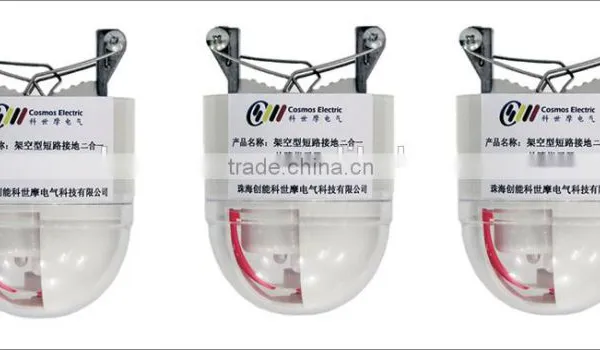

CSM-AK2 mounts on 6-35 KV power transmission and distribution line, used for indicating the position of fault current section. When the fault happens, the patrol personnel can locate the fault section and find out the fault point rapidly depends on the red alarm display of the fault indicator. It can greatly improve the work efficiency and shorten the time of power outage. It makes the transmission reliable.
2 Feature
Fault indication |
When the line is normal, the flag indication area is white. When the fault happens, the flag indication area is red.
|
Working |
It can be mounted under live conditions directly without maintenance.
|
Good adaptation |
Automatic judgment, it can show the indication as red flag at day and led flash at night. In this way it can improve efficiency.
|
Strong anti-interference |
The signal is not affected by the line, magnetizing inrush current, high order harmonics, current fluctuations, especially the ring of the cable distribution capacitor.
|
Reset automatically |
The indicator can reset automatically after the fault indication with the impact of the recovery power transmission.
|
Be mounted under live conditions |
It can be mounted under live conditions with the help of an adapter and a hot stick.
|
3 Technical parameters
Applicable voltage level: |
U≥6KV |
Applicable wire current: |
I≤1000A |
Action response time: |
0.06S≤T≤3S |
static power consumption |
≤10μw |
Reset time: |
12,24 hours optional
|
Operation: |
≥3000times
|
Ambient Temperature: |
-40℃≤T≤+75℃ |
Weight |
460g |
Applicable conductor wire diameter: |
25mm2≤d≤400mm2
|
||
4 Applied range
- Install the indicators at the middle of a long line or the entrance of branch: they can indicate the fault section and fault branch.
- Install the indicators at the exit of substation: they can judge if the fault happens indoor or outdoor.
- Install the indicators at the high voltage incoming line of the user’s distribution transformer: they can judge if the fault is caused by the user.
- Install the indicators at the junction of the cable and overhead line, they can distinguish if the fault is located at the cable side.
