Multi-purpose Lathe Drilling Milling Machine Multi-purpose Combo Drilling Milling Lathe Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Anhui Yiming Plastic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 300mm

Place of Origin Anhui, China

Model Number AT 300

Voltage 220V/110V

Power(W) 0.55 kw

Dimension(L*W*H) 1650x700x900 mm

Weight 400 kg

Certification CE Certificate

After-sales Service Provided Engineers available to service machinery overseas

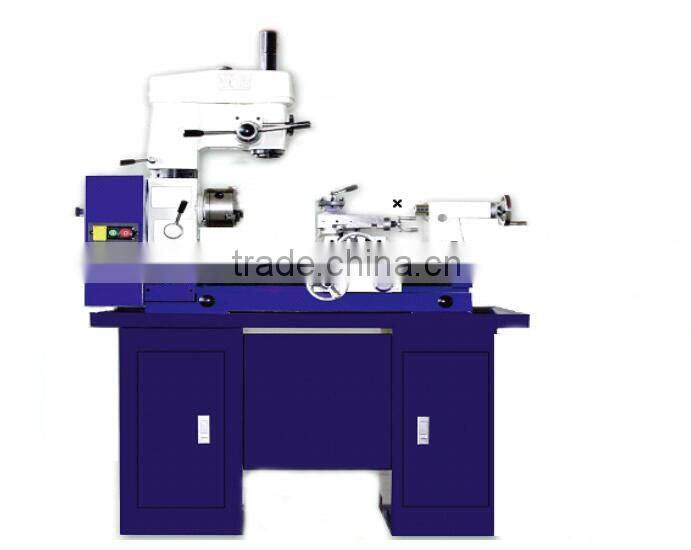

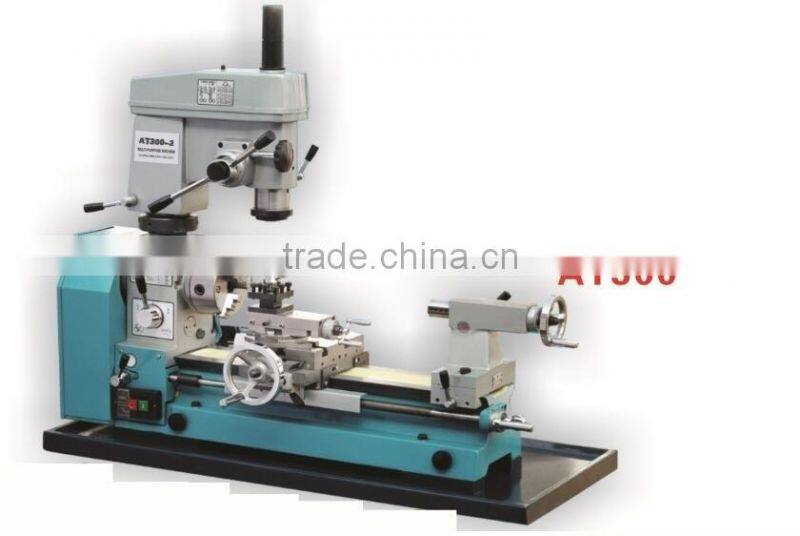

multi-purpose lathe drilling milling machine multi-purpose combo drilling milling lathe machine

1. General Description

This machine is multi-purpose lathe machine of bench type , it is used to lathe, driil and mill .

What's more, it is controlled by two motors . it can be realized power feed on longitudinal or crosswise,

no stop to realized the functions of revolution and negative . It is passed 3 kinds safely authetication of

CE,: 89/392EEC; 93/68EEC; 89/336EEC directives .

2. Data Detail

Cutting	AT 300- 2	AT300-4	AT300 -5	Drilling & Milling	AT 300-2	AT 300-4			AT 300 -5
Max. Swing diameter over bed	300			Max. Drilling capacity	15
Max. Length of work piece	470			Distance from bench to spindle nose	170-250
Max. Swing diameter over tool carrier	140			DATtance between spindle center and the surface of column	175
Spindle Bore	26			Swivel-angle of headstock around column	360
Taper of hole in spindle morse	NO.4			Mill and drill headstock vertical lifting	80
Max. Cross stroke over tool carrier	160			Spindle speed step	12
Max.Long stroke over small tool carrier	80			Spindle speed scope (r/min)	125-1600 r/ min
Metric thread kinds on processing	14			Bench dimension (mm)	200x150			425x150
Metric thread pitch on processing	0.5-3 mm			Taper of hole in milling spindle morse	NO.3
Inch thread kinds on processing	20			Stroke on spindle hole	80
Inch thread pitch on processing	11-40 1/ n ' '			Electric motor (KW)	0.55
Longitudianl feed on spindle tool carrier	0.075-0.15/ r			Net Weight (KG)	160		180			190
Taper of hole in tailstock	NO. 3			Overall dimension (mm)	1060x540x750
Max. Stroke on taper hole	40 mm
Spindle speed step	6
Spindle speed scope (r/min)	160-1600
