Mini Bench Lathe Machine For Home

Mini Bench Lathe Machine For Home thumbnail-1
Mini Bench Lathe Machine For Home photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Anhui Yiming Plastic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 160 mm
Place of Origin Anhui, China
Model Number CQ 160
Voltage 220V/110V
Power(W) 350 w
Dimension(L*W*H) 630 x 310 x 340 mm
Weight 38 Kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

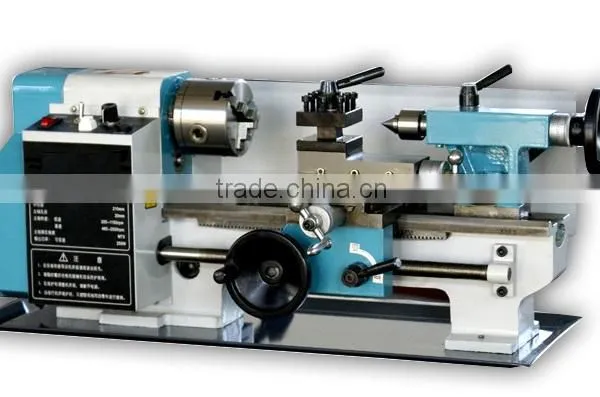

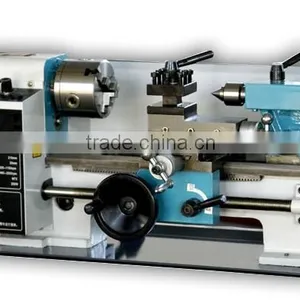

CQ160 Mini Bench Lathe Machine



Features:

• Robust cast iron construction
• Variable speed up to 2500 rpm
• Complete steel change gears
• Automatic longitudinal feed



Specifications



Specifications

CQ160

Swing over bed

180 mm

Swing over cross slide

105 mm

Distance between centers

310 mm

Spindle bore

20 mm

Spindle speed variable ( Low speed )

100 – 1250 rpm

Spindle speed variable ( High speed )

100 – 2500 rpm

Spindle taper

MT3

Saddle slide travel

270 mm

Cross slide travel

60 mm

Metric threads

0.4 – 2 mm

Inch threads

52 – 12 tpi

Tailstock taper

MT2

Tailstock quill travel

40 mm

Motor power ( DC )

350 W

Dimension

630 x 310 x 340 mm

Net weight

38kg

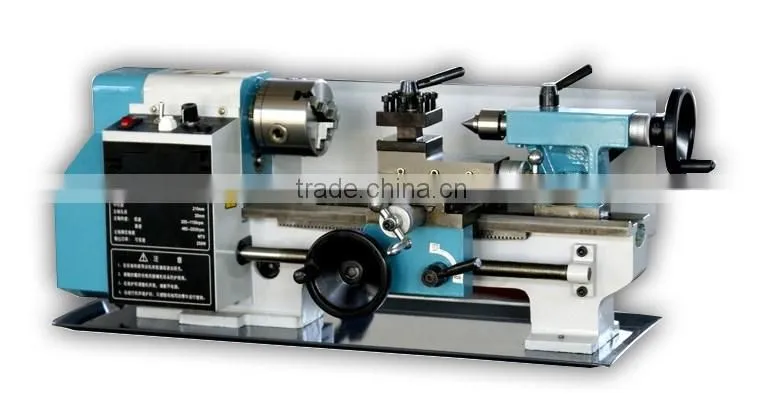

 Product Picture:



Mini Bench Lathe Machine For Home
