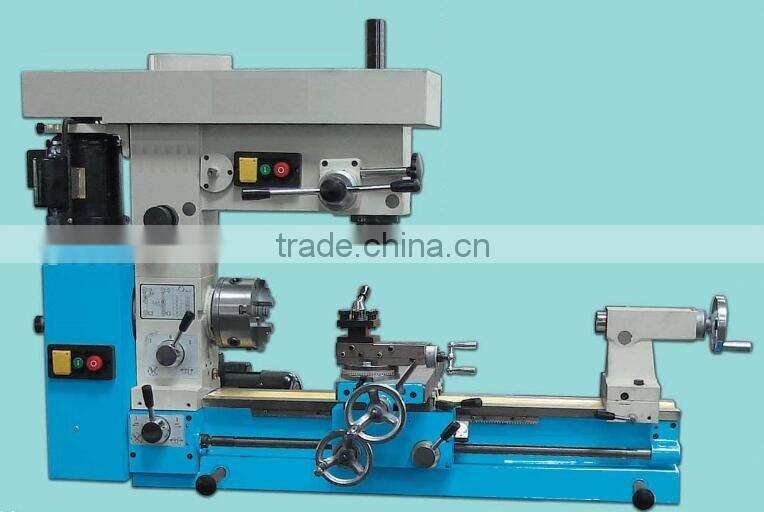

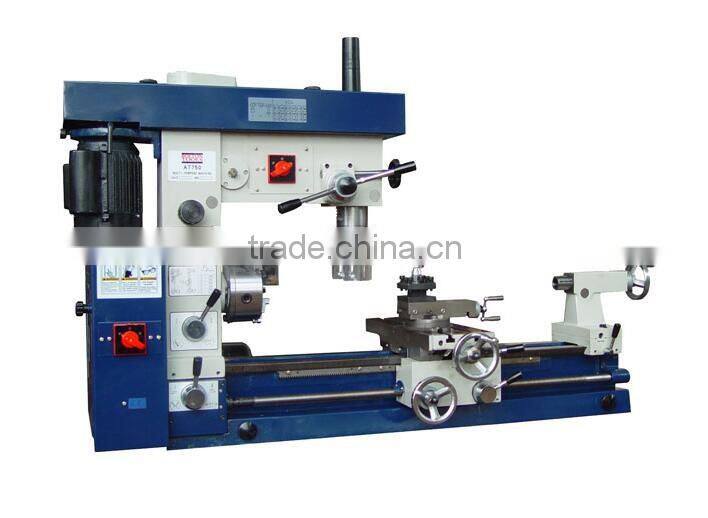

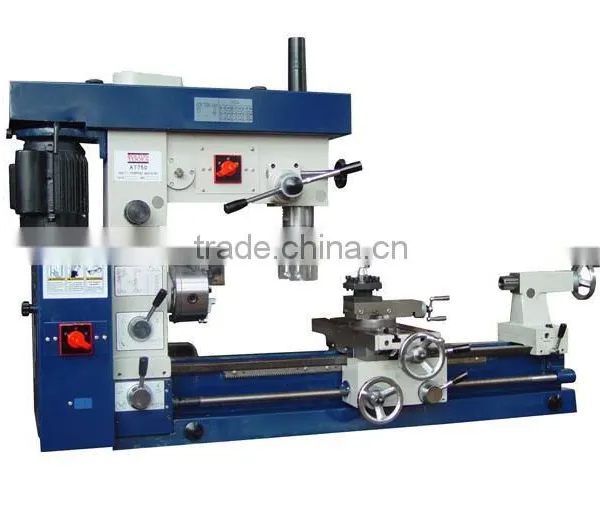

3 in 1 Milling Driling Combo Lathe Milling Drilling Head Lathe

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Model Number:

AT 750

Anhui Yiming Plastic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Model Number AT 750

Type Horizontal

CNC or Not Normal

Voltage 220v/110v

Power(W) 0.55 kw

Weight 270 KG

Certification CE ISO9001

After-sales Service Provided Engineers available to service machinery overseas

3 in 1 milling driling combo lathe milling drilling head lathe

1. General Description

This machine is multi-purpose lathe machine of bench type , it is used to lathe, driil and mill .

What's more, it is controlled by two motors . iT can be realized power feed on longitudinal or crosswise,

no stop to realized the functions of revolution and negative . It is passed 3 kinds safely authetication of

CE,: 89/392EEC; 93/68EEC; 89/336EEC directives .

2. Data Detail

	AT 750		AT 750
Max. Swing diameter over bed (mm)	300	Max. Drilling capacity	20
Max. Length of work piece (mm)	750	Distance from bench to spindle nose ( mm )	240-320
Max. Swing diameter over tool carrier(mm)	140	Distance from spindle center and surface column( mm )	310
Spindle Bore (mm )	26	Swivel-angle of headstock around column	360
Taper of hole in spindle morse	NO.4	Mill and drill headstock vertical lifting ( mm )	80
Max. Cross stroke over tool carrier (mm)	200	Spindle speed step	9
Max.Long stroke over small tool carrier (mm)	80	Spindle speed scope (r/min)	315-2000
Metric thread kinds on processing	14	Taper of hole in milling spindle morse	NO.3
Metric thread pitch on processing	0.5-3	Taper of hole in milling spindle morse	NO.3
Inch thread kinds on processing	20	Stroke on spindle hole	80
Inch thread pitch on processing	11-40 1 / n' '	Electric motor (KW)	0.37
Longitudianl feed on spindle tool carrier	0.003-10.134/ r	Net Weight (KG)	400
Taper of hole in tailstock	NO.1	Overall dimension (mm)	1350x550X740
Max. Stroke on taper hole (mm)	80	Voltage	110V,60Hz/220V,50Hz
Spindle speed step	12
Spindle speed scope (r/min)	160-1600
