Specifications
Hongji Brand zirconia ball mill for sale:-economical
-high efficency
-easy to control
-environment friendly
High quality energy-saving zirconia ball mill with competitive price for sale with ISO 9001 and high capacity from Henan Hongji OEM
Brief introduction of Ball mill:
Ball mill is an efficient machine for fine powder grinding after the crushing process. There are two ways of ball mill grinding: the dry way and the wet way. It is used to grind many kinds of mineral ores and other materials, or to select mine. Ball mill is also widely used in the building and chemical industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).
Ball Mill Working Principle:
Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials into fine powder over a period of several hours. The ground materials are discharged through the discharging board thus the grinding process is finished.
Main technical parameters of Hongji Brand ball mill:
| Model | Speed of bucket (r/min) |
Weight of ball |
Size of feed opening(mm) |
size of outputting feed (mm) |
Production (t/h) |
Power (kw) |
Weight (T) |
| 900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| 900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| 1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| 1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
| 1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
| 1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
| 1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
| 1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
| 2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
| 2200×6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
| 2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-29 | 475 | 56 |

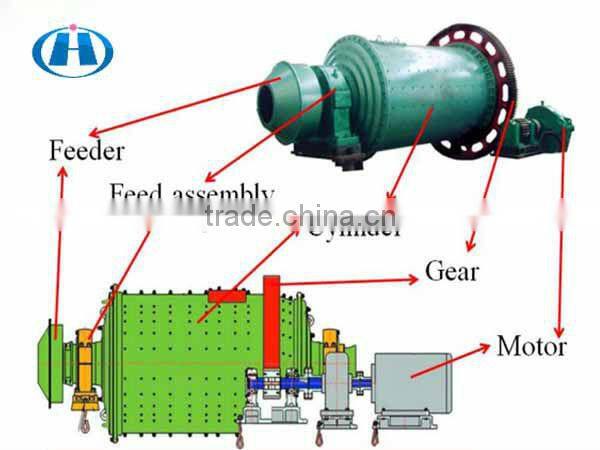

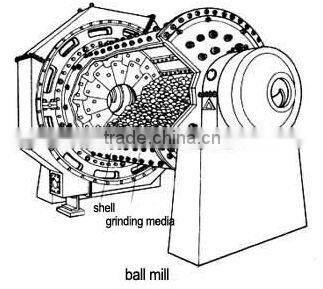

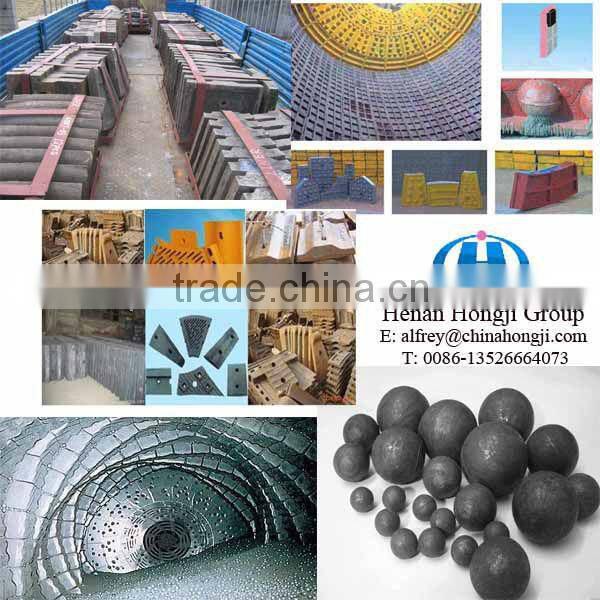

The parts and structures of ball mill:

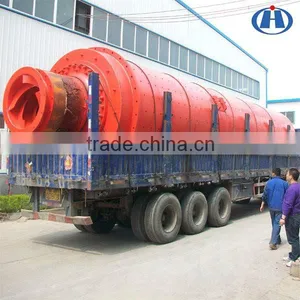

Consignments of Hongji ball mill:

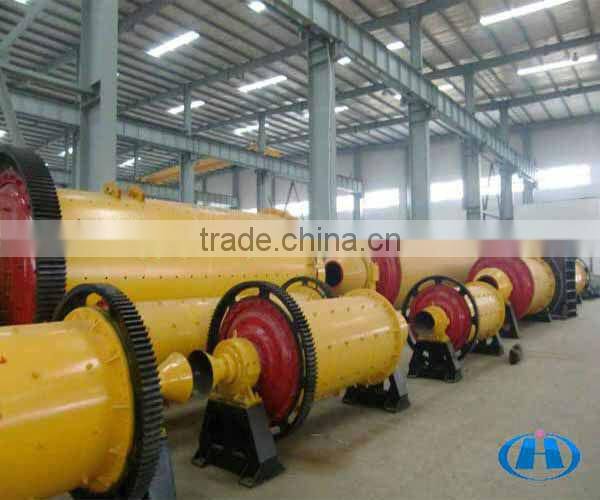

Products Storage:
Production line/Process:
Hongji machine being famous in the whole world:
Certificates of Hongji Brand machine:
Costumers' visitation:

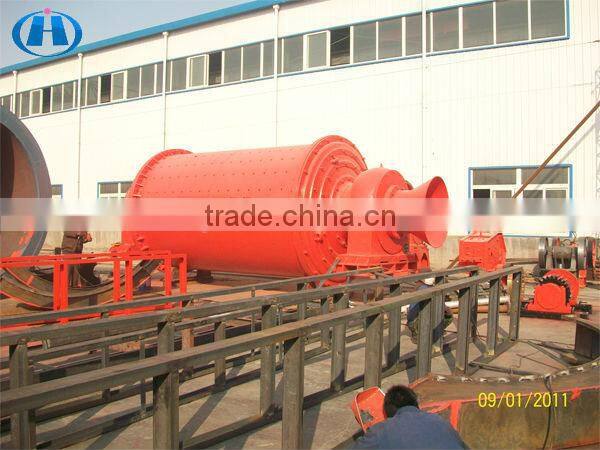

View of our factory:
Pleaes contact us with no hesitation:
Hennan Hongji Mine Machinery Co., Ltd. specializes in manufaturing all kinds of mining machnery equipments with competitive price, ball mill is our main products, they are sold to russia, korea, iran, pakitian market.......We welcome your kind enquiry. (professional zirconia ball mill competitive price for sale)
We also supply all kinds of crushing equipments, vibrating feeder, vibrating screen, rod mil, stone washer, belt conveyor, powder concentrator, mineral mixer, screw classifier, flotation machine, concentration, magnetic ore separator, elevator, shaving table, spire chute, blet vacuum filter, rotary kiln, rotary dryer, DMC pulse bag dus catcher,ect. If you have any interest in our products, kindly contact with us by the upper information with no hesitation.
