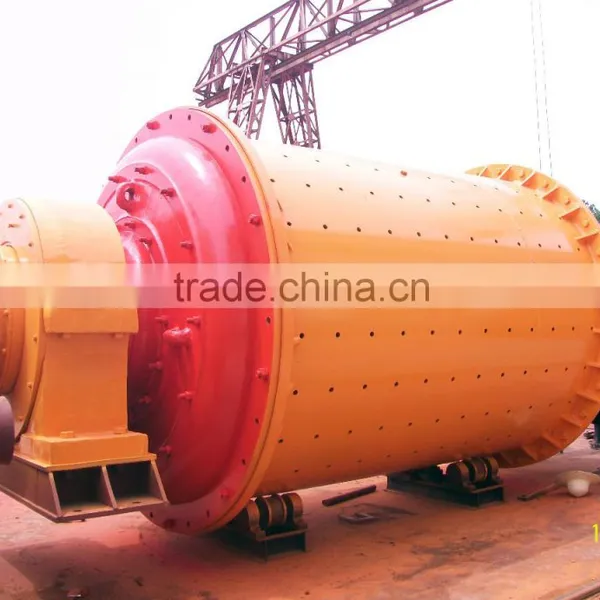

3.2x4.5m Hongji Wet Ball Grinding Mill price
Energy-Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

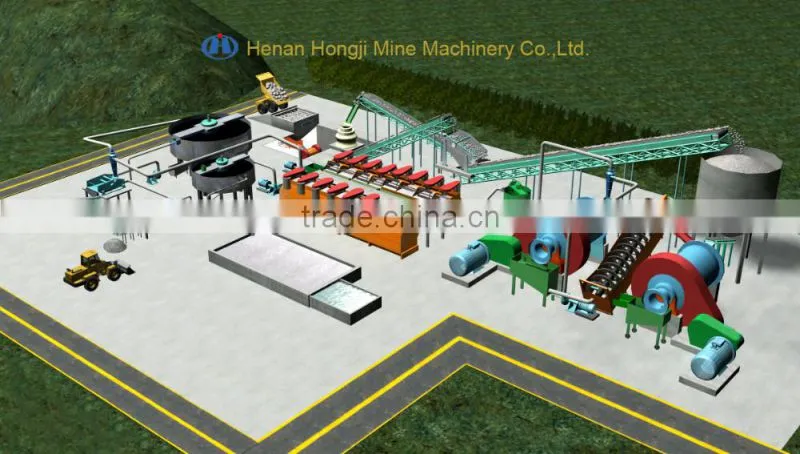

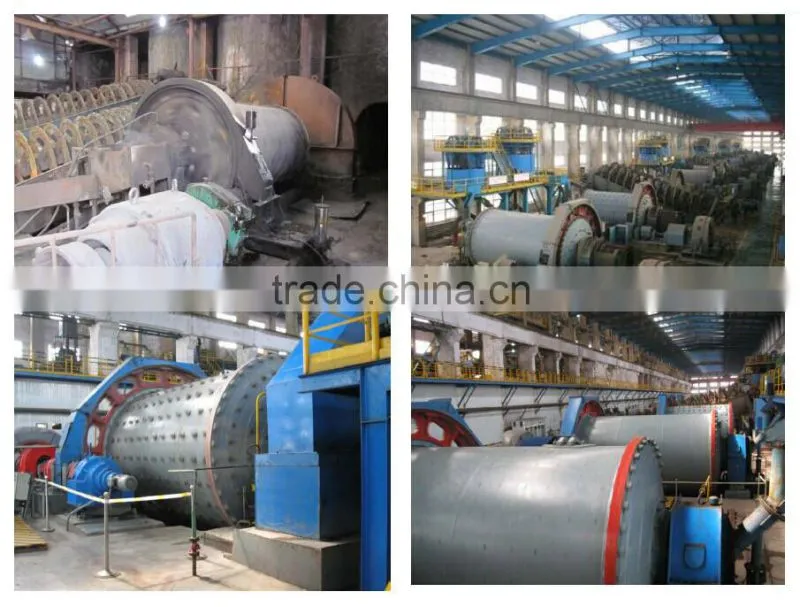

Wet ball grinding mill working in the full production line:
1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

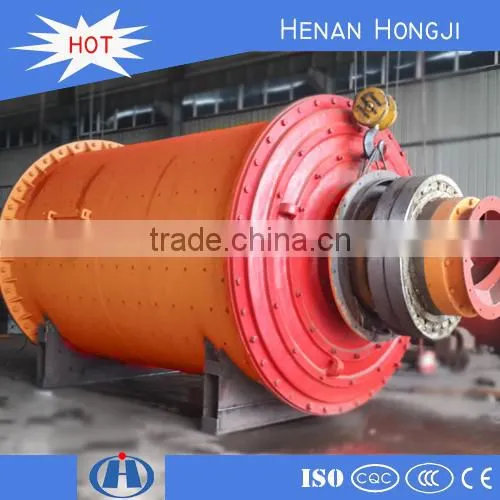

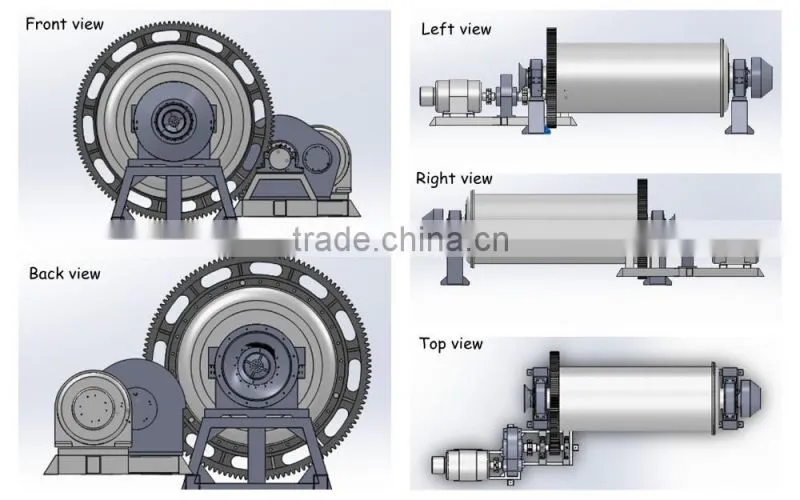

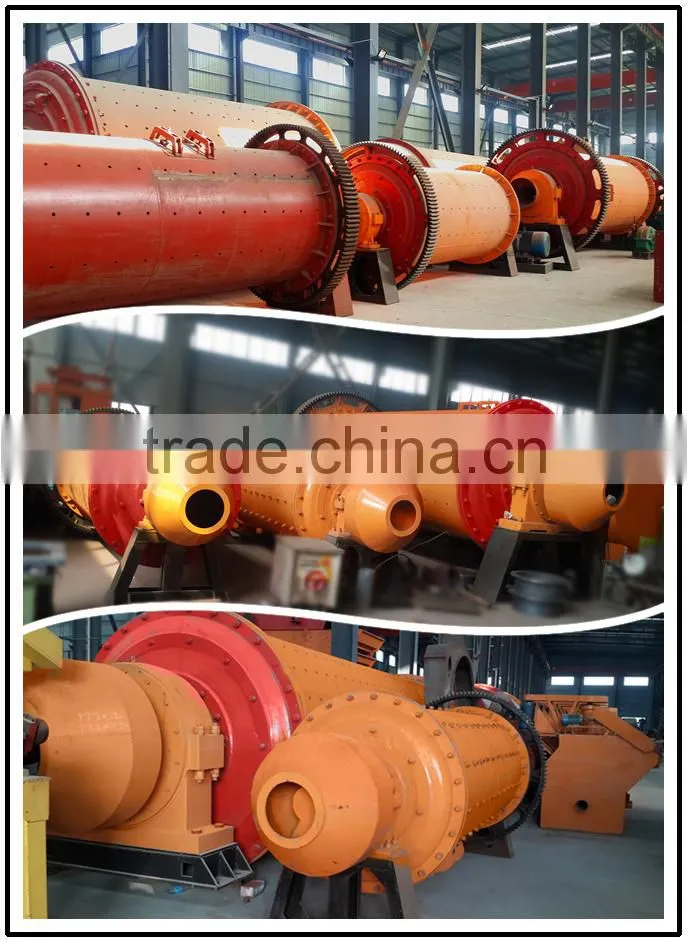

The Energy-Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Model |
Speed of bucket |
Ball load (t) |
Feeding size (mm) |
size of outputting |
Capacity |
Motor Power |
Weight |
900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.6 |
1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
45 |
12.5 |
1200×3000 |
32 |
5 |
≤25 |
0.075-0.4 |
1.6-5 |
45 |
12.8 |
1200×4500 |
32 |
7 |
≤25 |
0.075-0.4 |
1.6-5.8 |
55 |
13.8 |
1500×3000 |
27 |
8 |
≤25 |
0.075-0.4 |
2-5 |
90 |
17 |
1500×4500 |
27 |
14 |
≤25 |
0.075-0.4 |
3-6 |
110 |
21 |
1500×5700 |
27 |
15 |
≤25 |
0.075-0.4 |
3.5-6 |
132 |
24.7 |
1830×3000 |
24 |
11 |
≤25 |
0.075-0.4 |
4-10 |
180 |
28 |
1830×6400 |
24 |
23 |
≤25 |
0.075-0.4 |
6.5-15 |
210 |
34 |
1830×7000 |
24 |
25 |
≤25 |
0.075-0.4 |
7.5-17 |
245 |
36 |
2200×5500 |
21 |
30 |
≤25 |
0.075-0.4 |
10-22 |
370 |
48.5 |
2200×6500 |
21 |
30 |
≤25 |
0.075-0.4 |
14-26 |
280 |
52.8 |
2200×7500 |
21 |
33 |
≤25 |
0.075-0.4 |
16-29 |
475 |
56 |
Henan Hongji Mine Machinery Co., Ltd. is a reputed manufacturer and joint-stock enterprise with import & export rights and mainly produces large and medium-sized mining machinery, metallurgy machinery and building material equipment. We are founded in August 7th, 2008 by restructuring, setting up 4 branch companies and a research center. The history of our group can trace back to Zhengzhou Huaye Industrial Machinery Co., Ltd., which was established in 1969. After more than 40 years' development, we have built into a comprehensive enterprise that comprises R&D, test, manufacture, sales and service functions.

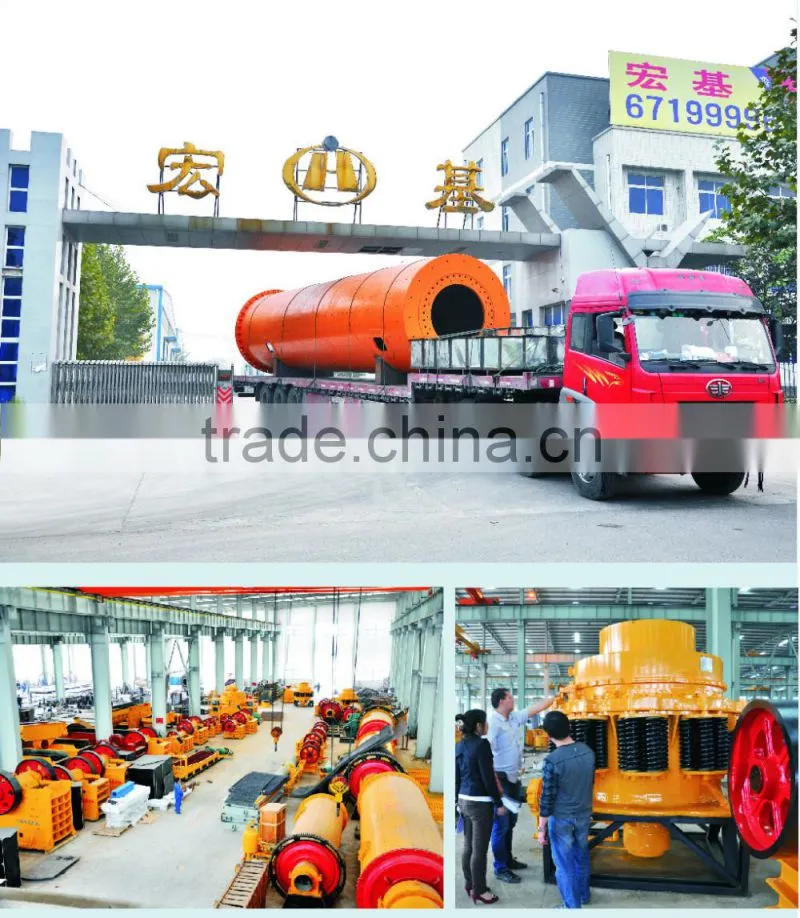

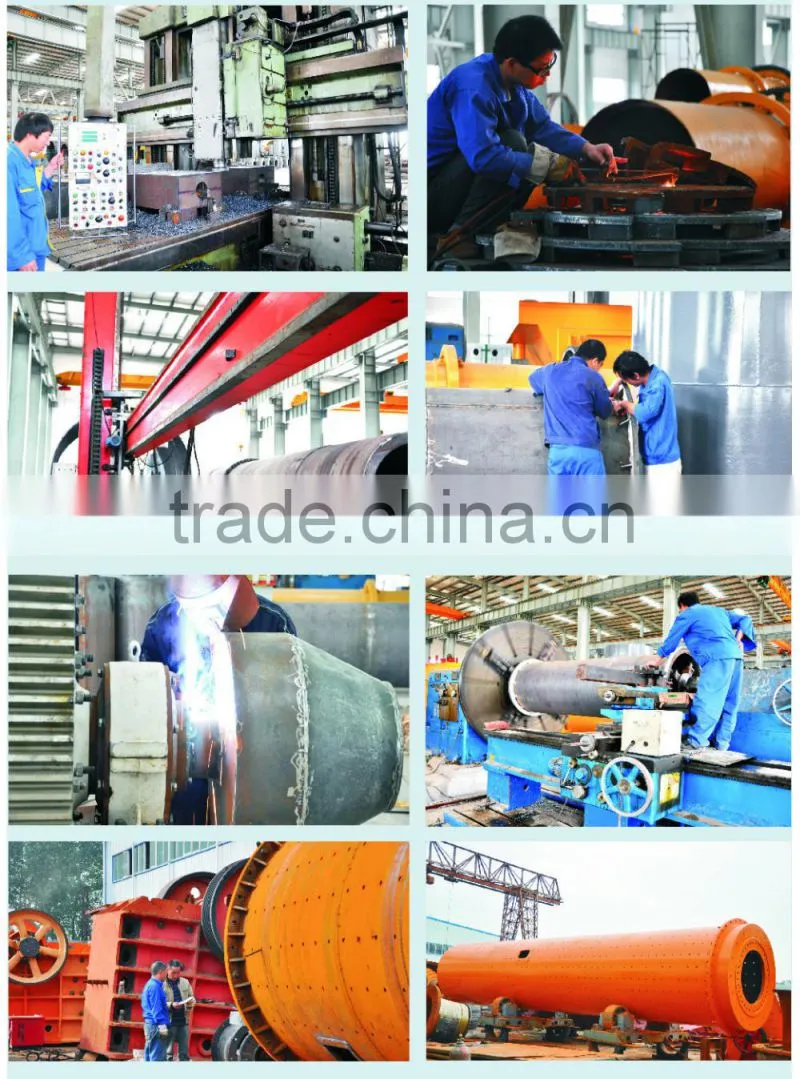

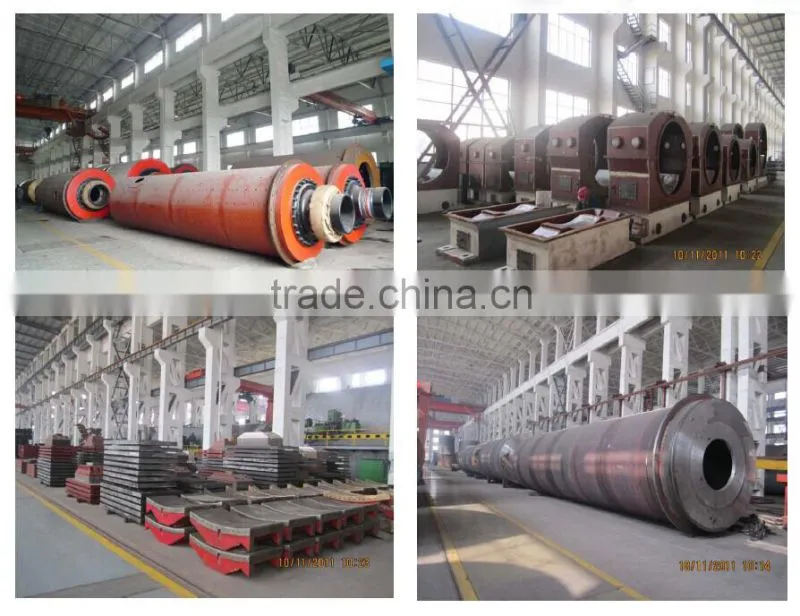

Our headquarters, covering 80,000 square meters, is located in the Mechanical Industrial Park of Zhengzhou City, where is in the transportation junction of central China, owning more than 180 sets of heavy processing equipment with an annul output of more than 800 sets of equipment. Our fixed asset is 80,000,000 RMB (more than 11,000,000 USD).
There are more than 880 employees, including 138 middle and senior engineers and more than 200 skilled workers in our company. We have been cooperating with domestic and foreign scientific research institutes for a long time and established a testing base with domestic and foreign techniques.
Product quality and service is considered as the life of our company. All of our products have attained the certification of ISO9001:2000 qualify system. We have a group of superior experienced after-sales service members to guarantee the continuous smooth running of our products.
Maximum our customers' satisfaction is what we are keep on closing. Over the past decades, Hongji people have been innovating and transcending himself continuously to develop and promote the brand with quality and service. We, Hongji people, are forging ahead for first-class brand with innovative spirit and do our best to contribute to the world industry.
Our Service
Pre-sale:
1. Depending on customer's requirement, we insist on "making profit at lowest investment" and choose best machine.
2. Design the most reasonable project and maximum customers' profit.
3.Provide engineers to scene to plan work site.
4. Provide equipment list,design drawing, construction drawing, equipment install drawing.
During-sale:
1.Depend on scene, draw design drawing , construction drawing, equipment install drawing. 2.Manufacturing products strictly on contract while customer constructing.
3.Testing ex-work, delivery, customer acceptance.
After-sale:
1.Provide engineer to wok site guiding install.
2.Test equipment after installation, training operators.
3.Visit work site regularly
Please do not hesitate to contact with us for more details!
Q: What can your ball mill do?
A: Our ball mill used for wet or dry type stone powder grinding. feeding size <25mm, discharging size 200 mesh-325 mesh
Q: I need silica grinding mill, do you have?
A: Yes, we have designed and export many this kind mills, for quartz grinding, 40-100 mesh, Fe free.
Q:How I adjust the discharging mesh size?
A: 1, Change the ball ratio of big size and small size. 2 Adjust the rotation speed
We also supply all kinds of crushing equipments, vibrating feeder, vibrating screen, rod mil, stone washer, belt conveyor, powder concentrator, mineral mixer, screw classifier, flotation machine, concentration, magnetic ore separator, elevator, shaving table, spire chute, blet vacuum filter, rotary kiln, rotary dryer, DMC pulse bag dus catcher,ect. If you have any interest in our products, kindly contact with us by the upper information with no hesitation.
Hongji Wet Grinding ball mill prices
