Specifications
vertical combination crusher-Hongji1.capacity:10-200T/H
2.CE ,ISO9001:2008
3. factory direct sale
4.40 years experience

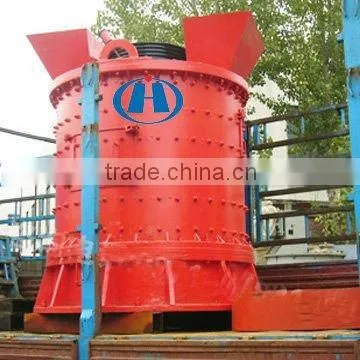

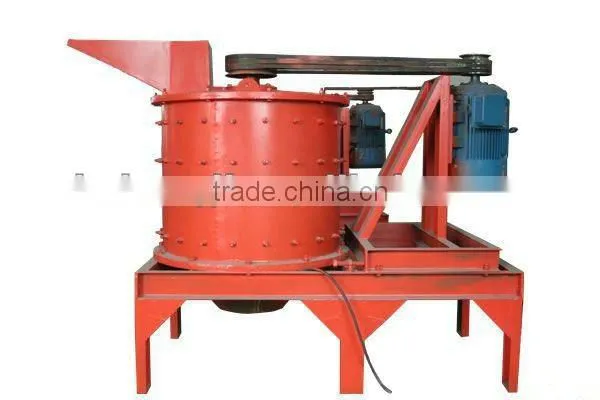

1.Introduction of Vertical Combination Crusher:
Vertical Combination Crusher is developed by combining the pre-breakage technology of domestic and foreign countries, and optimizing the key structure parameters. It is designated mainly for grinding of cement raw materials (limestone) and cement clinker in cement factories. Thus, a kind of ideal secondary breakage equipment is provided for technology innovation or new production line building in cement factories. It can be used for grinding middle hard ores such as iron ore, aluminum ore, gritstone, gypsum, blast furnace slag, coal gangue, phosphorus ore, and lump coal. Also, it can be used in the field of building materials, mining industry, metallurgy, coal and chemical industry.
2.The features of Vertical Combination Crusher:
1.The production capacity is big.
2.The crushing ration is high and the power consumption is low.
3.The sealability is good and machine running is stable.
4.The maintenance is simple.

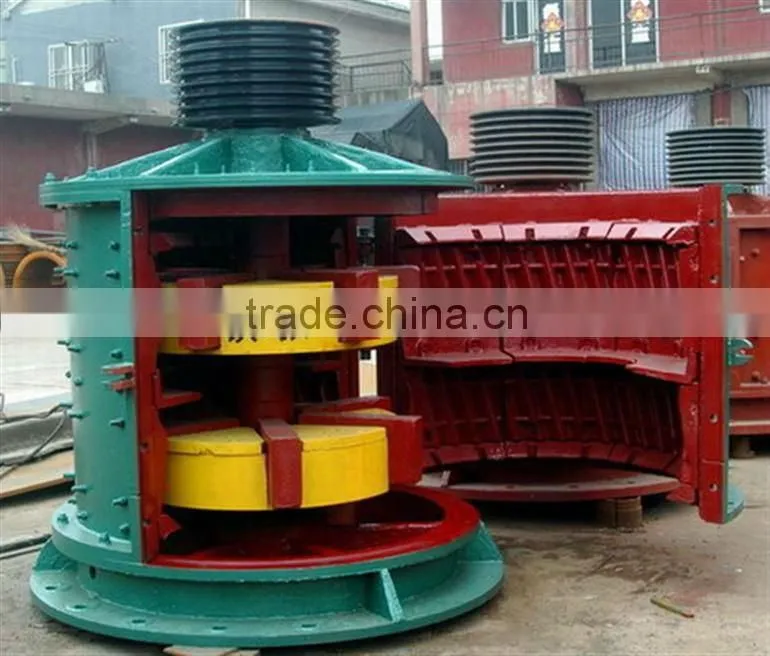

Vertical Combination Crusher’s crushing ratio is big. And the biggest crushing ratio can get to the discharging granularity and can be adjusted freely. The plate hammer and lining board wearing cannot have effect on the crushing ratio. There is no sieve bar. The machine cannot be blocked when it crushes the materiel with high humidity and mud percetage. It adopts elastic adjustment structure. If the material which cannot be broken gets into the machine, it can be discharged automatically, so the machine cannot be damaged. The bearing is fixed horizontally and its usage life is long. This machine’s rotor is special. The rotor body hardly wear when the machine crushes the materiel.
Our vertical combination crusher are suitable for primary and secondary crushing, with low power consumption and easy maintenance. Every feature of these machines has been carefully designed to provide superior quality and performance.
3.Application of the Vertical compound/combination cusher:
This series of HONGJI equipment is widely used for crushing various materials, such as stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, limestone, quartzite and alloys. These crushers are recommended by leading consultants in the crushing field and are used by hundreds of customers all over the world.
|
Model |
Feeding size |
Output size |
Capacity |
Rotating speed of main shaft |
Power |
Overall size |
| PFL-800 | <100 | <3-5 60-90% | 10-20 | 934 | 22 | 2100×1200×1700 |
| PFL-1000 | <120 | <3-5 60-90% | 20-40 | 769 | 37 | 2600×1400×1900 |
| PFL-1250 | <150 | <3-5 60-90% | 40-70 | 530 | 75 | 2800×1600×1000 |
| PFL-1500 | <180 | <3-5 60-90% | 70-100 | 495 | 132 | 3100×1900×2200 |
| PFL-1750 | <200 | <3-5 60-90% | 130-190 | 424 | 160 | 3710×2360×2390 |
| PFL-2000 | <220 | <3-5 60-90% | 100-160 | 370 | 185 | 4100×2660×2620 |
Hennan Hongji Mine Machinery Co., Ltd. is the company which is specilized in manufaturing verical combination crusher,vibrating screen, Cone Crusher, big and medium crushing equipment, sand making equipment,stone production line,mineral magnetic/flotation separating production line, rotary kiln, ball mill and also can accept product line or turnkey project.
If you have any requirement or questions, please don't hesitate to contact Ms Winnie Lee.Your desire, we design.
