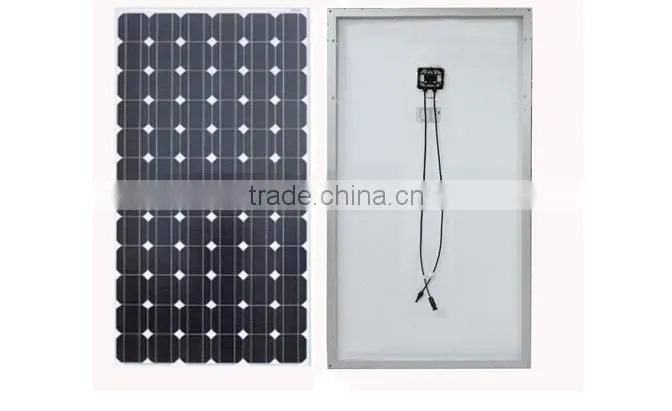

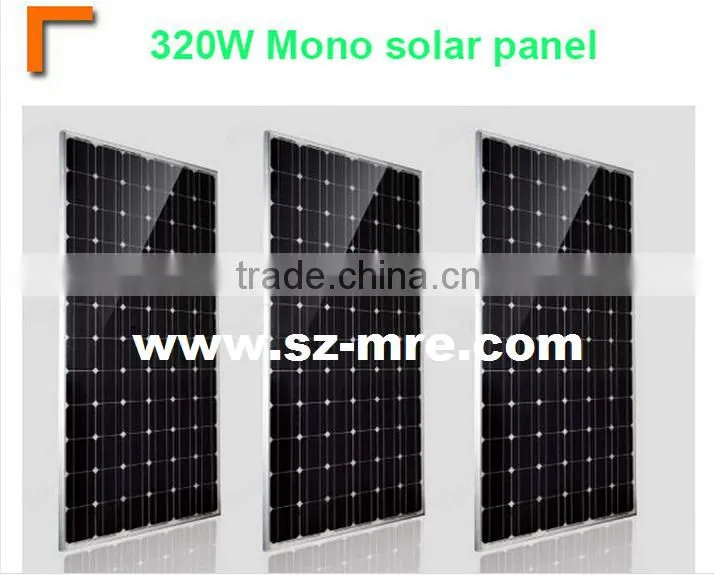

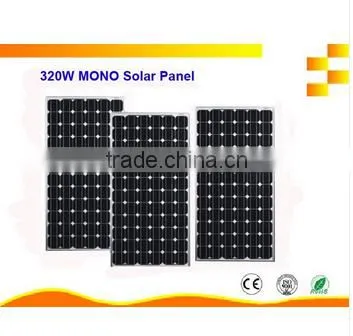

Good Quality and High Efficiency 320W Mono Solar Panel A Grade Solar Cells Quality Choice

US$ 0.5 - 0.6 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MRE

Model Number:

MRE-320W

Foshan City Lvguang Optoelectronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan Guangzhou or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MRE

Model Number MRE-320W

Material Monocrystalline Silicon

Size 1640*992*40mm

Number of Cells 72(6*12)pcs

Max. Power 320W

Features:

Ø High reliability with guaranteed +/-3% output power tolerance

Ø The modules can withstand high wind-pressure, snow loads and extreme temperatures

Ø Bypass diodes to minimize power loss with shading

Ø High and stable conversion efficiency to ensure the highest quality

Quality and Safety:

Ø Industry leading power output warranty, 25 years spanlife and 10 years power warranty

Ø ISO9001:2008 (Quality Management system) certified factory

Ø Product Quality warranty & products Liability Insurance to guarantee and user' benefits

Materials of solar panel:

Solar cell------conversion efficency of solar cells: 24%-17%, and ensures high performance and more power under same condition

Front glass------3.2mm, high transmission, low iron, tempered glass,to enhanced stiffness and impact

resistance

EVA------excellent anti-aging EVA , to enhance the rigidity and stability of solar cells

TPT-------TPT hot seal made of flame resistance.

Flame------is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame

Junction box------Ip65 rated, high quality, with diode protection

Bypass diodes ------to avoid hot-spot effect.

Specification:

Module Type	S/M 320W
Maximum Power at ST(Pmax)	320Wp
Maximum Power Voltage(Vmp)	36V
Maximum Power Current(Imp)	8.88A
Open Circuit Voltage(Voc)	34.9V
Short Circuit Current(Isc)	9.16A
Cell Efficiency(%)	18.1%
Module Efficiency(%)	17.2%
Cell working temperature	48±2℃
Maximum system voltage	1000V(IEC)
Maximum series fuse rating	12A
Power tolerance	+-3%
Temperature coefficients of Pmax	-0.45%/℃
Temperature coefficients of Voc	-0.34%/℃
Temperature coefficients of Isc	0.05%/℃
Weight(kg)	23.2
Number of cell(pcs)	72(6*12)

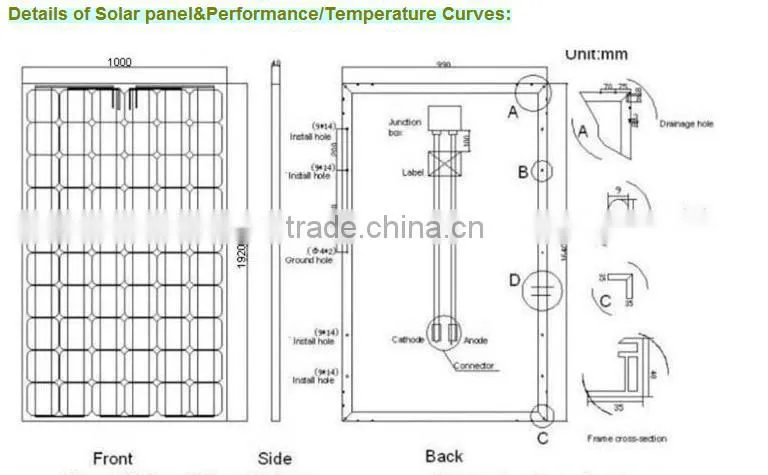

Dimensions(mm)	192099240/45
