High Efficiency and Good Quality 100w Semi Fexible Solar Panel, Solar Power System for System Quality Choice

US$ 0.65 - 0.85 MOQ: 5 Watts

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MRE

Model Number:

SM-H100W

Foshan City Lvguang Optoelectronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan Guangzhou or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MRE

Model Number SM-H100W

Material Monocrystalline Silicon

Size 1220*610*3mm, 1220*610*3mm

Number of Cells 36pcs

Max. Power 100W

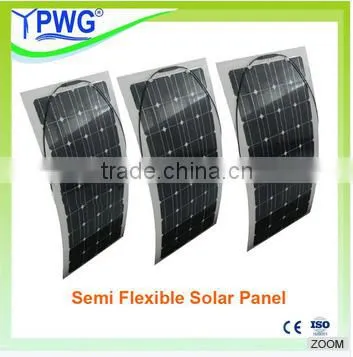

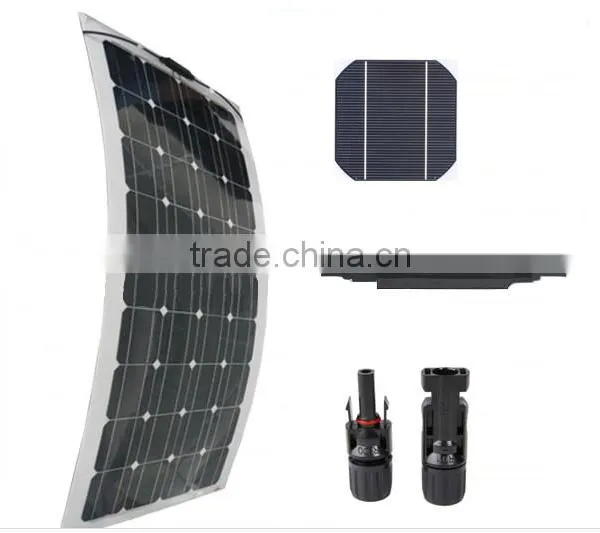

High-Tech100w semi fexible solar panel

Features

1) High reliability with guaranteed +/-3% output power tolerance

2)The modules can withstand high wind-pressure, snow loads and extreme temperatures

3) Bypass diodes to minimize power loss with shading

4) High and stable conversion efficiency to ensure the highest quality

Warranty

10 years 90% output, 25 years 80% output warranty.

10 years workmanship and material warranty.

Certificate

1)ISO9001:2008

2)EN-61730

3)IEC61730-1:2013 IEC61730-2:2012

Our strict and careful quality management gives clients great confidence. For years, It‘s

products have been exported to Europe, America,Middle East and Asia, Africa, North America

etc. We set up exclusive dealers in Multi-country and vigorously expand the UPS market.

Specification

Model	SM-H100W
Maximum Power at ST(Pmax)W	100Wp
Maximum Power Voltage(Vmp)V	18.5V
Maximum Power Current(Imp)A	5.4A
Open Circuit Voltage(Voc)V	21.5V
Short Circuit Current(Isc)A	5.85A
Cell Efficiency(%)	19.1%
Module Efficiency(%)	17.6%
Operating Temperature℃	-40℃ to +85℃
Maximum system voltage	1000V(IEC)DC
Power tolerance	+-3%
Temperature coefficients of Pmax	-0.45%/℃
Temperature coefficients of Voc	-0.27%/℃
Temperature coefficients of Isc	0.05%/℃
Weight(kg)	1.4
Number of cell(pcs)	4*9
Dimensions(mm)	12206103mm
