2-144 core stranded loose tube fiber cable with aluminum tape GYTA
Description
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation:
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
Application
Duct/Aerial
Technical Parametes
|
Fiber count |
Tubes |
Fillers |
Cable dia. (mm) |
Weight kg/km |
Tensile strength Long/short term (N) |
Crush resistance Long/short term |
Bending radius Static/dynamic |
2~6 |
1 |
4 |
9.2 |
80 |
800/1500 |
300/1000 |
10D/20D |
8~12 |
2 |
3 |
9.2 |
80 |
800/1500 |
300/1000 |
10D/20D |
14~18 |
3 |
2 |
9.2 |
80 |
800/1500 |
300/1000 |
10D/20D |
20~24 |
4 |
1 |
9.2 |
80 |
800/1500 |
300/1000 |
10D/20D |
26~30 |
5 |
0 |
9.2 |
80 |
800/1500 |
300/1000 |
10D/20D |
32~36 |
6 |
0 |
9.7 |
97 |
1000/3000 |
300/1000 |
10D/20D |
38~48 |
4 |
1 |
10.5 |
109 |
1090/3000 |
300/1000 |
10D/20D |
50~60 |
5 |
0 |
10.5 |
109 |
1090/3000 |
300/1000 |
10D/20D |
62~72 |
6 |
0 |
11.5 |
126 |
1260/3000 |
300/1000 |
10D/20D |
74~84 |
7 |
1 |
13.2 |
153 |
1530/3000 |
300/1000 |
10D/20D |
86~96 |
8 |
0 |
13.2 |
153 |
1530/3000 |
300/1000 |
10D/20D |
98~108 |
9 |
1 |
14.6 |
182 |
1820/3000 |
300/1000 |
10D/20D |
110~120 |
10 |
0 |
14.6 |
182 |
1820/3000 |
300/1000 |
10D/20D |
122~132 |
11 |
1 |
16.5 |
221 |
2110/3000 |
300/1000 |
10D/20D |
134~144 |
12 |
0 |
16.5 |
221 |
2110/3000 |
300/1000 |
10D/20D |
Fiber Information
Optic characteristics: | ||||
|
Fiber sort |
Multimode |
G.651 |
A1a:50/125 |
Graded-index fiber |
A1b:62.5/125 | ||||
|
Singlemode |
G.652 (A, B, C) |
B1.1: Conventional fiber |
||
G.652D |
B2: Zero dispersion shifted |
|||
G.655 |
B1.2: Cut-off wavelength shifted |
|||
G.657 (A1, A2, A3) |
B4: Main technical data for positive dispersion shifted single-mode fiber |
|||

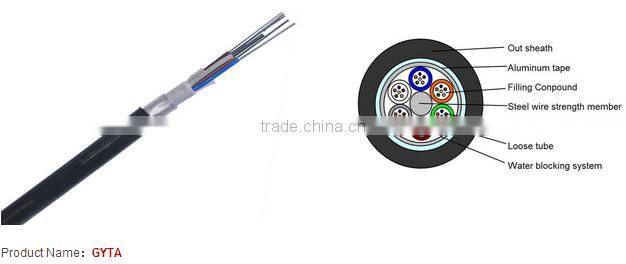

Cable Structure
Our service
1. Order Information:
Trade term: EXW/FOB/CIF
Delivery Time: 3-5 working days time. 15-25 working days mass order.
2. Trade Terms:
Payment term: T/T 30% Deposit after order confirmed, later delivery pay the 70% (remaining balance) after goods ready before shipping.
Sample: Be ready in 3~10 days once payment received.
3.Our services:
For all your inqires about our product, we will reply to you within 24 ours.
We offer OEM and ODM services.
