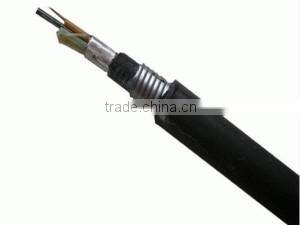

24~144 core outdoor direct-burial fiber optic cable gyta 53
Introduction
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Application
1. Adopted to Outdoor Distribution
2. Suitable for Aerial and Direct Burial method
3. .Long distance and local area network communication
Features
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. Loose tube filling compound
6. 100% cable core filling
7. APL moisture barrier
8. PSP enhancing moisture-proof
9. Water-blocking material
Technical Data
|
Fiber count |
Out sheath diameter |
Weight |
Minimum allowable Tensile Strength (N) |
Minimum allowable Crush Load(N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
(mm) |
(kg) |
Shot term |
Long term |
Short term |
Long term |
Short term |
Long term |
℃ |
|
24 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
36 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
42 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
48 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
60 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
72 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
96 |
16.5 |
275 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
144 |
19.6 |
345 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |

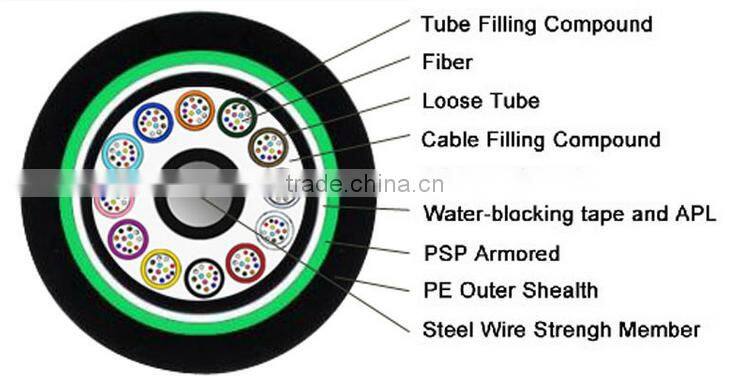

Cable Structure
Sichuan Yuantong Communication Co.,Ltd was established in 2010, which covers an area of 4000 square
meters in the land of Abundance---Chengdu, Sichuan with US$500 million of registered capital.
Our company is a high-tech company putting R&D, production and sales into integrated for the fiber optic
cables and related accessories that are widely used in communication, electric power and other industries.
Yuantong owns a team with professional and technical skill, and has a great deal of experience in production
and sales. "Quality First" is the guideline of us.
Yuantong already has a significant partnership with China Telecom, China Mobile and China Unicom. Also we
build good relationship with customers from South America, Middle East and Southeast Asia, praised by the
majority of the users all around the world.
WHY CHOOSE YUANTONG COMMUNICATION?
Firstly, we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material. In this
way, we can provide you with high-end product, competitive price and superb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading
terms and customer clearance documents. In this way, we will make your import process very smooth and
pleasant.
Thirdly, your every inquiry will be took seriously and replied immediatedly within 24 hours. If the inquiry is
complicated, we will reply you the second day.
Last but not the least, we have gained Alibaba trade assurance, so there is no worry about quality,
Payment:
Massive order: T/T, T/T&LC, both are acceptable.
Small order: T/T, Credit-card, west-union are acceptable.
Shipping & Delivery
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 year's after-sale service. If there is no man-made problem, we will replace or repair for you
freely. Even after 1 year, if any problem happens, our team will do our best to help you figure it out. So you do
not neet to worry about it.
