6" Nod165 Nod190 Eccentric Overburden Drilling Equipment

FOB Price

US$ 100 - 500 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	new diamond
Model Number	6" eccentric overburden equipment	Type	Drill Bit
Machine Type	Drilling Tool	Certification	Other, ISO9001
Material	Carbide	Processing Type	Forging
Use	Ore Mining

6" eccentric overburden equipment:
1. 10 years manufacturing experience
2. Certificate: ISO9001:2008
3. Material: Carbi

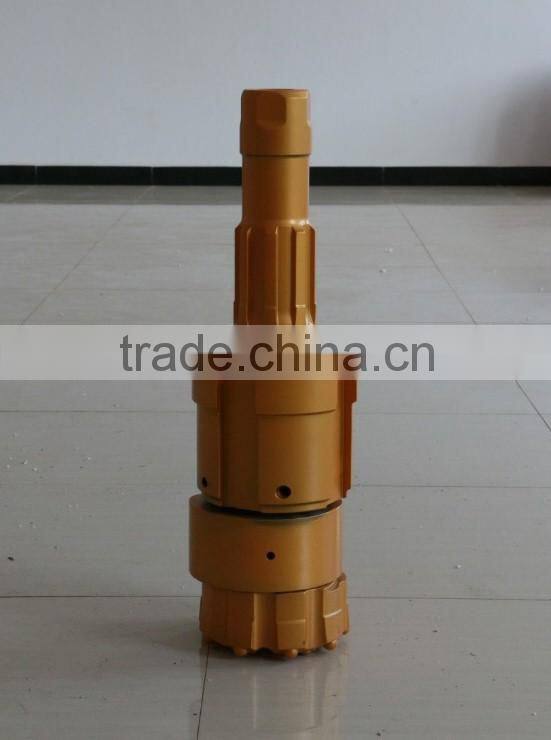

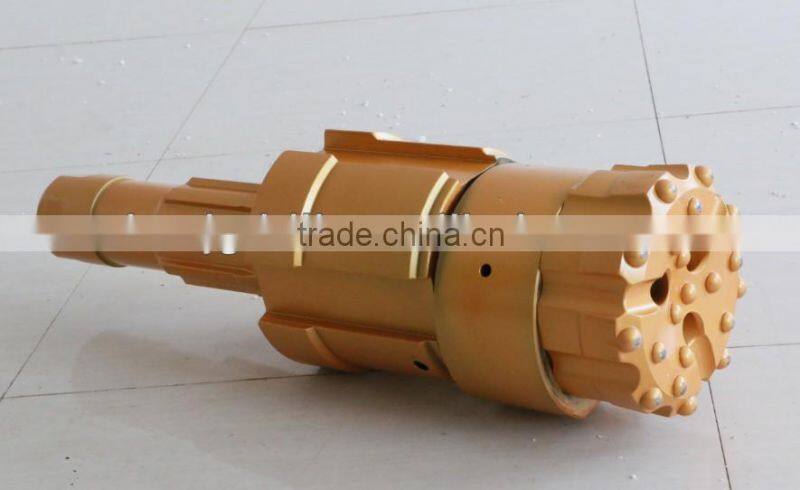

6" nod165 nod190 eccentric overburden drilling equipment :

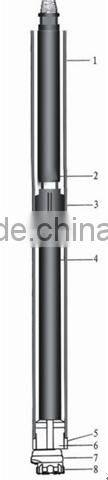

1	Casing Tube	Maximum O.D.: 195mm Minimum O.D.: 182.6mm
2	Drill Pipe	Connection Thread: API3 ¹/₂”Reg O.D.: 114mm Wrench Flats: 95mm
3	Guide Sleeve	Effective length: 225mm
4	DTH-Hammer	ND65, Cop64, NSD6, DHD360, NQL60

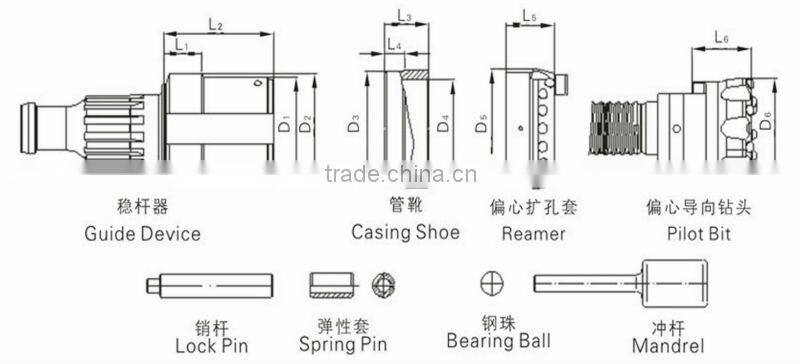

5	Casing Shoe	L3=95mm L4=55mm D3=181.5mm D4=166mm
6	Guide Device	L1=61.5mm L2=181.5mm D1=165mm D2=178mm
7	Reamer	D5=164mm L5=79.5mm Reaming Diameter: 211mm Reamer has 7*14mm buttons
8	Pilot Bit	D6=165.8mm L6=82.5mm Gauge button: 816mm Front button:816mm
