Specifications
1.simple structure, polished2.high capacity, low consumption
3.Multi ways for heating the dryer
4.with ISO9001
2013 hot selling rotary dryer used in construction from China
Rotary drier is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials etc

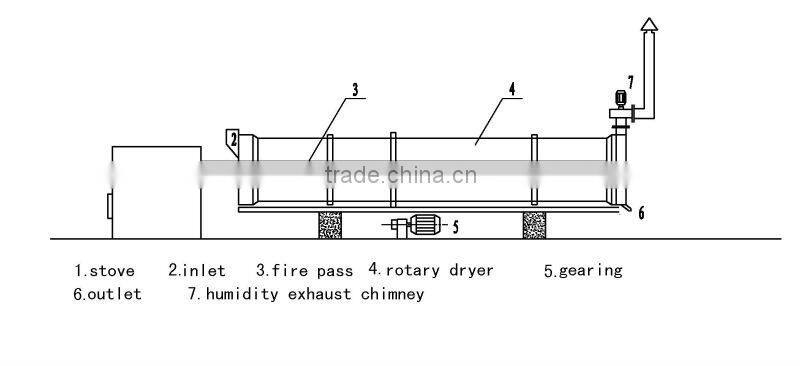

Rotary drier mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc. Its principle of
operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture
materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed.
Rotary drier is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials
industries. Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation,
high output and so on.
Rotary drier is used for drying materials with a certain humidity or granularityin milling of ores, building materials,
metallurgy and chemical industry.
Rotary drier has a strong adaptability of materials and it can dry various materials. The operation is very simple and
liable. For this reason, it is used widely.
Main technical parameter of HGT-series rotary dryer
Model |
HGT-1000 x 10 |
HGT-1200 x 12 |
HGT-1500 x 14 |
Power |
4kw |
7.5kw |
11kw |
Capacity |
1~3ton/h |
5~7ton/h |
8~10ton/h |
Diameter of feed materials |
0-200*240 mm |
0-200*240 mm |
0-200*240 mm |
Working Temperature |
stove 300°C |
stove 300°C |
300°C |
Consumption of wood waste |
20-30kg/h |
20-30 kg/h |
40-50 kg/h |
Overall size |
Φ1m, length 10 m |
Φ1.2m,length 15 m |
Φ2.2m, length 28 m |
Weight |
6000kg |
10000 kg |
18000 kg |
